Product details
Wilwood Engineering of Camarillo, California dates to Bill Wood’s founding of the company in 1977. It designs and builds disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used in motorsport, street and specialized brake installations. BP-22 brake pads in the .49-inch Forged/Billet Dynalite configuration supply four replacement pads. Choose each component to match the complete system’s braking requirements.
Technical Details
- Manufacturer part number: 150-22-7112K
- Pad/shoe profile: 7112
- Catalog pad volume: 2.1 cubic inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Listed Wilwood calipers: Forged Dynalite; Forged Dynalite Internal; Forged Dynalite Internal-Dust Seal; Forged Dynalite-M; Billet Dynalite
- Package quantity: 4 individual pads
- Compound: BP-22

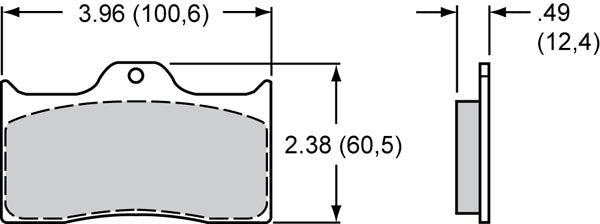

- Catalog thickness: .49 inch
- Catalog pad area: 6.36 square inches

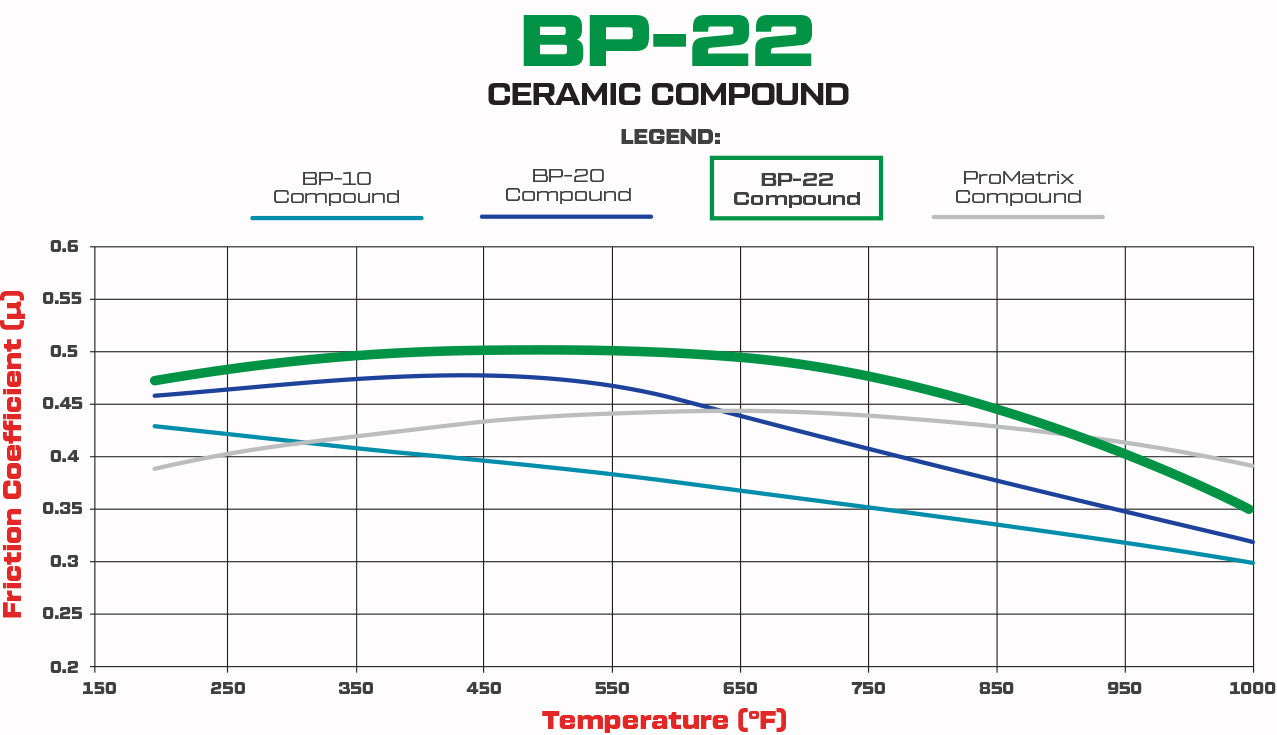

BP-22 uses a ceramic-based, medium-friction formulation aimed at smooth engagement with reduced dust and noise. Wilwood lists street performance, autocross, street/strip and consumer-grade towing among its uses. Select it with an appropriate iron, steel or stainless-steel rotor; the formula is not a substitute for checking caliper geometry.
Fitment & Compatibility
This outline suits the specified forged and billet Dynalite calipers, including the internal and -M versions listed here. Check the actual retention arrangement rather than assuming all Dynalite generations interchange.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
PMB Performance brings over 20 years of parts and fitment experience. Contact our team with the caliper details and rotor specification to confirm the right pad.
