Product details
Wilwood Engineering of Camarillo, California dates to Bill Wood’s founding of the company in 1977. It designs and builds disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used in motorsport, street and specialized brake installations. BP-22 brake pads in the .49-inch Dynalite Single/Dynapro Single configuration supply four replacement pads. Component selection must account for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 150-22-6812K
- Pad/shoe profile: 6812
- Compound: BP-22
- Catalog pad area: 3 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads
- Catalog thickness: .49 inch
- Catalog pad volume: 1.1 cubic inches
- Listed Wilwood calipers: Dynalite Single; Dynalite Single III; Dynalite Single Floater; Dynapro Single

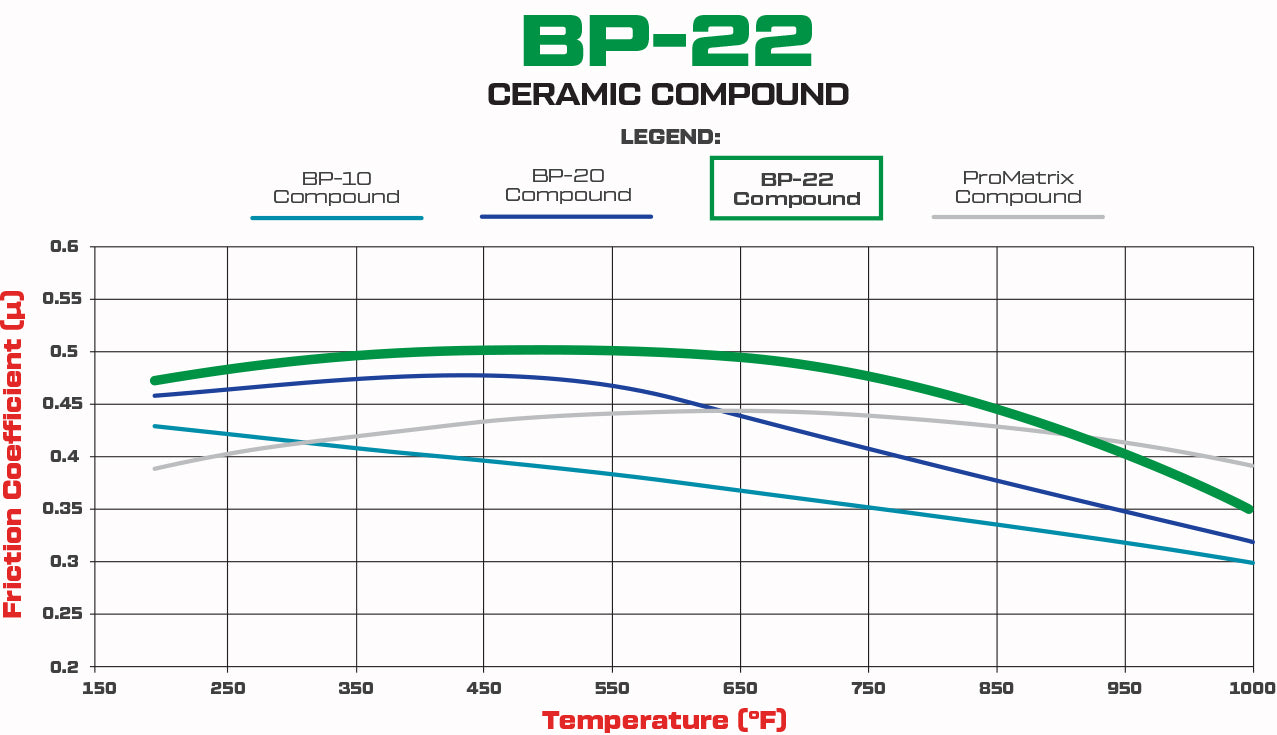

BP-22 uses a ceramic-based, medium-friction formulation aimed at smooth engagement with reduced dust and noise. Wilwood lists street performance, autocross, street/strip and consumer-grade towing among its uses. Select it with an appropriate iron, steel or stainless-steel rotor; the formula is not a substitute for checking caliper geometry.
Fitment & Compatibility
Listed calipers include Dynalite Single, Single III, Single Floater and Dynapro Single. Compare the distinctive three-hole outline with the installed pad; a full-size Dynalite pad is a different shape.

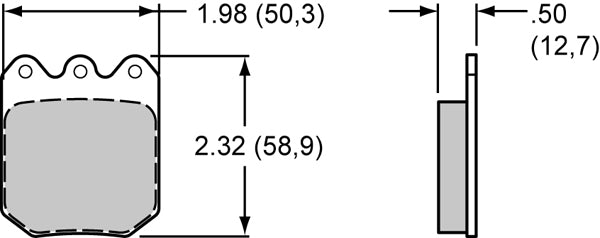

The general outline drawing marks .50 inch, while the exact part specification lists .49 inch. Confirm the actual caliper clearance rather than treating the illustration as a precision tolerance drawing.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
Share the actual caliper and rotor information with PMB Performance for fitment assistance backed by more than 20 years of experience.
