Product details
Wilwood Engineering of Camarillo, California dates to Bill Wood’s founding of the company in 1977. It designs and builds disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used in motorsport, street and specialized brake installations. BP-22 brake pads in the 0.65-inch XRS4R/XRS6R configuration supply four replacement pads. Select individual components to meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 150-22-10416K

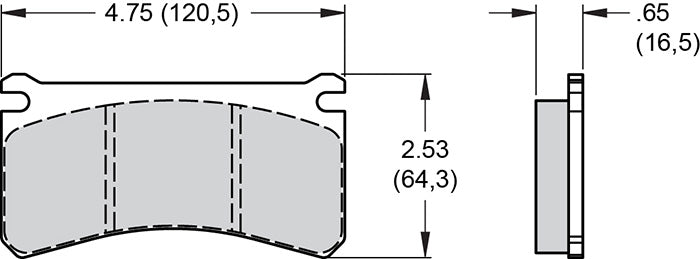

- Pad/shoe profile: 10416
- Catalog pad area: 8.2 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads
- Catalog thickness: 0.65 inch
- Catalog pad volume: 3.8 cubic inches
- Listed Wilwood calipers: Forged XRS4R Radial Mount; Forged XRS6R Radial Mount
- Compound: BP-22

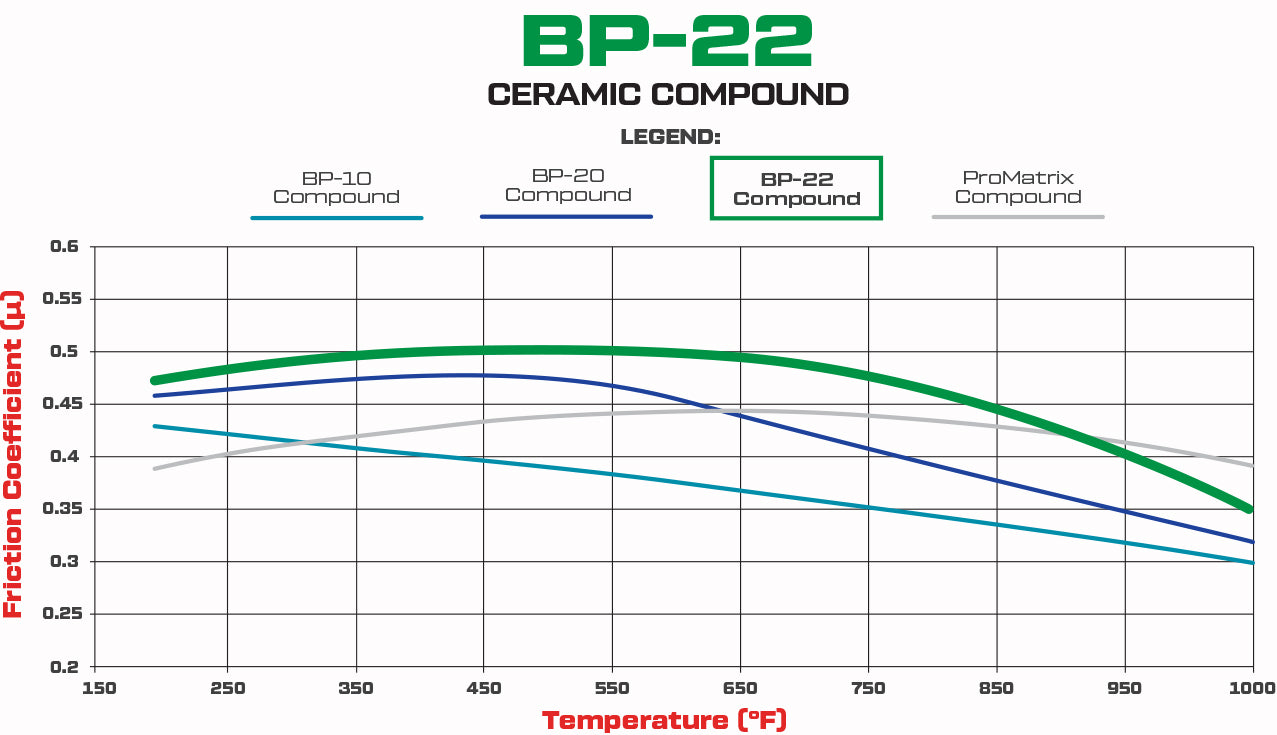

BP-22 uses a ceramic-based, medium-friction formulation aimed at smooth engagement with reduced dust and noise. Wilwood lists street performance, autocross, street/strip and consumer-grade towing among its uses. Select it with an appropriate iron, steel or stainless-steel rotor; the formula is not a substitute for checking caliper geometry.
Fitment & Compatibility
The XRS4R and XRS6R radial-mount calipers use this 0.65-inch profile. Do not substitute the thicker XRZ pad simply because its outline looks similar.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
