Product details
From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street and specialized uses. Bill Wood established the company in 1977; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. BP-22 brake pads in the .755-inch TX4R/TX6R and TX6-DM configuration supply four replacement pads. Each part must be selected to work with the complete brake system and its requirements.
Technical Details
- Manufacturer part number: 150-22-10120K

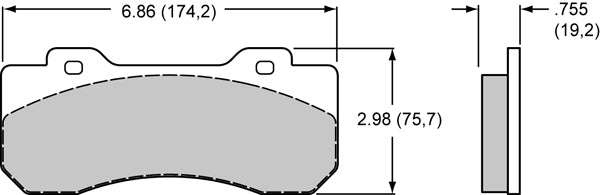

- Pad/shoe profile: 10120
- Compound: BP-22
- Catalog pad area: 12.69 square inches
- Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
- Package quantity: 4 individual pads
- Catalog thickness: .755 inch
- Catalog pad volume: 6.81 cubic inches
- Listed Wilwood calipers: TX4R Forged Radial Mount; TX6-DM Forged Lug Mount; TX6R Forged Radial Mount

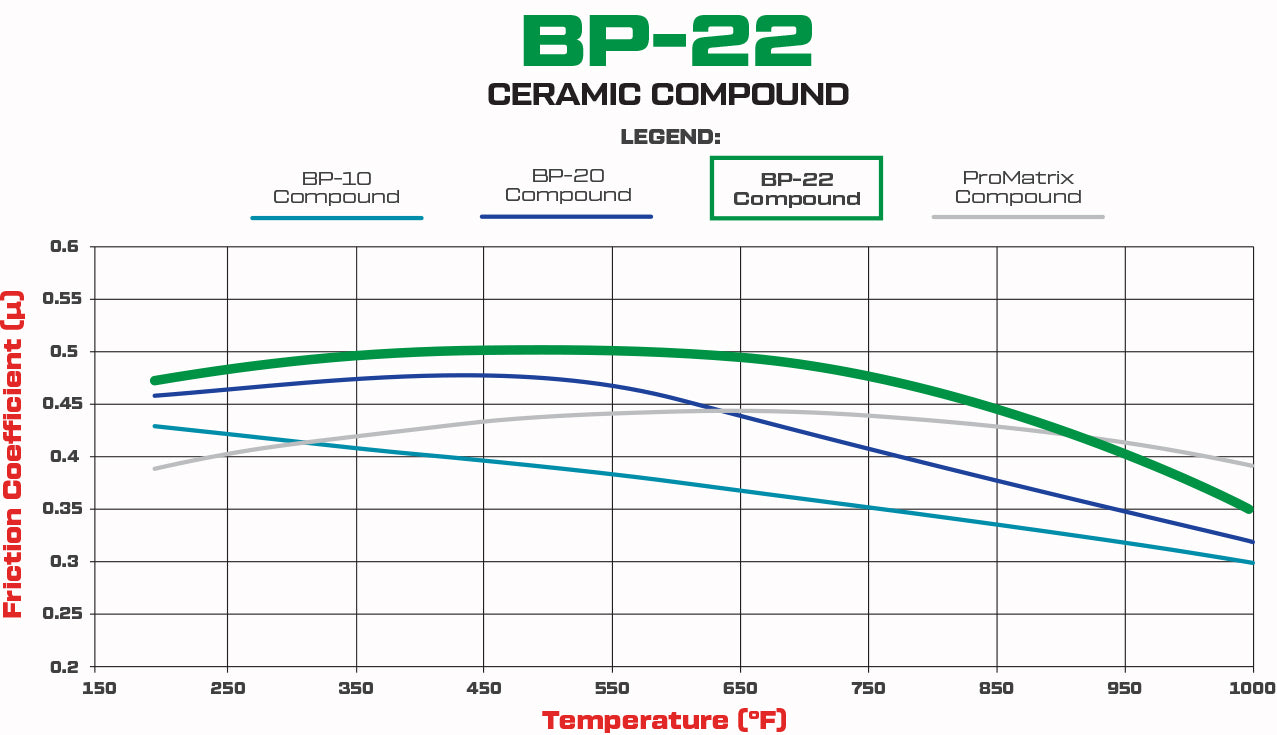

BP-22 uses a ceramic-based, medium-friction formulation aimed at smooth engagement with reduced dust and noise. Wilwood lists street performance, autocross, street/strip and consumer-grade towing among its uses. Select it with an appropriate iron, steel or stainless-steel rotor; the formula is not a substitute for checking caliper geometry.
Fitment & Compatibility
Match the TX4R or TX6R radial-mount caliper, or TX6-DM lug-mount version, to this broad pad outline. The mounting arrangement and installed rotor width still determine the correct replacement.
Manufacturer Reference
Wilwood pad dimensions, compound and caliper information
PMB Performance brings over 20 years of parts and fitment experience. Contact our team with the caliper details and rotor specification to confirm the right pad.
