Wilwood Dynapro Radial and Narrow Dynalite BP20 Pads, 0.60 Inch

This BP20 set combines a 0.60-inch pad thickness with the plate used by the listed Dynapro Radial and Narrow Dynalite calipers. The same general family names appear on other pad sets, so match the exact caliper variant rather than choosing solely by Dynapro or Dynalite branding. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form Wilwood Engineering’s disc brake range. Bill Wood founded the Camarillo, California company in 1977; it designs and manufactures systems for motorsport, street-performance and specialized applications. Matching the component to the rest of the brake package is fundamental to selection.

Technical Details

• Manufacturer part number: 150-20-7816K
• Package quantity: 4 pads
• Pad thickness: .60 inch
• Published pad area: 6.36 square inches
• Published pad volume: 3 cubic inches
• Rotor compatibility: Steel, Stainless Steel, Iron
• Bedding status: not pre-bedded; follow Wilwood bedding procedure
• Pad profile: 7816
• Friction compound: BP20

Fitment & Compatibility

Wilwood’s compatible-caliper list names Billet Narrow Dynalite, Billet Narrow Dynalite Radial Mount, Cast Narrow Dynalite, Dynapro Dust Seal Radial Mount, Dynapro Radial Mount, Dynapro-13 Dust Seal Radial Mount, Dynapro-13 Radial Mount, Dynapro-ST Radial Mount, Forged Narrow Dynalite, Narrow Dynapro Lug Mount. Select this profile only after checking the installed caliper, pad abutments and retaining hardware. New-pad thickness must leave the working clearance required by that brake assembly.

Wilwood places BP20 in its medium-temperature, medium-friction group. The compound permits street use while supporting track days, autocross, drag racing and moderate dirt or pavement racing. It is suited to iron, steel and stainless-steel rotors, with smooth initial engagement and increasing friction under heat.

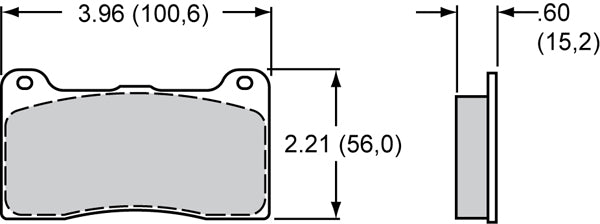

Reference: Wilwood product specifications and compound guidance. Manufacturer profile illustration.

PMB Performance has worked with brake components for more than 20 years. Contact us with the installed caliper and rotor details when the correct replacement is unclear.
