Product details
The bridge-bolt pad profile distinguishes this 0.49-inch BP20 set for the listed Dynapro, Dynalite, XRD and UTV caliper variants. Compatibility is model-specific, including only the named lug-mount, narrow, side-inlet and radial designs that accept this plate. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and related components. Bill Wood founded the company in 1977. The range spans motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines that must be chosen to suit the complete system.
Technical Details
- Manufacturer part number: 150-20-7812K
- Friction compound: BP20
- Package quantity: 4 pads
- Pad thickness: .49 inch
- Published pad area: 6.36 square inches
- Published pad volume: 2.1 cubic inches
- Rotor compatibility: Steel, Stainless Steel, Iron
- Bedding status: not pre-bedded; follow Wilwood bedding procedure
- Pad profile: 7812

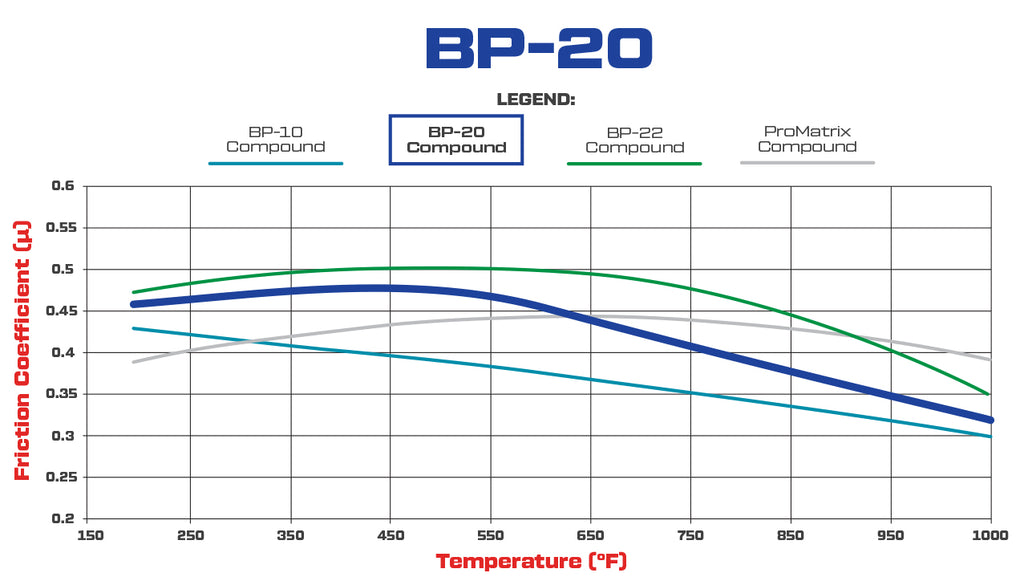

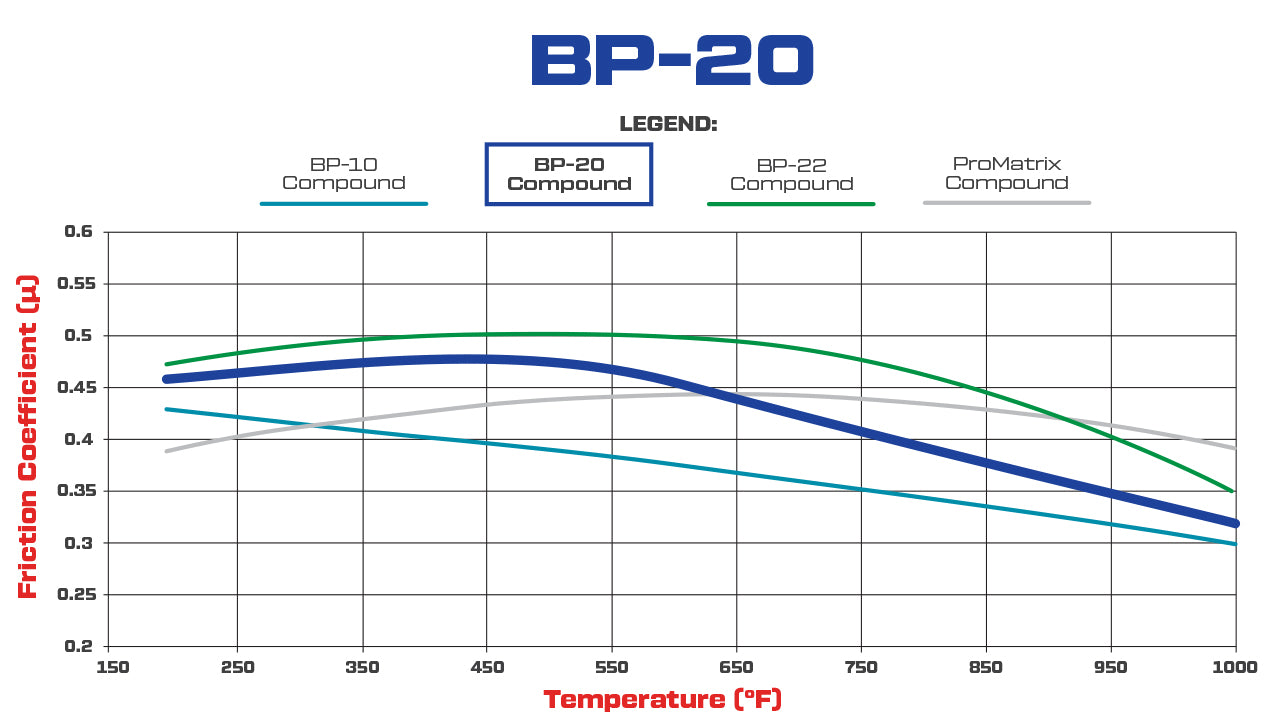

Choosing BP20 brings a wider temperature window than BP10 and medium-friction braking for street/track use. Recommended roles include autocross, drag events and medium-braking dirt or pavement competition. Rotor compatibility covers steel, stainless steel and iron; evaluate the thermal duty of the complete brake package.
Fitment & Compatibility
Wilwood’s compatible-caliper list names Billet Dynalite - Side Inlet, Dynapro Dust-Boot, Dynapro Lug Mount, Dynapro Lug Mount-ST, Dynapro Narrow, Forged DPHA, Forged XRD Lug Mount, Narrow Dynapro Radial Mount, UTV4, UTV6. Before ordering, compare the removed pad with the profile drawing and check the caliper’s allowed thickness. Confirm both retention geometry and rotor material rather than relying on a similar overall pad outline.

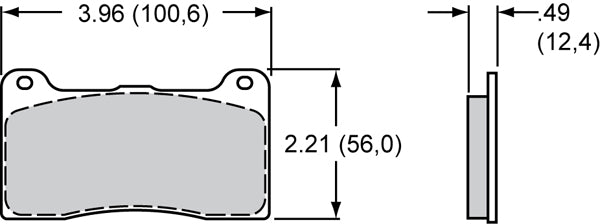

Reference: Wilwood product specifications and compound guidance. Manufacturer profile illustration.
PMB Performance’s 20+ years of brake experience can help with the final compatibility check. A pad outline, new-pad thickness and caliper identification give us the information needed to discuss the application.
