Product details
The Dynapro Six and Forged Dynapro 6A pad form is supplied here in BP20 compound at 0.49 inch thick. It is a friction replacement for the matching six-piston calipers, intended for applications needing more temperature range than the BP10 street baseline. Wilwood Engineering was established by Bill Wood in 1977 in the course of developing its disc brake business. Based in Camarillo, California, it designs and manufactures disc brake systems and components including master cylinders, valves, fittings, brake lines, calipers and brake rotors. Motorsport, street-performance and specialized applications each require a properly matched system.
Technical Details
- Manufacturer part number: 150-20-6712K

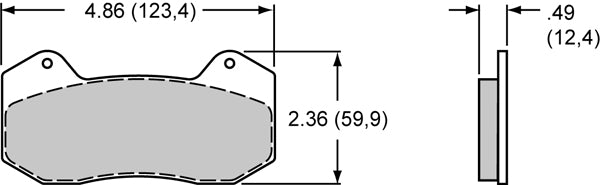

- Pad thickness: .49 inch
- Published pad area: 7.3 square inches
- Published pad volume: 2.4 cubic inches
- Rotor compatibility: Steel, Stainless Steel, Iron
- Bedding status: not pre-bedded; follow Wilwood bedding procedure
- Pad profile: 6712
- Friction compound: BP20
- Package quantity: 4 pads

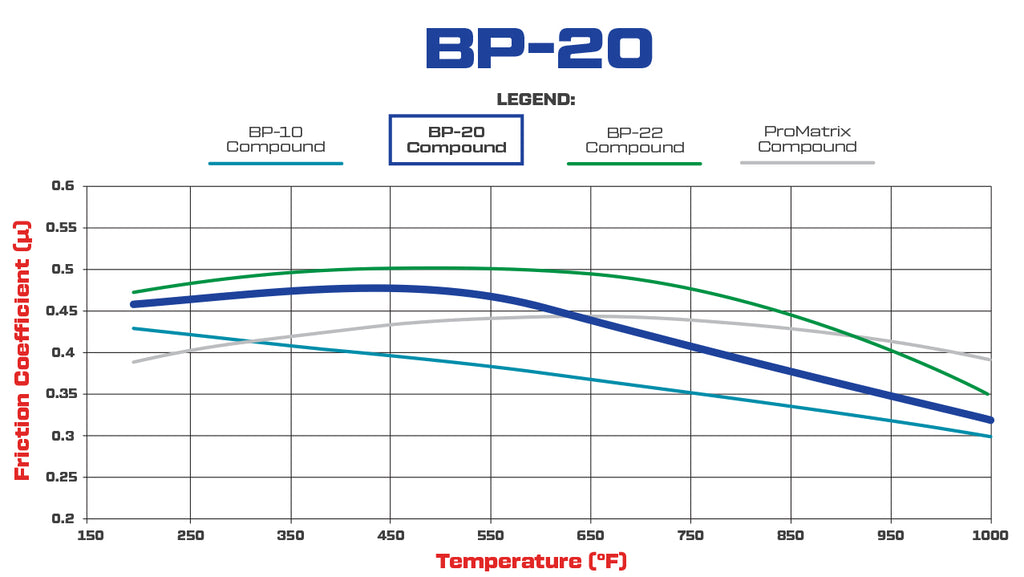

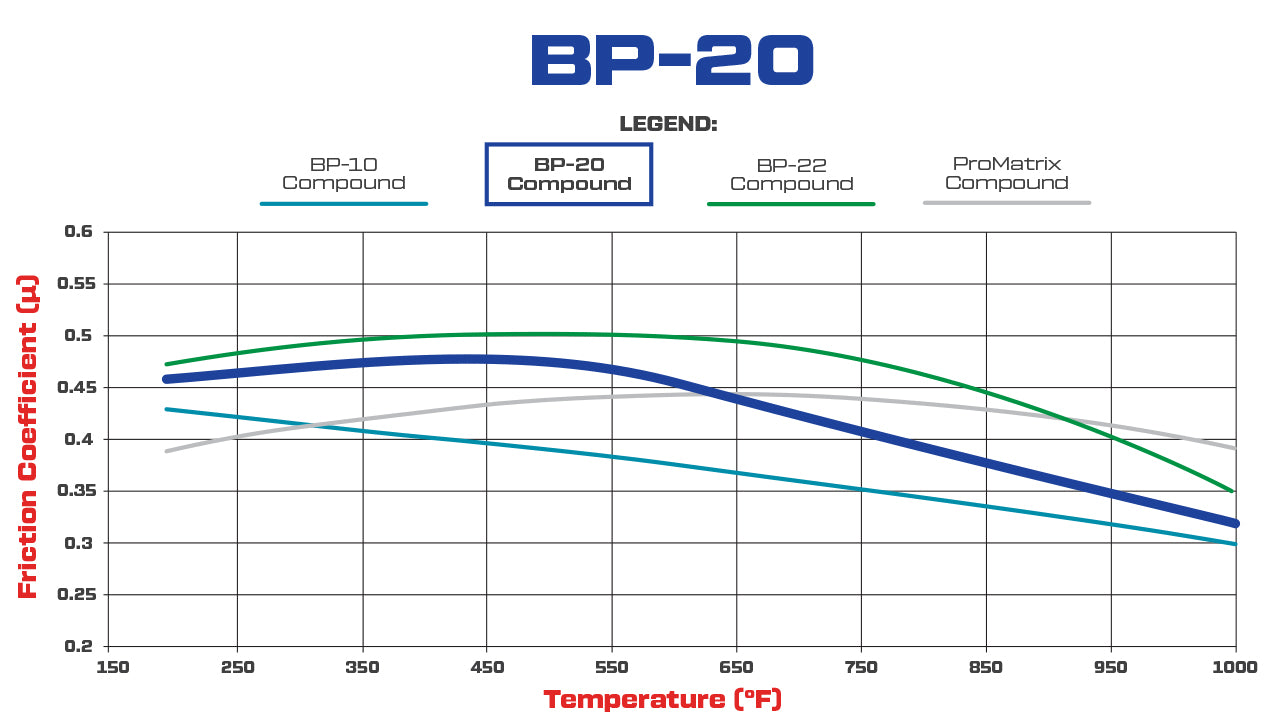

Wilwood places BP20 in its medium-temperature, medium-friction group. The compound permits street use while supporting track days, autocross, drag racing and moderate dirt or pavement racing. It is suited to iron, steel and stainless-steel rotors, with smooth initial engagement and increasing friction under heat.
Fitment & Compatibility
Wilwood’s compatible-caliper list names Dynapro Six Lug Mount, Forged Dynapro 6A Lug Mount. Pad retention, backing-plate dimensions and the available thickness clearance are the critical mechanical checks. Identify the caliper actually fitted to the vehicle, especially where a previous brake conversion has changed the original equipment.
Reference: Wilwood product specifications and compound guidance. Manufacturer profile illustration.
PMB Performance has worked with brake components for more than 20 years. Contact us with the installed caliper and rotor details when the correct replacement is unclear.
