Wilwood SX6R PCM Brake Pads for Vented Carbon-Ceramic Rotors

This PCM pad set pairs the SX6R/D1792 profile with friction intended specifically for vented carbon-ceramic rotors. The D1792 outline is also used in iron-rotor applications, but shared geometry does not make PCM friction suitable for those rotors; the supplied thickness also requires confirmation. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems, with calipers and brake rotors complemented by master cylinders, valves, fittings and brake lines. That range supports specialized applications as well as motorsport and street-performance vehicles; the entire brake system determines component selection.

Technical Details

• Manufacturer part number: 150-14939K
• Published pad thickness: 0.60 inch on the product page; 0.661 inch in Wilwood’s ordering description. Confirm the supplied dimension before ordering.
• Published pad area: 15.9 square inches
• Published pad volume: 7.66 cubic inches
• Rotor compatibility: Vented carbon-ceramic rotors
• Bedding status: not pre-bedded; follow Wilwood bedding procedure
• Pad profile: D1792
• Friction compound: PCM
• Package quantity: 4 pads

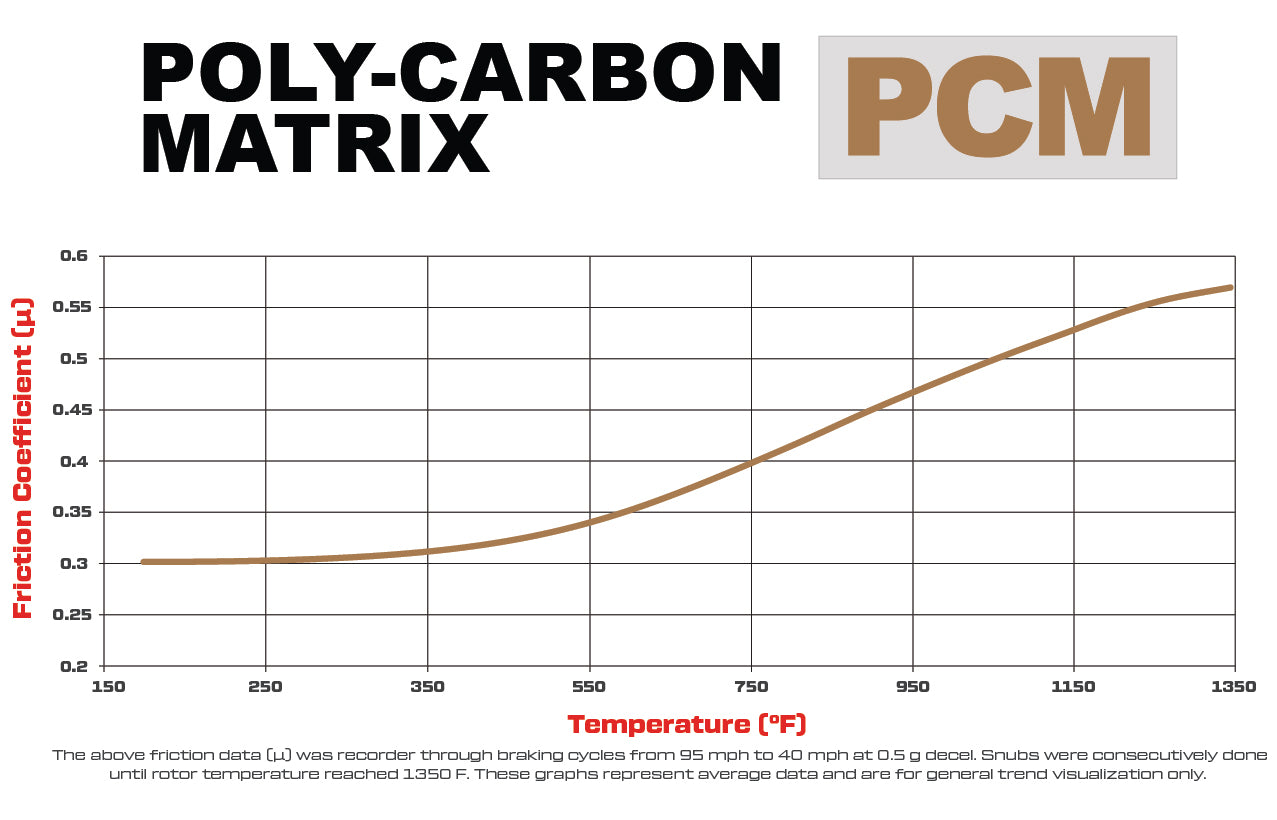

PCM provides medium to medium-high friction for street/strip, drag-racing and track-day categories using vented carbon-ceramic rotors. Wilwood rates dust and noise as low. The rotor-material requirement is fundamental: an iron-rotor vehicle sharing the same pad shape is not automatically compatible.

Fitment & Compatibility

Wilwood’s compatible-caliper list names SX6R Radial Mount. The Mustang rows below identify applications sharing the D1792 pad shape; they do not establish compatibility with PCM friction on the original brake rotors. PCM requires a verified vented carbon-ceramic rotor package. Do not install it on factory iron rotors solely because the vehicle or pad outline matches; confirm the complete SX6R or other brake installation with Wilwood. Thickness also requires confirmation: the exact product page lists 0.60 inch, while Wilwood’s ordering-search description states 0.661 inch. Do not treat those values as interchangeable.

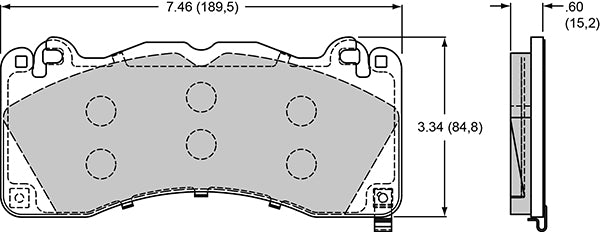

Reference: Wilwood product specifications and compound guidance. Manufacturer profile illustration.

PMB Performance’s 20+ years of brake experience can help with the final compatibility check. A pad outline, new-pad thickness and caliper identification give us the information needed to discuss the application.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
