Wilwood Front SX6R BP10 Pads for Selected Mustang Performance Brakes 2015–2023

These BP10 pads use the D1792 profile for Wilwood SX6R calipers and the listed Mustang performance-brake applications. The Mustang rows include specific GT/Brembo, Bullitt and Mach 1 combinations; an ordinary model-year match is not sufficient. Wilwood Engineering’s design and manufacture of disc brake systems dates from its founding by Bill Wood in 1977. Based in Camarillo, California, it serves street-performance, motorsport and specialized applications through calipers, brake rotors, master cylinders, brake lines, valves and fittings. Each item belongs in a correctly matched complete system.

Technical Details

• Manufacturer part number: 150-14897K
• Package quantity: 4 pads
• Published pad thickness: 0.60 inch on the product page; 0.661 inch in Wilwood’s ordering description. Confirm the supplied dimension before ordering.
• Published pad area: 15.9 square inches
• Published pad volume: 7.66 cubic inches
• Rotor compatibility: Steel, Iron
• Bedding status: not pre-bedded; follow Wilwood bedding procedure
• Pad profile: D1792
• Friction compound: BP10

Fitment & Compatibility

Wilwood’s compatible-caliper list names SX6R Radial Mount. For Wilwood SX6R calipers, verify the D1792 profile and obtain confirmation of the supplied pad thickness. The table below separately lists selected 2015–2023 Mustang GT/Brembo, Bullitt and Mach 1 front applications. Match every brake-option and year restriction, and use BP10 with the specified iron or steel rotor material. Thickness also requires confirmation: the exact product page lists 0.60 inch, while Wilwood’s ordering-search description states 0.661 inch. Do not treat those values as interchangeable.

Wilwood rates BP10 for low dust and low noise while providing a gradual friction response. It is usable on the street and in drag or light-to-medium dirt-racing duties with steel or iron rotors. Its moderate-temperature character should be considered before selecting it for repeated high-energy stops.

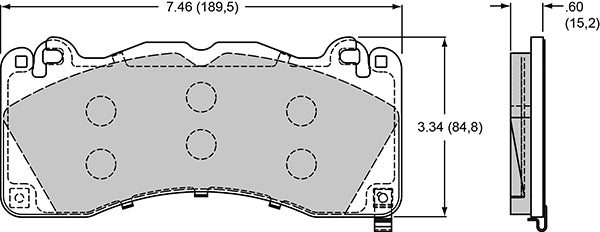

Reference: Wilwood product specifications and compound guidance. Manufacturer profile illustration.

For selection assistance, PMB Performance combines over 20 years of experience with a focus on the actual braking hardware. Share the caliper specification and intended use before ordering an uncertain fit.
