Wilwood GNX4/GNX5 Metallic Racing Brake Pads with Pins and Clips

This metallic racing-pad package includes four pads with retaining pins and clips for the listed GNX4 and GNX5 calipers. Wilwood specifies a 0.57-inch pad thickness and racing-only use, so it should not be substituted for a street-approved friction compound. Since Bill Wood established Wilwood Engineering in 1977, its work has centered on the design and manufacture of disc brake systems. The Camarillo, California company supplies calipers and brake rotors alongside master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized uses, with each component matched to the complete system.

Technical Details

• Manufacturer part number: 150-10479-PS
• Published pad volume: 4.07 cubic inches
• Rotor compatibility: Steel, Stainless Steel, Iron, Super Alloy, Titanium
• Bedding status: not pre-bedded; follow Wilwood bedding procedure
• Pad profile: 9115
• Friction compound: CM / metallic racing classification; see compatibility notes
• Package quantity: 4 pads
• Included hardware: pad-retaining pins and clips
• Pad thickness: .57 inch
• Published pad area: 11.15 square inches

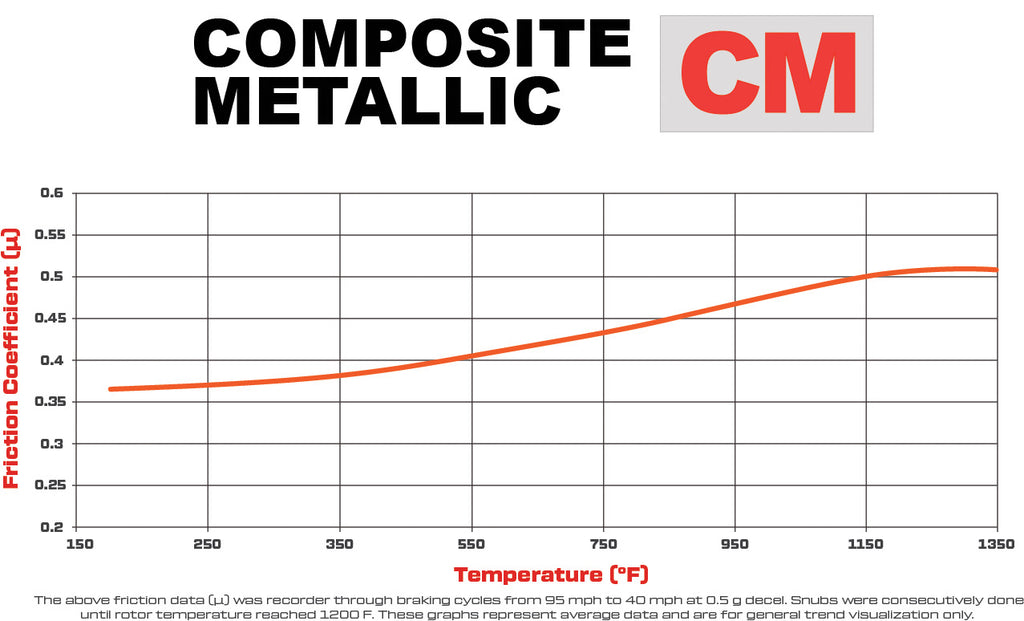

Wilwood’s current CM classification is a high-friction metallic racing compound with smooth initial response and resistance to sustained heat. Its formulation emphasizes stainless-steel rotors; the manufacturer also lists steel, iron, super alloy and titanium within the appropriate brake application. This compound is racing-only, not for street use. Wilwood suggests BP30 as an alternative, but profile, thickness and rotor compatibility still require confirmation.

Fitment & Compatibility

Wilwood’s compatible-caliper list names GNX4, GNX5. The replacement must match more than pad width: verify the plate shape, locating ears or holes, and caliper clearance for the stated thickness. Front or rear placement is determined by the actual brake installation.

Reference: Wilwood product specifications and compound guidance. Manufacturer profile illustration.

PMB Performance has worked with brake components for more than 20 years. Contact us with the installed caliper and rotor details when the correct replacement is unclear.
