Wilwood BP10 Brake Pads for Dynapro Six-Piston Calipers

These BP10 pads replace the friction set in the listed Dynapro Six and Forged Dynapro 6A calipers. Their 0.49-inch thickness and six-piston caliper profile must match the installed brake package; they are not shared automatically with every Dynapro model. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected as parts of a complete, compatible brake system.

Technical Details

• Manufacturer part number: 150-10006K
• Published pad area: 7.3 square inches
• Published pad volume: 2.4 cubic inches
• Rotor compatibility: Steel, Iron
• Bedding status: not pre-bedded; follow Wilwood bedding procedure
• Pad profile: 6712
• Friction compound: BP10
• Package quantity: 4 pads
• Pad thickness: .49 inch

Fitment & Compatibility

Wilwood’s compatible-caliper list names Dynapro Six Lug Mount, Forged Dynapro 6A Lug Mount. Select this profile only after checking the installed caliper, pad abutments and retaining hardware. New-pad thickness must leave the working clearance required by that brake assembly.

BP10’s low-to-medium-temperature role covers street vehicles and drag applications, with additional use in lightly to moderately braked dirt cars. Steel and iron are the specified rotor materials. The compound is chosen for controlled engagement and low dust, with the complete system’s heat demand still determining suitability.

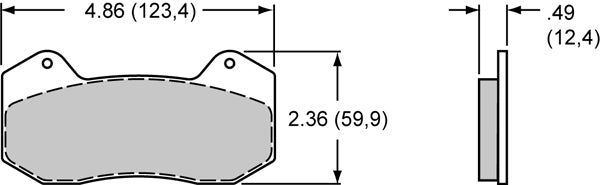

Reference: Wilwood product specifications and compound guidance. Manufacturer profile illustration.

PMB Performance’s 20+ years of brake experience can help with the final compatibility check. A pad outline, new-pad thickness and caliper identification give us the information needed to discuss the application.
