Wilwood D1886 Replacement Brake Pads, BP10 Compound

This D1886 package replaces four pads in a compatible brake assembly, using BP10 friction with a listed 0.66-inch thickness. Backing-plate geometry establishes the fit; the compound name alone does not identify a vehicle, caliper or axle position. Wilwood Engineering, based in Camarillo, California, was founded in 1977 by Bill Wood. It designs and manufactures disc brake systems for specialized, motorsport and street-performance applications, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines. These parts should be selected together to meet the complete brake system’s requirements.

Technical Details

• Manufacturer part number: 150-10-D1886K
• Package quantity: 4 pads
• Pad thickness: .66 inch
• Rotor compatibility: Steel, Iron
• Pad profile: D1886
• Friction compound: BP10

Fitment & Compatibility

Verify the required new-pad thickness alongside the plate’s contact and mounting surfaces. Rotor material and operating temperature must also match the friction compound; a shape match alone is insufficient.

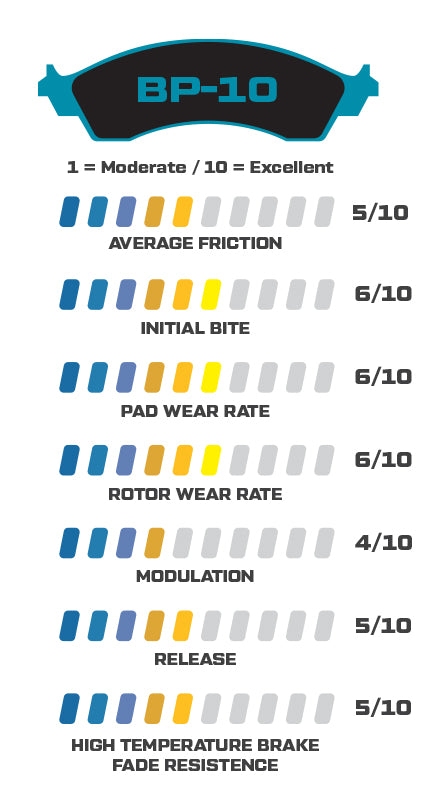

This set uses BP10, Wilwood’s street-oriented friction material for steel and iron rotors. It combines gradual response with low noise and dust ratings, and is also listed for drag racing and lighter dirt-track use. Match those characteristics to the vehicle’s duty instead of treating all racing compounds as interchangeable.

Reference: Wilwood BP10 compound characteristics.

PMB Performance has worked with brake components for more than 20 years. Contact us with the installed caliper and rotor details when the correct replacement is unclear.
