Wilwood D1853 Four-Pad Replacement Set in BP10 Compound

The D1853 plate differentiates these four BP10 pads from other sets with the same nominal thickness. At a listed 0.60 inch, they must match the installed caliper's new-pad dimensions and its complete support and retention arrangement. Bill Wood’s 1977 founding of Wilwood Engineering began a business focused on designing and manufacturing disc brake systems. Based in Camarillo, California, Wilwood serves motorsport, specialized applications and street-performance vehicles with calipers, brake rotors, valves, fittings, brake lines and master cylinders. Select each component for the requirements of the whole system.

Technical Details

• Manufacturer part number: 150-10-D1853K
• Pad profile: D1853
• Friction compound: BP10
• Package quantity: 4 pads
• Pad thickness: .60 inch
• Rotor compatibility: Steel, Iron

Fitment & Compatibility

Check the pad’s mounting outline against the installed caliper before choosing this set. A shared friction compound does not make different plate profiles interchangeable, and axle position cannot be inferred from the compound.

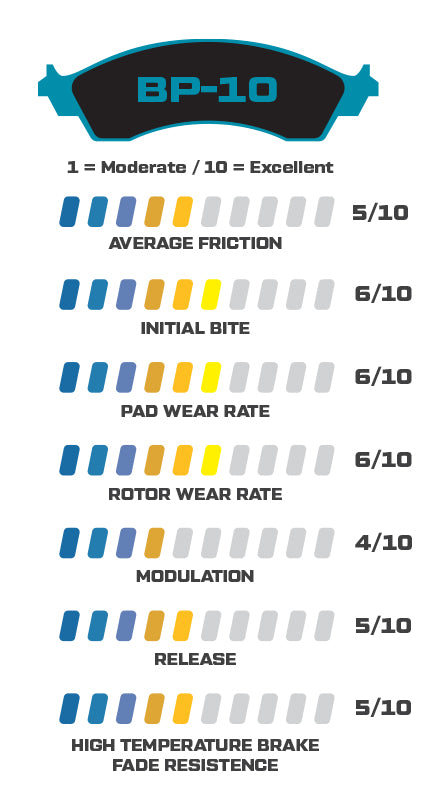

Wilwood rates BP10 for low dust and low noise while providing a gradual friction response. It is usable on the street and in drag or light-to-medium dirt-racing duties with steel or iron rotors. Its moderate-temperature character should be considered before selecting it for repeated high-energy stops.

Reference: Wilwood BP10 compound characteristics.

For selection assistance, PMB Performance combines over 20 years of experience with a focus on the actual braking hardware. Share the caliper specification and intended use before ordering an uncertain fit.
