Product details
This D1793 rear-pad set combines BP10 street friction with a listed 0.645-inch thickness. The rear profile is confirmed by Wilwood’s illustration and application data, while the installed caliper still needs to match the plate and new-pad clearance. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems, with calipers and brake rotors complemented by master cylinders, valves, fittings and brake lines. That range supports specialized applications as well as motorsport and street-performance vehicles; the entire brake system determines component selection.
Technical Details
- Manufacturer part number: 150-10-D1793K
- Pad thickness: .645 inch
- Rotor compatibility: Steel, Iron
- Pad profile: D1793
- Friction compound: BP10
- Package quantity: 4 pads
Fitment & Compatibility

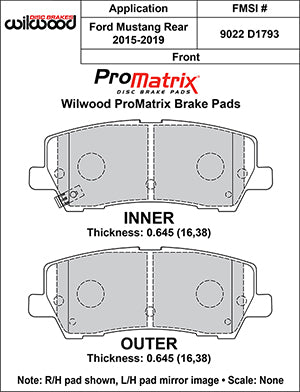

D1793 is the rear pad profile identified by Wilwood’s Mustang rear-pad illustration and its front/rear application data. Match the actual rear caliper and 0.645-inch thickness. The drawing includes a stray Front label, so use the verified rear pad profile and caliper specification rather than that inconsistent caption; no broad vehicle-year coverage is claimed here.
A modest heat requirement is central to choosing BP10: the compound is suitable for street use, drag racing and light-to-medium braking on dirt. It works with steel and iron rotors and offers gradual response with low dust and noise ratings, rather than the aggressive behavior of a dedicated high-temperature race pad.
Reference: Wilwood pad-profile drawing. Wilwood BP10 compound characteristics.
PMB Performance has 20+ years of experience working through brake fitment details. Have the caliper type, rotor material and pad dimensions ready when asking us to confirm the choice.
