Wilwood Front D1792 Street Brake Pads in BP10 Compound

This D1792 BP10 set supplies four 0.60-inch pads in the wide profile shown by Wilwood. The D1792 shape is also used in other Wilwood pad listings, so confirm the exact replacement reference and caliper requirements before assuming two catalog packages are interchangeable. Wilwood Engineering’s design and manufacture of disc brake systems dates from its founding by Bill Wood in 1977. Based in Camarillo, California, it serves street-performance, motorsport and specialized applications through calipers, brake rotors, master cylinders, brake lines, valves and fittings. Each item belongs in a correctly matched complete system.

Technical Details

• Manufacturer part number: 150-10-D1792K
• Friction compound: BP10
• Package quantity: 4 pads
• Pad thickness: .60 inch
• Published pad area: 15.9 square inches
• Published pad volume: 7.66 cubic inches
• Rotor compatibility: Steel, Iron
• Pad profile: D1792

The BP10 friction material emphasizes smooth initial response and moderate-temperature operation. Appropriate uses include street driving, drag racing and lighter dirt-track braking on iron or steel rotors. Choose a different compound when sustained braking heat exceeds this operating role.

Fitment & Compatibility

D1792 is a front-pad profile also used by the Wilwood SX6R. Check the installed caliper, 0.60-inch pad requirement and iron or steel rotor material. Another catalog package with the same profile is not automatically a confirmed part-number interchange.

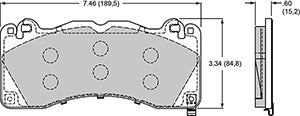

Reference: Wilwood pad-profile drawing. Wilwood BP10 compound characteristics.

With over 20 years of experience, PMB Performance can help compare the installed brake package with the required pad profile and compound. Caliper details are more useful than a vehicle model alone on a modified system.
