Wilwood Rear D1691 0.715-Inch Pads in BP10 Compound

This D1691 set pairs BP10 material with a 0.715-inch thickness and the specific plate geometry shown in the drawing. It renews the friction set in the matching caliper; the support surfaces and retaining features must align with the existing brake hardware. Wilwood Engineering designs and manufactures disc brake systems in a product range serving motorsport, street-performance and specialized applications. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood offers brake rotors, calipers, valves, master cylinders, brake lines and fittings; component choice depends on the complete braking arrangement.

Technical Details

• Manufacturer part number: 150-10-D1691K
• Pad thickness: .715 inch
• Rotor compatibility: Steel, Iron
• Pad profile: D1691
• Friction compound: BP10
• Package quantity: 4 pads

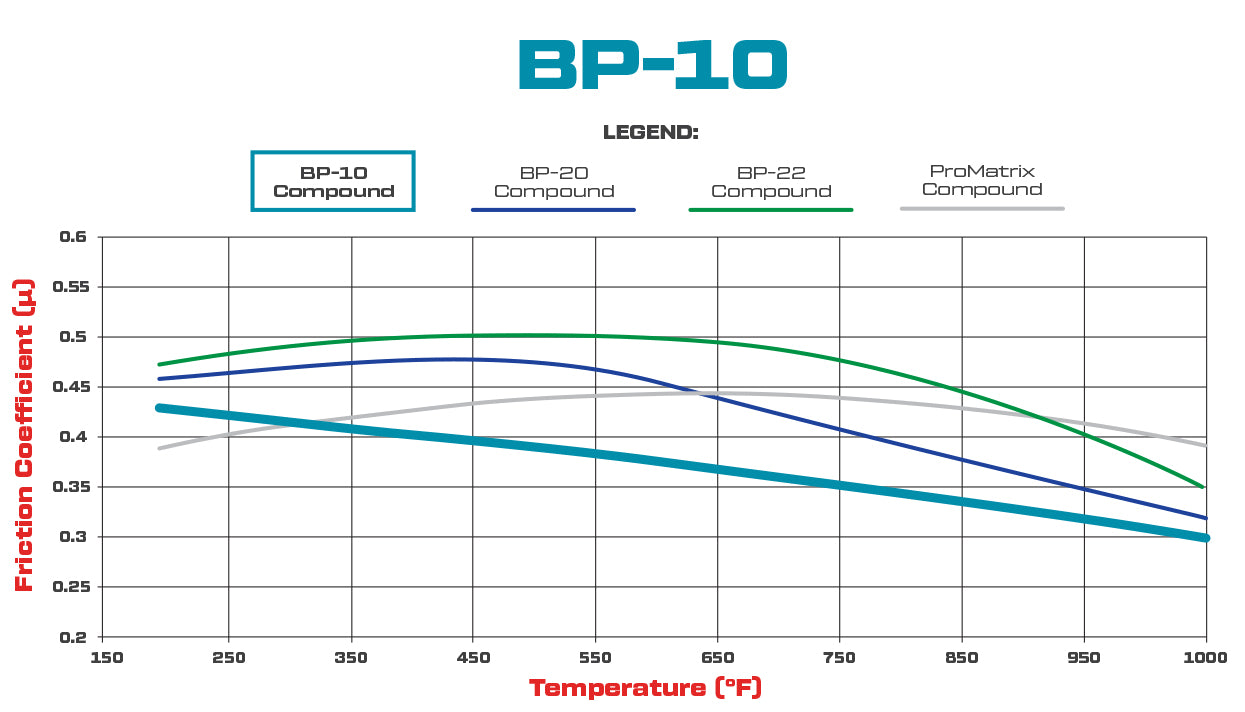

Wilwood rates BP10 for low dust and low noise while providing a gradual friction response. It is usable on the street and in drag or light-to-medium dirt-racing duties with steel or iron rotors. Its moderate-temperature character should be considered before selecting it for repeated high-energy stops.

Fitment & Compatibility

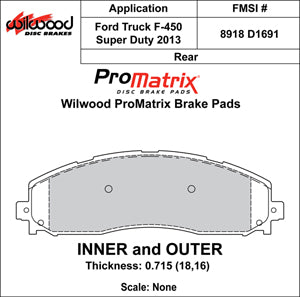

The manufacturer’s pad-profile drawing identifies rear use for this plate. Match the actual caliper and its new-pad specification; the drawing caption does not establish blanket model or year coverage. Identify the fitted brake package and use its pad specification to confirm this profile. Check all retaining features and the new-pad dimension rather than choosing from vehicle make or visual resemblance alone.

Reference: Wilwood pad-profile drawing. Wilwood BP10 compound characteristics.

For selection assistance, PMB Performance combines over 20 years of experience with a focus on the actual braking hardware. Share the caliper specification and intended use before ordering an uncertain fit.
