Wilwood Rear D1562 BP10 Pads for Selected Mustang GT/GT500 2012–2014

This D1562 BP10 rear-pad set covers a narrow group of Mustang applications: 2012 GT with Brembo brakes and automatic transmission, 2013 GT with Brembo brakes and manual transmission, and 2014 Shelby GT500. It should not be treated as a general 2012–2014 Mustang rear-pad fit. The brake-system manufacturer Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc brake systems, covering motorsport, street-performance and specialized needs with calipers, brake rotors, master cylinders, valves, fittings and brake lines. Component compatibility must be assessed across the whole installation.

Technical Details

• Manufacturer part number: 150-10-D1562K
• Package quantity: 4 pads
• Pad thickness: .655 inch
• Rotor compatibility: Steel, Iron
• Bedding status: not pre-bedded; follow Wilwood bedding procedure
• Pad profile: D1562
• Friction compound: BP10

Fitment & Compatibility

Use the three exact application rows below to distinguish the 2012 automatic GT/Brembo, 2013 manual GT/Brembo and 2014 Shelby GT500 rear brakes. Confirm the D1562 profile and 0.655-inch thickness; the nearby model years do not establish broader fitment.

The BP10 friction material emphasizes smooth initial response and moderate-temperature operation. Appropriate uses include street driving, drag racing and lighter dirt-track braking on iron or steel rotors. Choose a different compound when sustained braking heat exceeds this operating role.

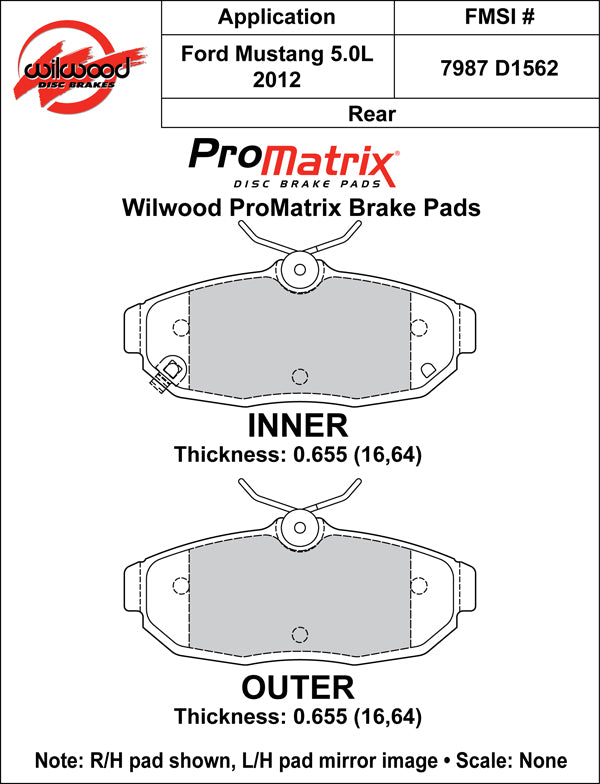

Reference: Wilwood product specifications and compound guidance. Manufacturer profile illustration.

With over 20 years of experience, PMB Performance can help compare the installed brake package with the required pad profile and compound. Caliper details are more useful than a vehicle model alone on a modified system.
