Wilwood Front BP10 D1399 Pads for Selected Ram 2500/3500 2009–2018

The D1399 BP10 set is listed for selected 2009–2018 Ram 2500 and 3500 front-brake applications. Its 0.79-inch thickness and heavy-duty profile must match the actual brake package, including the chassis distinctions in the application list. Wilwood Engineering, based in Camarillo, California, was founded in 1977 by Bill Wood. It designs and manufactures disc brake systems for specialized, motorsport and street-performance applications, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines. These parts should be selected together to meet the complete brake system’s requirements.

Technical Details

• Manufacturer part number: 150-10-D1399K
• Pad thickness: .79 inch
• Rotor compatibility: Steel, Iron
• Bedding status: not pre-bedded; follow Wilwood bedding procedure
• Pad profile: D1399
• Friction compound: BP10
• Package quantity: 4 pads

For a street-oriented system, BP10 provides progressive engagement on iron or steel rotor faces. Wilwood also recommends it for muscle cars, drag racing and light-to-medium dirt competition. Rotor material and expected braking temperature should govern compound selection; a pad that fits mechanically is not automatically right for every track session.

Fitment & Compatibility

The Dodge Ram and Ram 2500/3500 rows below define the front D1399 applications. Check chassis, drivetrain and brake-option details, then compare the installed caliper with the required 0.79-inch pad profile.

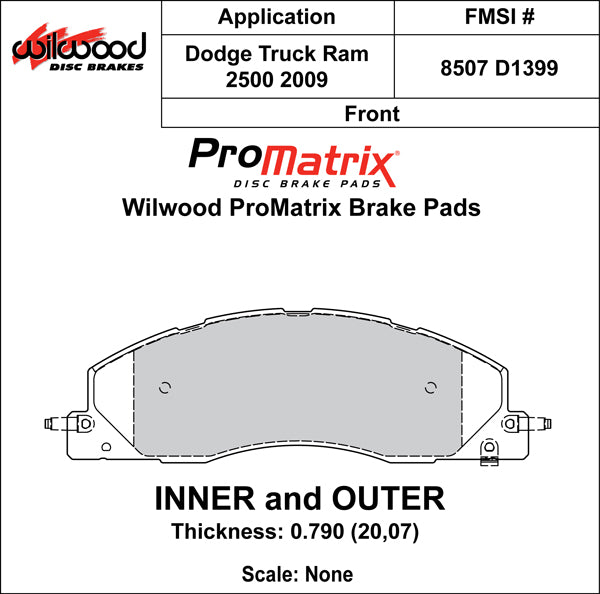

Reference: Wilwood product specifications and compound guidance. Manufacturer profile illustration.

Need to resolve a pad-shape or compound question? PMB Performance draws on more than 20 years of experience; provide the brake assembly details so we can help assess the correct match.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications
