Wilwood Rear BP10 D1012 Pads, Nominal 0.71-Inch Set

This D1012 four-pad set is listed at a nominal 0.71-inch thickness, with 0.705 inch shown on the profile drawing. The BP10 compound suits the appropriate moderate-temperature brake system, while the exact plate form and caliper clearance establish mechanical fit. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form Wilwood Engineering’s disc brake range. Bill Wood founded the Camarillo, California company in 1977; it designs and manufactures systems for motorsport, street-performance and specialized applications. Matching the component to the rest of the brake package is fundamental to selection.

Technical Details

• Manufacturer part number: 150-10-D1012K
• Rotor compatibility: Steel, Iron
• Pad profile: D1012
• Friction compound: BP10
• Package quantity: 4 pads
• Pad thickness: .71 inch (nominal)

Wilwood rates BP10 for low dust and low noise while providing a gradual friction response. It is usable on the street and in drag or light-to-medium dirt-racing duties with steel or iron rotors. Its moderate-temperature character should be considered before selecting it for repeated high-energy stops.

Fitment & Compatibility

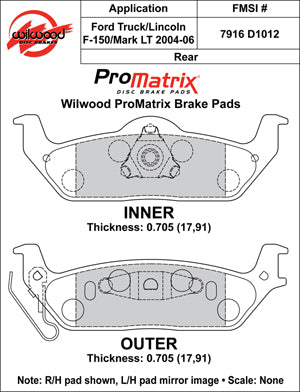

The manufacturer’s pad-profile drawing identifies rear use for this plate. Match the actual caliper and its new-pad specification; the drawing caption does not establish blanket model or year coverage. Pad retention, backing-plate dimensions and the available thickness clearance are the critical mechanical checks. Identify the caliper actually fitted to the vehicle, especially where a previous brake conversion has changed the original equipment.

Reference: Wilwood pad-profile drawing. Wilwood BP10 compound characteristics.

For selection assistance, PMB Performance combines over 20 years of experience with a focus on the actual braking hardware. Share the caliper specification and intended use before ordering an uncertain fit.
