Wilwood Front BP10 D1001 Brake Pads for Selected TL, Regal/Regal Sportback, CTS, Mustang, Lancer and Impreza/WRX/WRX STI Brake Packages

These D1001 BP10 pads fit the selected front performance-brake packages listed below, rather than every trim of the same vehicle. Wilwood publishes both 0.63-inch and 0.55-inch thickness measurements, so confirm the supplied pad dimension for the installed caliper before ordering. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and related components. Bill Wood founded the company in 1977. The range spans motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines that must be chosen to suit the complete system.

Technical Details

• Manufacturer part number: 150-10-D1001K
• Package quantity: 4 pads
• Published pad thickness: 0.63 inch on the product page; 0.55 inch on the profile drawing. Confirm the supplied dimension with Wilwood before ordering.
• Rotor compatibility: Steel, Iron
• Bedding status: not pre-bedded; follow Wilwood bedding procedure
• Pad profile: D1001
• Friction compound: BP10

Fitment & Compatibility

The table below covers selected Acura, Buick, Cadillac, Ford, Mitsubishi and Subaru front-brake packages. Check the exact performance or standard-brake option named in the row. The product page gives 0.63 inch and the profile drawing gives 0.55 inch. Confirm the supplied thickness and required clearance with Wilwood before ordering.

For a street-oriented system, BP10 provides progressive engagement on iron or steel rotor faces. Wilwood also recommends it for muscle cars, drag racing and light-to-medium dirt competition. Rotor material and expected braking temperature should govern compound selection; a pad that fits mechanically is not automatically right for every track session.

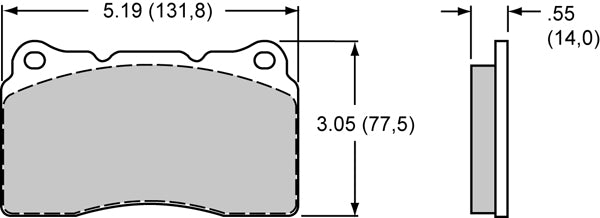

Reference: Wilwood product specifications and compound guidance. Manufacturer profile illustration.

Need to resolve a pad-shape or compound question? PMB Performance draws on more than 20 years of experience; provide the brake assembly details so we can help assess the correct match.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications
