Wilwood Front D914 0.665-Inch Pads with BP10 Friction

The D914 drawing identifies the plate geometry for this BP10 set, while the 0.665-inch thickness defines its new-pad clearance requirement. Four pads are supplied for a matching brake assembly using an appropriate iron or steel rotor. Since Bill Wood established Wilwood Engineering in 1977, its work has centered on the design and manufacture of disc brake systems. The Camarillo, California company supplies calipers and brake rotors alongside master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized uses, with each component matched to the complete system.

Technical Details

• Manufacturer part number: 150-10-D0914K
• Pad profile: D914
• Friction compound: BP10
• Package quantity: 4 pads
• Pad thickness: .665 inch
• Rotor compatibility: Steel, Iron

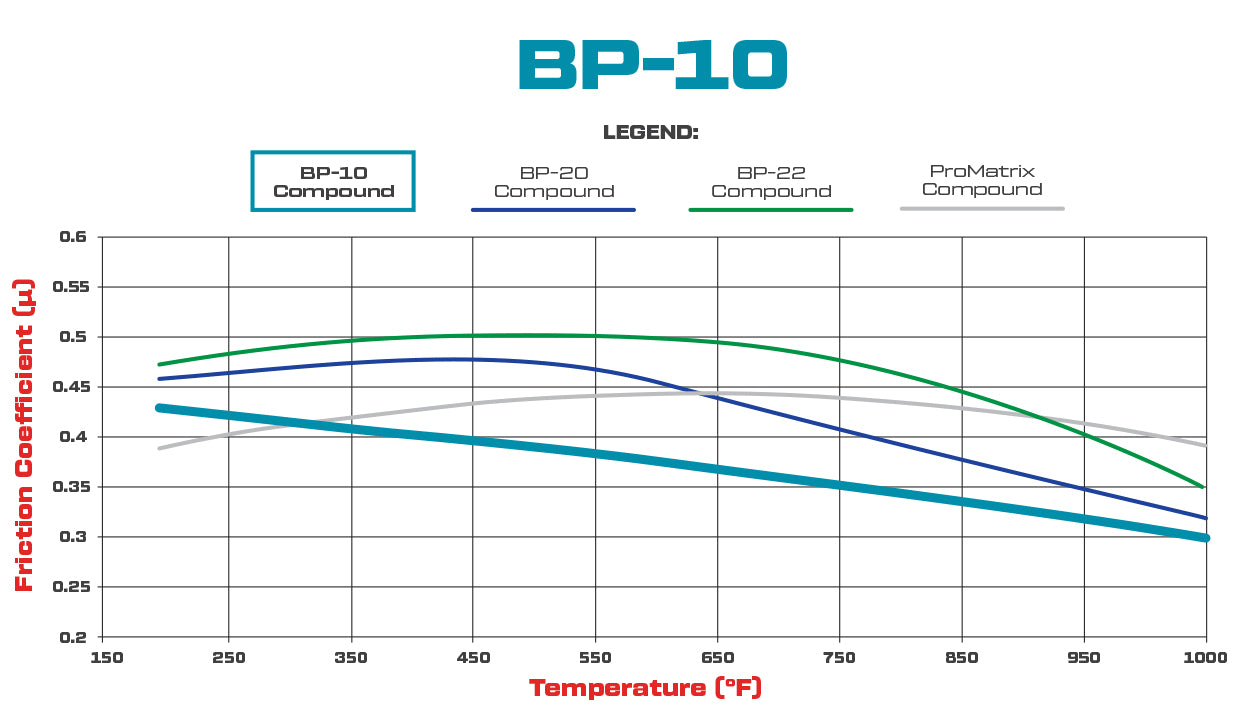

BP10 is a street-capable compound with gradual engagement for steel or iron rotors. Wilwood lists muscle-car and drag-racing use, plus light-to-medium dirt-track braking; it is intended for moderate heat rather than sustained heavy braking. Its low dust and noise ratings suit a street-focused brake package.

Fitment & Compatibility

The manufacturer’s pad-profile drawing identifies front use for this plate. Match the actual caliper and its new-pad specification; the drawing caption does not establish blanket model or year coverage. Select this profile only after checking the installed caliper, pad abutments and retaining hardware. New-pad thickness must leave the working clearance required by that brake assembly.

Reference: Wilwood pad-profile drawing. Wilwood BP10 compound characteristics.

PMB Performance brings more than 20 years of brake-system experience to component selection. Send the caliper identification and pad measurements if you need help matching the replacement.
