Wilwood Front/Rear D785 BP10 Brake Pads, 0.72-Inch Set

These D785 pads combine BP10 friction with a listed 0.72-inch thickness. The plate drawing is the useful mechanical reference for this set: matching thickness alone does not establish that a caliper accepts the D785 outline. Wilwood Engineering was established by Bill Wood in 1977 in the course of developing its disc brake business. Based in Camarillo, California, it designs and manufactures disc brake systems and components including master cylinders, valves, fittings, brake lines, calipers and brake rotors. Motorsport, street-performance and specialized applications each require a properly matched system.

Technical Details

• Manufacturer part number: 150-10-D0785K
• Package quantity: 4 pads
• Pad thickness: .72 inch
• Rotor compatibility: Steel, Iron
• Pad profile: D785
• Friction compound: BP10

Fitment & Compatibility

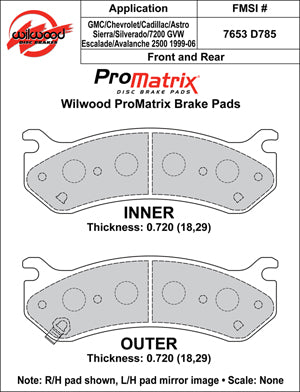

The manufacturer’s pad-profile drawing identifies front or rear use for this plate. Match the actual axle-specific caliper and its new-pad specification; the drawing caption does not establish blanket model or year coverage. The caliper manufacturer’s pad specification is the starting point for fitment. Verify plate geometry, retention and the necessary thickness, then confirm the brake system’s rotor material and intended service.

Wilwood rates BP10 for low dust and low noise while providing a gradual friction response. It is usable on the street and in drag or light-to-medium dirt-racing duties with steel or iron rotors. Its moderate-temperature character should be considered before selecting it for repeated high-energy stops.

Reference: Wilwood pad-profile drawing. Wilwood BP10 compound characteristics.

For selection assistance, PMB Performance combines over 20 years of experience with a focus on the actual braking hardware. Share the caliper specification and intended use before ordering an uncertain fit.
