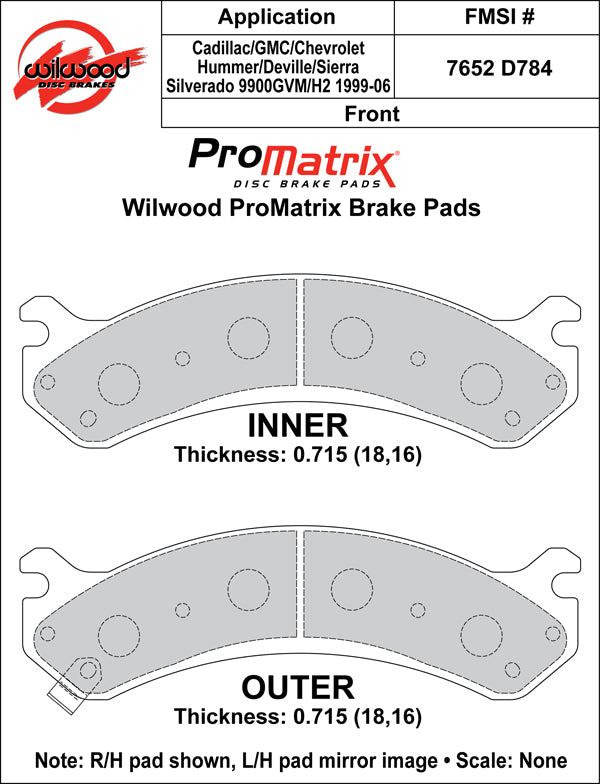

Wilwood D784 pad-profile drawing with backing-plate dimensions

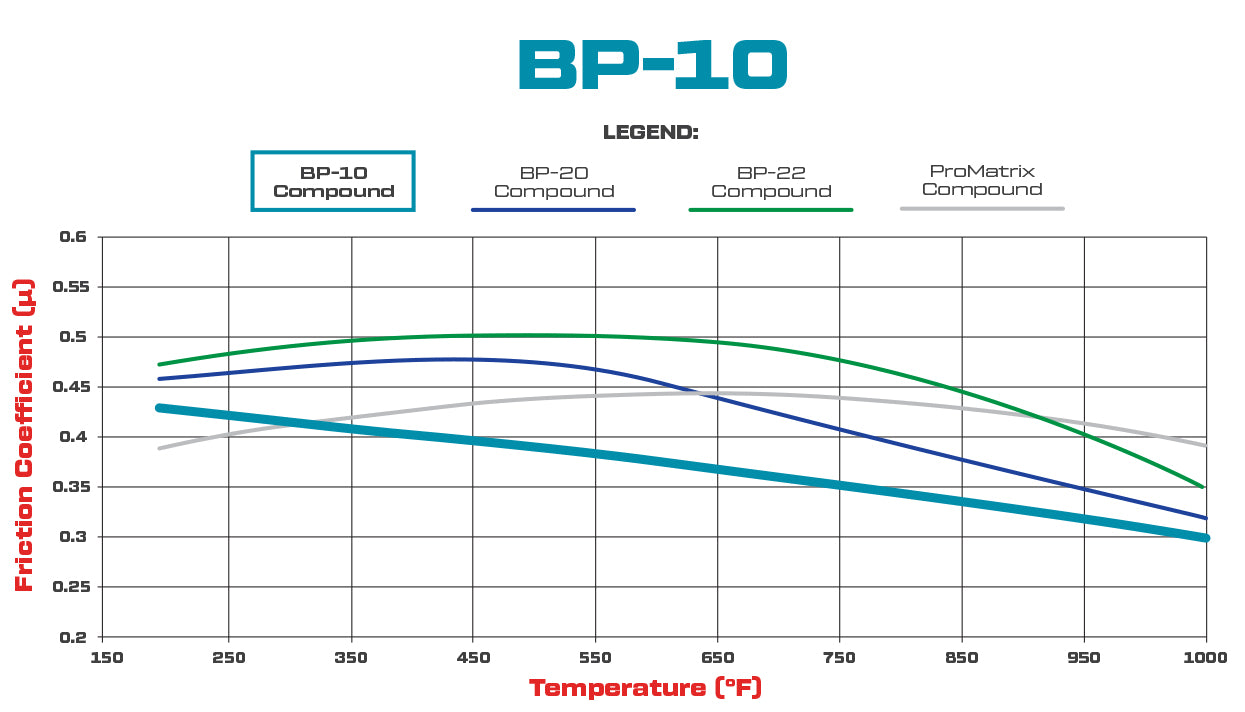

Wilwood BP10 friction coefficient versus temperature comparison chart
Wilwood D784 pad-profile drawing with backing-plate dimensions
Wilwood BP10 friction coefficient versus temperature comparison chart

Wilwood Front D784 BP10 Pads for Selected GM HD Trucks and Hummer 1999–2015

SKU: 150-10-D0784K

$127.67 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The D784 BP10 set serves the front brakes on the listed heavy-duty GM and Hummer applications. Truck series, chassis rating and brake options matter here; a shared model badge does not establish compatibility across every 1500, 2500 or 3500 configuration. Street-performance cars, motorsport vehicles and specialized applications are served by Wilwood Engineering’s disc brake systems. Founded by Bill Wood in 1977 and based in Camarillo, California, the company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines. Correct selection starts with the complete brake system.

Technical Details

  • Manufacturer part number: 150-10-D0784K
  • Friction compound: BP10
  • Package quantity: 4 pads
  • Pad thickness: .72 inch (nominal)
  • Rotor compatibility: Steel, Iron
  • Bedding status: not pre-bedded; follow Wilwood bedding procedure
  • Pad profile: D784

For a street-oriented system, BP10 provides progressive engagement on iron or steel rotor faces. Wilwood also recommends it for muscle cars, drag racing and light-to-medium dirt competition. Rotor material and expected braking temperature should govern compound selection; a pad that fits mechanically is not automatically right for every track session.

Fitment & Compatibility

Use the detailed GM, Cadillac and Hummer rows below to check the front pad profile, vehicle series and brake option. The application spans selected heavy-duty truck, SUV and van configurations; nominal 0.72-inch thickness corresponds to 0.715 inch in the plate drawing.

Reference: Wilwood product specifications and compound guidance. Manufacturer profile illustration.

Need to resolve a pad-shape or compound question? PMB Performance draws on more than 20 years of experience; provide the brake assembly details so we can help assess the correct match.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Years Make Model Submodel Model option Front pad type Rear pad type OE spindle type OE rear type Front brakes Rear brakes
1999-2004 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear D784 D785 Disc Disc Disc Disc
1999-2004 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear D784 D785 Disc Disc Disc Disc
2001-2006 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear D784 D785 Disc Disc Disc Disc
2001-2006 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear D784 D785 Disc Disc Disc Disc
1999-2004 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear D784 D785 Disc Disc Disc Disc
1999-2004 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear D784 D785 Disc Disc Disc Disc
2004-2006 Chevrolet Silverado 3500 Pickup 8 Lug - All w/ Single Rear Wheel D784 D785 Disc Disc Disc Disc
2004-2006 Chevrolet Silverado 3500 Pickup 8 Lug - All w/ Dual Rear Wheel D784 Disc Disc
2001-2006 Chevrolet Suburban 2500 8 Lug - All w/ 4.63 Center Register Rear D784 D785 Disc Disc Disc Disc
2001-2006 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear D784 D785 Disc Disc Disc Disc
2001-2006 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear D784 D785 Disc Disc Disc Disc
2004-2006 GMC Sierra 3500 Pickup 8 Lug - All w/ Single Rear Wheel D784 D785 Disc Disc Disc Disc
2004-2006 GMC Sierra 3500 Pickup 8 Lug - All w/ Dual Rear Wheel D784 Disc Disc
2001-2006 GMC Yukon XL 2500 8 Lug - All w/ 4.63 Center Register Rear D784 D785 Disc Disc Disc Disc
2001-2006 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear D784 D785 Disc Disc Disc Disc
2003-2009 Hummer H2 Base Base D784 D785 Disc Disc Disc Disc
2005-2009 Hummer H2 Luxury Luxury D784 D785 Disc Disc Disc Disc
2005-2009 Hummer H2 Adventure Adventure D784 D785 Disc Disc Disc Disc
2000 GMC Yukon XL 2500 8 Lug - 4 x 2 w/ 4.63 Center Register Rear D784 D785 Disc Disc Disc Disc
2000 GMC Yukon XL 2500 8 Lug - 4 x 4 w/ 4.63 Center Register Rear D784 D785 Disc Disc Disc Disc
2006-2008 Cadillac DTS Brake opt J55 (8 Stud Rotors) D784 D792 Disc Disc Disc Disc
2003-2009 Chevrolet Express 3500 Dual Rear Wheels D784 D989 Disc Disc Disc Disc
2003-2014 Chevrolet Express 3500 Single Rear Wheels D784 D974 Disc Disc Disc Disc
2000 Chevrolet Suburban 2500 8 Lug - 4 x 2 w/ 4.63 Center Register Rear D784 D785 Disc Disc Disc Disc
2000 Chevrolet Suburban 2500 8 Lug - 4 x 4 w/ 4.63 Center Register Rear D784 D785 Disc Disc Disc Disc
2000-2005 Cadillac DeVille Brake Option J55 (HD Brakes) D784 D792 Disc Disc Disc Disc
2003-2009 GMC Savana 3500 Dual Rear Wheels D784 D989 Disc Disc Disc Disc
2003-2010, 2012 GMC Savana 3500 Single Rear Wheels D784 D974 Disc Disc Disc Disc
2003, 2005 GMC Sierra 1500 HD Pickup 8 Lug - All w/o 4 wheel steering D784 D785 Disc Disc Disc Disc
2001-2006 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear D784 D785 Disc Disc Disc Disc
2008-2010 GMC Sierra 3500 HD Pickup 8 Lug - All w/ Single Rear Wheel D784 D785 Disc Disc Disc Disc
2007-2011 GMC Yukon XL 2500 8 Lug - All D784 D785 Disc Disc Disc Disc
2001-2003 GMC Sierra 3500 Pickup 8 Lug - All D784 Disc Disc
2010-2014 Chevrolet Express 3500 Dual Rear Wheels D784 D1411 Disc Disc Disc Disc
2009-2014 Chevrolet Express 4500 All D784 D1411 Disc Disc Disc Disc
2008-2010 Chevrolet Silverado 2500 HD Pickup 8 Lug - All D784 D785 Disc Disc Disc Disc
2008-2010 Chevrolet Silverado 3500 HD Pickup 8 Lug - All w/ Single Rear Wheel D784 D785 Disc Disc Disc Disc
2008-2010 Chevrolet Silverado 3500 HD Pickup 8 Lug - All w/ Dual Rear Wheel D784 Disc Disc
2007-2011 Chevrolet Suburban 2500 8 Lug - All D784 D785 Disc Disc Disc Disc
2007 GMC Sierra 2500 HD Pickup 8 Lug - Classic Style D784 D785 Disc Disc Disc Disc
2007 GMC Sierra 2500 HD Pickup 8 Lug - New Style D784 D785 Disc Disc Disc Disc
2007 GMC Sierra 3500 Classic 8 Lug - Classic Style w/ Single Rear Wheel D784 D785 Disc Disc Disc
2007 GMC Sierra 3500 HD Pickup 8 Lug - New Style w/ Dual Rear Wheel D784 Disc Disc
2007 GMC Sierra 3500 HD Pickup 8 Lug - New Style w/ Single Rear Wheel D784 D785 Disc Disc Disc Disc
2012-2013 GMC Yukon XL 2500 SLE SLE D784 D785 Disc Disc Disc Disc
2012-2013 GMC Yukon XL 2500 SLT SLT D784 D785 Disc Disc Disc Disc
2002-2006 Chevrolet Avalanche 2500 8 Lug - All D784 D785 Disc Disc Disc Disc
2012-2013 Chevrolet Suburban 2500 LS LS D784 D785 Disc Disc Disc Disc
2012-2013 Chevrolet Suburban 2500 LT LT D784 D785 Disc Disc Disc Disc
2003, 2005 Chevrolet Silverado 1500 HD Pickup 8 Lug - All w/o 4 wheel steering D784 D785 Disc Disc Disc Disc
2011, 2013-2014 GMC Savana 3500 All, except Cutaway Van D784 D1411 Disc Disc Disc Disc
2011, 2013-2014 GMC Savana 3500 Cutaway Van D784 D974 Disc Disc Disc Disc
2009-2014 GMC Savana 4500 All D784 D1411 Disc Disc Disc Disc
2007 Hummer H2 Special Edition Special Edition D784 D785 Disc Disc Disc Disc
2001-2002, 2006 Chevrolet Silverado 1500 HD Pickup 8 Lug - All D784 D785 Disc Disc Disc Disc
2001-2003 Chevrolet Silverado 3500 Pickup 8 Lug - All D784 Disc Disc
2007 Chevrolet Silverado 2500 HD Pickup 8 Lug - Classic Style D784 D785 Disc Disc Disc Disc
2007 Chevrolet Silverado 2500 HD Pickup 8 Lug - New Style D784 D785 Disc Disc Disc Disc
2007 Chevrolet Silverado 3500 Classic 8 Lug - Classic Style w/ Single Rear Wheel D784 D785 Disc Disc Disc Disc
2007 Chevrolet Silverado 3500 Classic 8 Lug - Classic Style w/ Dual Rear Wheel D784 Disc Disc
2007 Chevrolet Silverado 3500 HD Pickup 8 Lug - New Style w/ Dual Rear Wheel D784 Disc Disc
2007 Chevrolet Silverado 3500 HD Pickup 8 Lug - New Style w/ Single Rear Wheel D784 D785 Disc Disc Disc Disc
2010, 2012 GMC Savana 3500 Dual Rear Wheels D784 D1411 Disc Disc Disc Disc
2008-2010 GMC Sierra 2500 HD Pickup 8 Lug - All D784 D785 Disc Disc Disc Disc
2008-2010 GMC Sierra 3500 HD Pickup 8 Lug - All w/ Dual Rear Wheel D784 Disc Disc
2015 Chevrolet Express 3500 Base Base D784 D974 Disc Disc
2015 Chevrolet Express 3500 LS LS D784 D974 Disc Disc
2015 Chevrolet Express 3500 LT LT D784 D974 Disc Disc
2001-2002, 2006 GMC Sierra 1500 HD Pickup 8 Lug - All D784 D785 Disc Disc Disc Disc
