Wilwood Front D369 BP10 Pads for Selected GM and Dodge 1988–2002

The D369 plate supports the selected GM and Dodge front-brake applications in the vehicle list. The inner and outer pads have different geometry, and Wilwood publishes conflicting thickness measurements that require confirmation before ordering. The brake-system manufacturer Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc brake systems, covering motorsport, street-performance and specialized needs with calipers, brake rotors, master cylinders, valves, fittings and brake lines. Component compatibility must be assessed across the whole installation.

Technical Details

• Manufacturer part number: 150-10-D0369K
• Rotor compatibility: Steel, Iron
• Bedding status: not pre-bedded; follow Wilwood bedding procedure
• Pad profile: D369
• Friction compound: BP10
• Package quantity: 4 pads

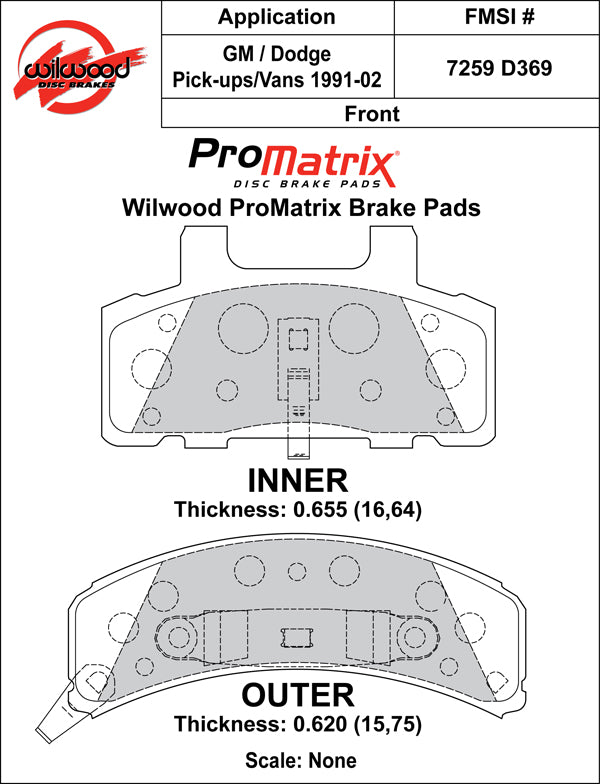

• Published pad thickness: 0.67 inch on the product page; the profile drawing specifies 0.655-inch inner and 0.620-inch outer pads. Confirm both supplied dimensions.

Fitment & Compatibility

Use the GM and Dodge application rows below to match the front brake package. Wilwood gives a 0.67-inch pad thickness on the product page and separate 0.655-inch inner and 0.620-inch outer dimensions on the D369 drawing. Confirm both supplied dimensions and the required caliper clearance with Wilwood before ordering.

A modest heat requirement is central to choosing BP10: the compound is suitable for street use, drag racing and light-to-medium braking on dirt. It works with steel and iron rotors and offers gradual response with low dust and noise ratings, rather than the aggressive behavior of a dedicated high-temperature race pad.

Reference: Wilwood product specifications and compound guidance. Manufacturer profile illustration.

PMB Performance has 20+ years of experience working through brake fitment details. Have the caliper type, rotor material and pad dimensions ready when asking us to confirm the choice.
