Wilwood Front/Rear D154 BP10 Brake Pads for GM Metric Calipers

These BP10 pads use the D154 profile found in the listed GM Metric and Wilwood D154 calipers. The vehicle applications include predominantly front brakes and specific rear installations, so D154 shape and the axle-specific application details must agree. Wilwood Engineering, based in Camarillo, California, was founded in 1977 by Bill Wood. It designs and manufactures disc brake systems for specialized, motorsport and street-performance applications, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines. These parts should be selected together to meet the complete brake system’s requirements.

Technical Details

• Manufacturer part number: 150-10-D0154K
• Pad thickness: .52 inch
• Published pad area: 8.7 square inches
• Published pad volume: 2.9 cubic inches
• Rotor compatibility: Steel, Iron
• Bedding status: not pre-bedded; follow Wilwood bedding procedure
• Pad profile: D154
• Friction compound: BP10
• Package quantity: 4 pads

Wilwood rates BP10 for low dust and low noise while providing a gradual friction response. It is usable on the street and in drag or light-to-medium dirt-racing duties with steel or iron rotors. Its moderate-temperature character should be considered before selecting it for repeated high-energy stops.

Fitment & Compatibility

Wilwood’s compatible-caliper list names D154 Single & Dual Piston Floater, D154-Dust Seal Single Piston Floater, D154-R Single Piston Floater, GM-Metric Single Piston Floater, GM-Metric-Iron Single Piston Floater. The table below covers the individual GM and Isuzu applications and identifies whether D154 is the front or rear pad. Do not infer axle position from the presence of rear disc brakes alone. Match the actual D154/GM Metric caliper, brake option and 0.52-inch new-pad requirement.

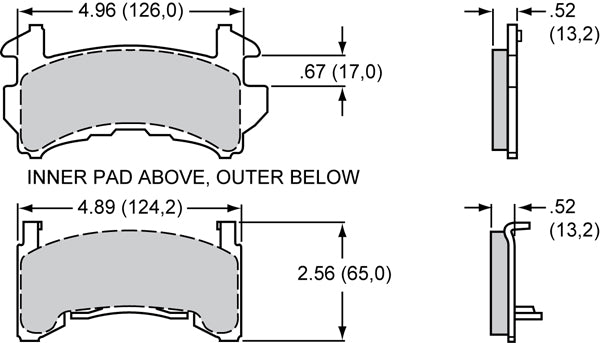

Reference: Wilwood product specifications and compound guidance. Manufacturer profile illustration.

For selection assistance, PMB Performance combines over 20 years of experience with a focus on the actual braking hardware. Share the caliper specification and intended use before ordering an uncertain fit.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications
