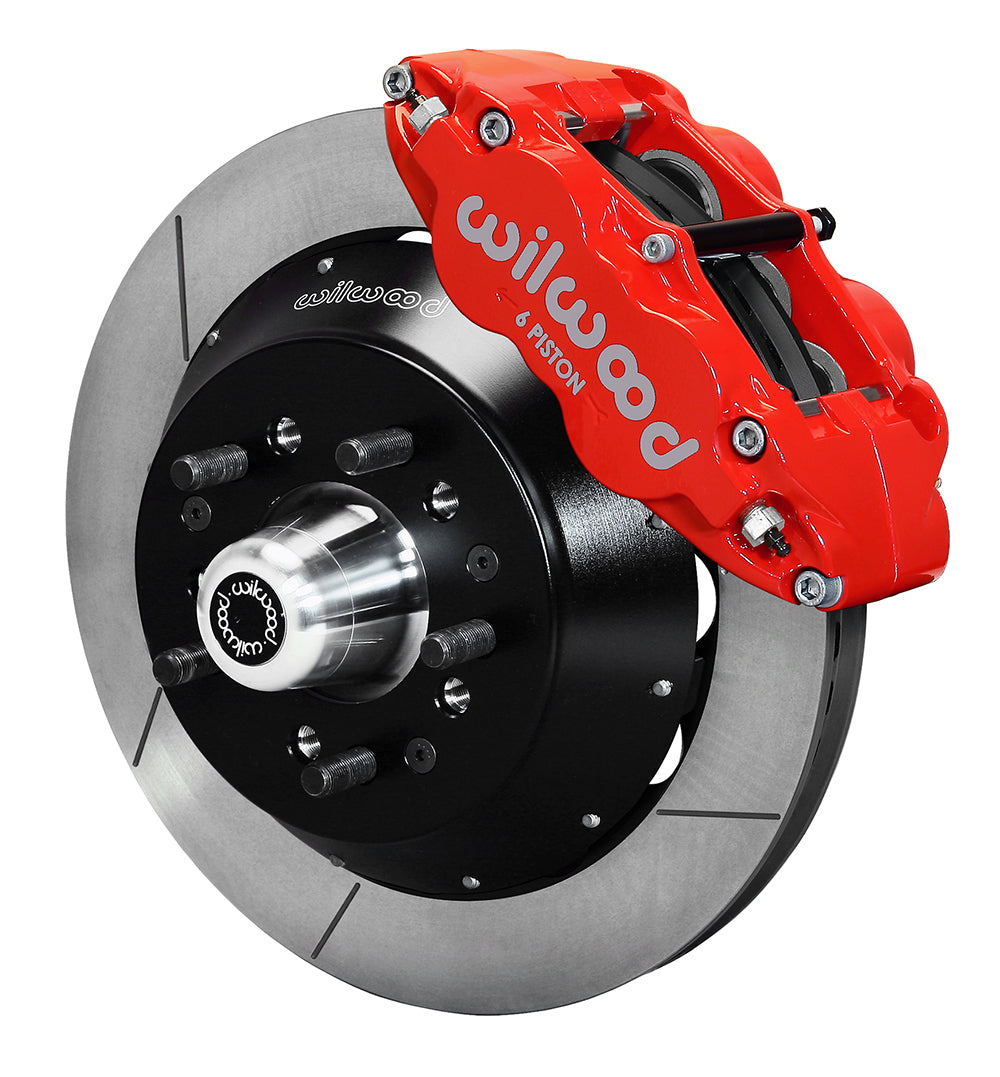

Wilwood Front Red Six-Piston Hub Kit for ProSpindle, 14-Inch GT Slotted Rotors

This red Narrow Superlite 6R kit gives the supported ProSpindle front end a 14-inch GT slotted rotor package. Six-piston calipers work with BP10 pads and the included hubs, with the wheel template needed to confirm both radial and spoke clearance. Bill Wood’s 1977 founding of Wilwood Engineering began a business focused on designing and manufacturing disc brake systems. Based in Camarillo, California, Wilwood serves motorsport, specialized applications and street-performance vehicles with calipers, brake rotors, valves, fittings, brake lines and master cylinders. Select each component for the requirements of the whole system.

Technical Details

• Manufacturer part number: 140-9920-R

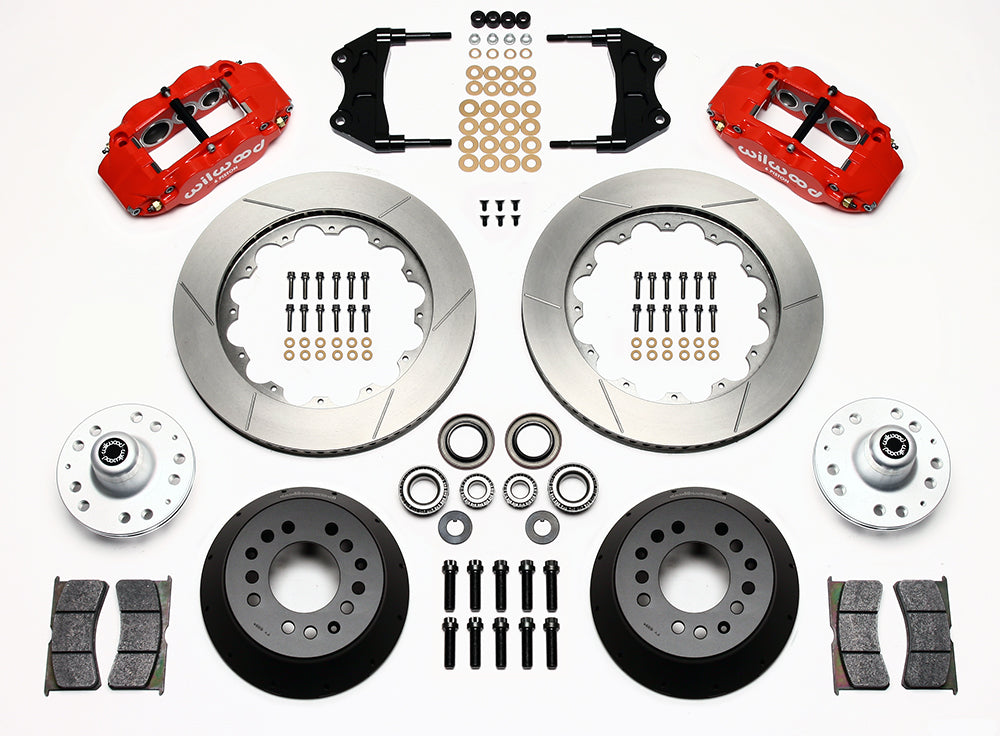

• Included: hubs, bearings, seals, dust caps and brake mounting hardware; separate rotor hats included
• Not included: spindles, master cylinder, booster or brake flexlines
• Rotor ventilation: 72 curved vanes
• Position and package: front brake and hub kit; one kit services both sides
• Calipers: Forged Narrow Superlite 6R, 6 pistons, forged aluminum bodies with stainless-steel pistons
• Finish: Red Powder Coat
• Rotors: 14.00 x 1.10 inches, vented Spec-37 iron; GT Slotted faces
• Caliper mounting: radial; hydraulic inlet 1/8-27 NPT
• Included friction: BP10 pads
• Wheel-diameter guide: 18 inches; actual wheel must pass the manufacturer clearance template
• Supported spindles: Wilwood standard-height ProSpindle 830-10832 or two-inch-drop ProSpindle 830-9807; spindles sold separately
• Included hub patterns: 5 x 4.50 inches (5 x 114.3 mm) and 5 x 4.75 inches (5 x 120.65 mm); 1/2-20 wheel studs
• Published OE hub offset: +0.68 inch per side; account for outward wheel movement

Fitment & Compatibility

Compare the intended wheel with the complete clearance diagram, allowing for the caliper’s radial and spoke envelope. Brake lines are separate; original rubber hoses do not adapt directly. Select the correct 1/8-27 NPT caliper connection and flexline length, and check for interference through suspension travel and full steering movement.

The installed ProSpindle governs the mounting procedure. Verify its height, steering-arm orientation and available wheel space; the supplied dual-pattern hubs do not make this a universal front brake conversion. Compatible spindle part numbers are 830-10832 for standard height and 830-9807 for the two-inch drop. The published +0.68-inch hub offset is per side and must be included in the wheel/fender clearance assessment.

Wilwood kit specifications · Manufacturer installation instructions and wheel-clearance diagram.

For help planning the installation, PMB Performance draws on more than 20 years of experience with brake components. Send the relevant spindle, rear-axle and wheel specifications for a compatibility review.
