Product details
The red-caliper version of this 14-inch front kit uses SRP drilled-and-slotted rotors with the Narrow Superlite 6R assembly. Hubs, bearings and rotor hats are included for the ProSpindle installation, with separate brake lines and the correct spindle hardware required to complete the system. The Wilwood Engineering range includes master cylinders, calipers, brake rotors, valves, fittings and brake lines for complete disc brake systems. Founded by Bill Wood in 1977, the Camarillo, California manufacturer both designs and manufactures those systems for motorsport, street-performance and specialized applications. Compatibility between the individual parts remains essential.
Technical Details

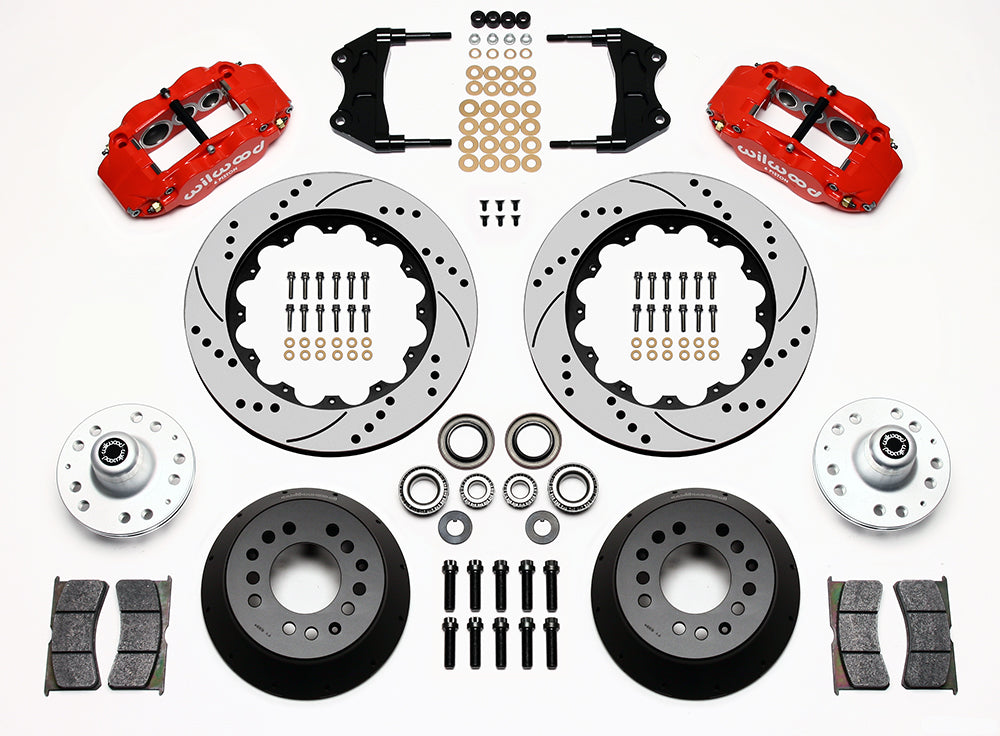

- Manufacturer part number: 140-9920-DR
- Published OE hub offset: +0.68 inch per side; account for outward wheel movement
- Included: hubs, bearings, seals, dust caps and brake mounting hardware; separate rotor hats included
- Not included: spindles, master cylinder, booster or brake flexlines
- Rotor ventilation: 72 curved vanes
- Position and package: front brake and hub kit; one kit services both sides

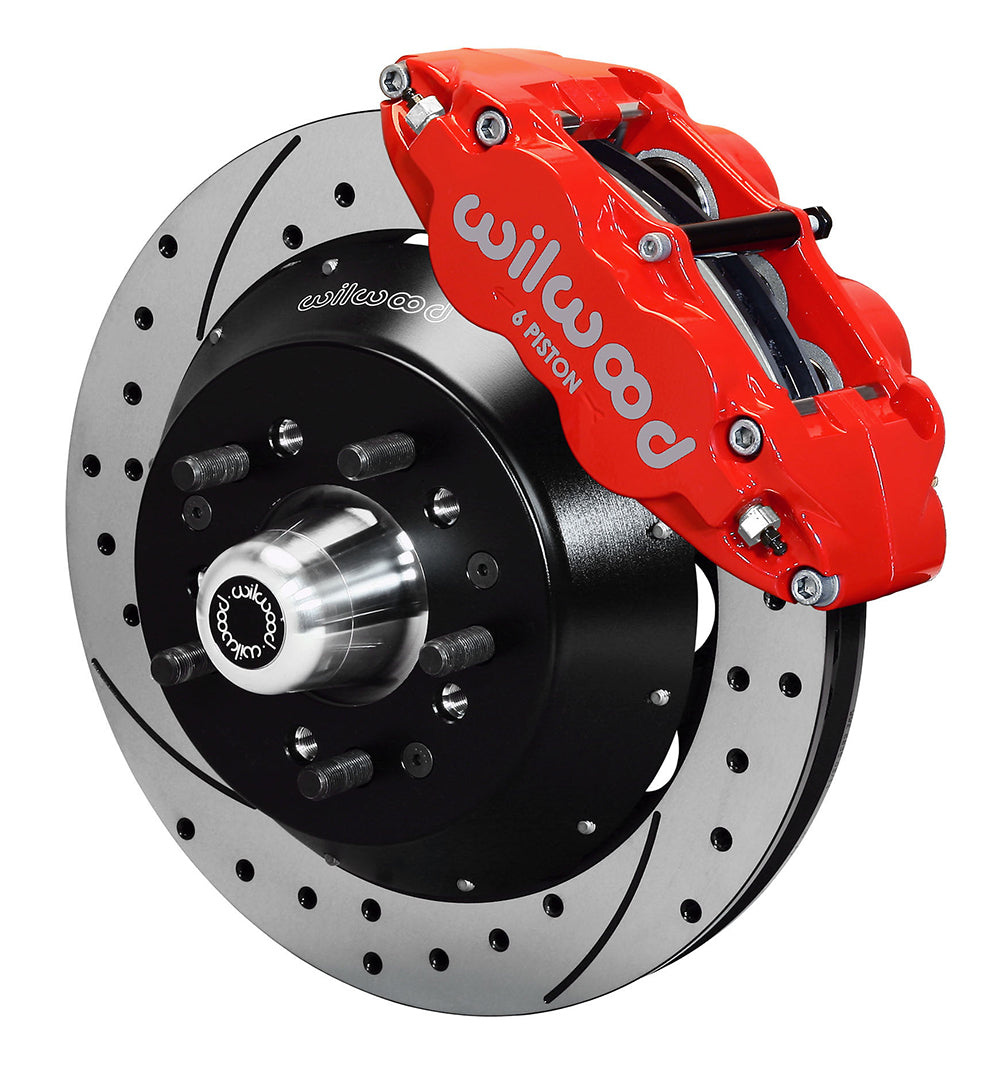

- Calipers: Forged Narrow Superlite 6R, 6 pistons, forged aluminum bodies with stainless-steel pistons
- Finish: Red Powder Coat
- Rotors: 14.00 x 1.10 inches, vented Spec-37 iron; SRP Drilled & Slotted faces
- Caliper mounting: radial; hydraulic inlet 1/8-27 NPT
- Included friction: BP10 pads
- Wheel-diameter guide: 18 inches; actual wheel must pass the manufacturer clearance template
- Supported spindles: Wilwood standard-height ProSpindle 830-10832 or two-inch-drop ProSpindle 830-9807; spindles sold separately
- Included hub patterns: 5 x 4.50 inches (5 x 114.3 mm) and 5 x 4.75 inches (5 x 120.65 mm); 1/2-20 wheel studs
Fitment & Compatibility
Check the ProSpindle number and height before ordering, then compare the complete brake template with the intended wheel. Caliper and steering-arm alignment follow separate instructions for the standard and dropped spindle versions. Compatible spindle part numbers are 830-10832 for standard height and 830-9807 for the two-inch drop. The published +0.68-inch hub offset is per side and must be included in the wheel/fender clearance assessment.
Compare the intended wheel with the complete clearance diagram, allowing for the caliper’s radial and spoke envelope. Brake lines are separate; original rubber hoses do not adapt directly. Select the correct 1/8-27 NPT caliper connection and flexline length, and check for interference through suspension travel and full steering movement.
Wilwood kit specifications · Manufacturer installation instructions and wheel-clearance diagram.
PMB Performance brings 20+ years of experience to brake selection. The spindle or axle configuration, wheel dimensions and hydraulic layout give us the information needed to review an application.
