Product details

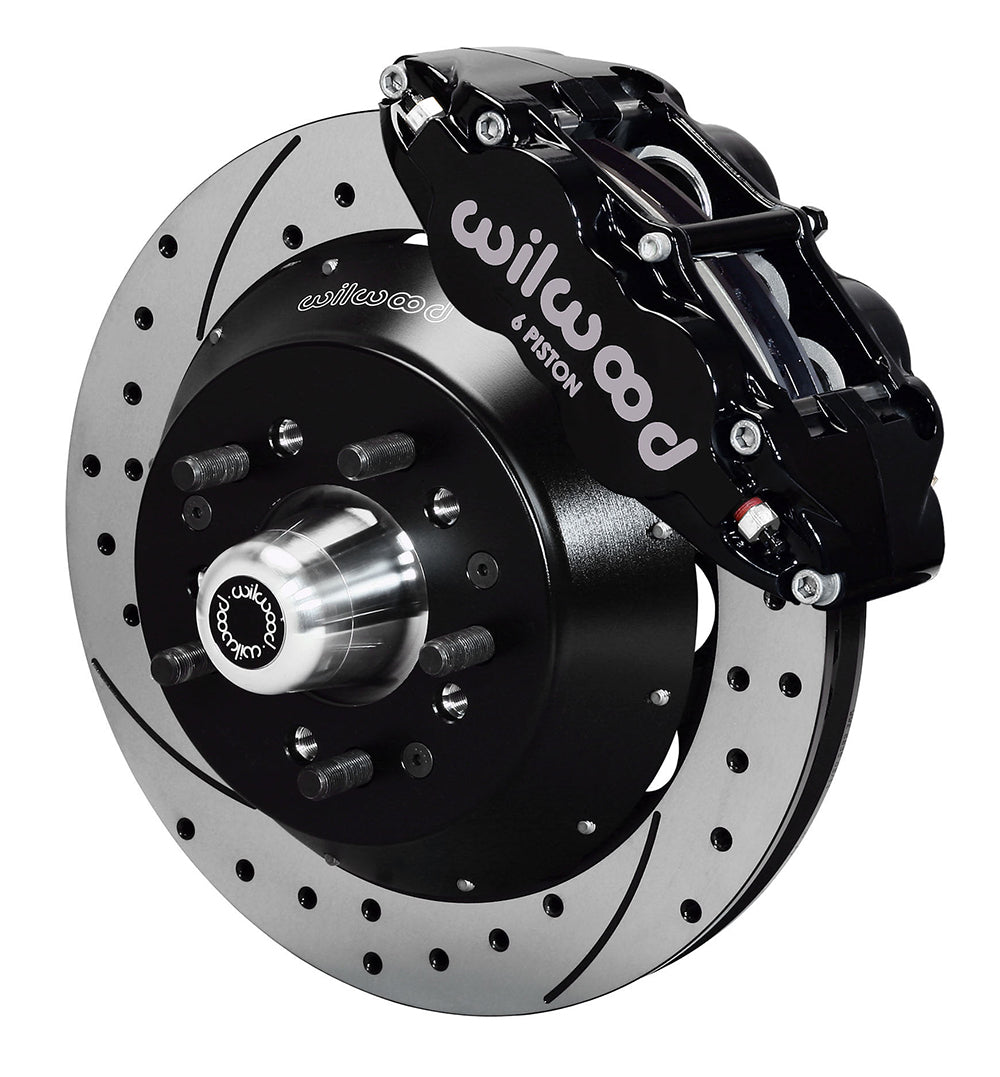

This black Superlite 6R kit combines six-piston radial calipers with 14-inch SRP drilled-and-slotted rotors. The front hub package fits the supported Wilwood ProSpindles; rotor diameter alone does not establish clearance inside a particular 18-inch wheel. Wilwood Engineering’s design and manufacture of disc brake systems dates from its founding by Bill Wood in 1977. Based in Camarillo, California, it serves street-performance, motorsport and specialized applications through calipers, brake rotors, master cylinders, brake lines, valves and fittings. Each item belongs in a correctly matched complete system.
Technical Details
- Manufacturer part number: 140-9920-D
- Supported spindles: Wilwood standard-height ProSpindle 830-10832 or two-inch-drop ProSpindle 830-9807; spindles sold separately
- Included hub patterns: 5 x 4.50 inches (5 x 114.3 mm) and 5 x 4.75 inches (5 x 120.65 mm); 1/2-20 wheel studs
- Published OE hub offset: +0.68 inch per side; account for outward wheel movement

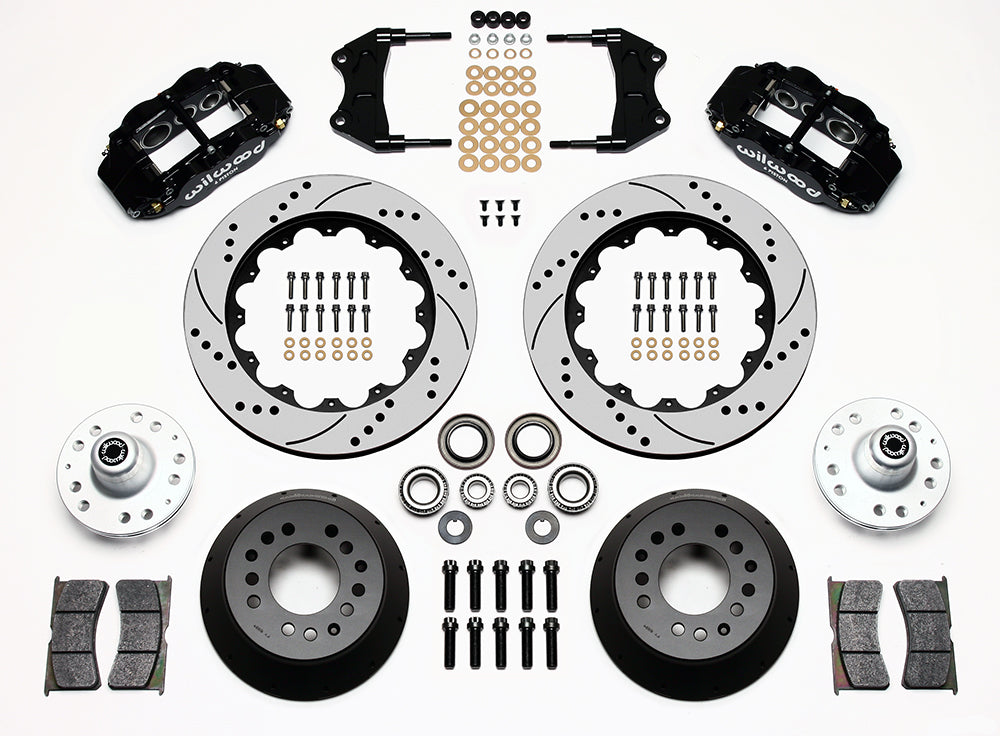

- Included: hubs, bearings, seals, dust caps and brake mounting hardware; separate rotor hats included
- Not included: spindles, master cylinder, booster or brake flexlines
- Rotor ventilation: 72 curved vanes
- Position and package: front brake and hub kit; one kit services both sides
- Calipers: Forged Narrow Superlite 6R, 6 pistons, forged aluminum bodies with stainless-steel pistons
- Finish: Black Powder Coat
- Rotors: 14.00 x 1.10 inches, vented Spec-37 iron; SRP Drilled & Slotted faces
- Caliper mounting: radial; hydraulic inlet 1/8-27 NPT
- Included friction: BP10 pads
- Wheel-diameter guide: 18 inches; actual wheel must pass the manufacturer clearance template
Fitment & Compatibility
This is a Wilwood ProSpindle brake assembly. The standard-height and two-inch-drop versions use different mounting instructions, so the spindle and steering-arm hardware should be identified before the hub and caliper are assembled. Compatible spindle part numbers are 830-10832 for standard height and 830-9807 for the two-inch drop. The published +0.68-inch hub offset is per side and must be included in the wheel/fender clearance assessment.
Compare the intended wheel with the complete clearance diagram, allowing for the caliper’s radial and spoke envelope. Brake lines are separate; original rubber hoses do not adapt directly. Select the correct 1/8-27 NPT caliper connection and flexline length, and check for interference through suspension travel and full steering movement.
Wilwood kit specifications · Manufacturer installation instructions and wheel-clearance diagram.
PMB Performance has more than 20 years of brake-system experience. Share the spindle or rear-brake configuration and wheel details if you need help confirming this kit before ordering.
