Product details
The polished finish exposes the Narrow Superlite 6R caliper form in this 12.88-inch SRP front kit. It includes the hubs and rotor hats needed for the supported ProSpindles, with drilled-and-slotted rotor faces and BP10 pads completing the service-brake components. Wilwood Engineering designs and manufactures disc brake systems in a product range serving motorsport, street-performance and specialized applications. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood offers brake rotors, calipers, valves, master cylinders, brake lines and fittings; component choice depends on the complete braking arrangement.
Technical Details
- Manufacturer part number: 140-9919-DP
- Rotors: 12.88 x 1.10 inches, vented Spec-37 iron; SRP Drilled & Slotted faces
- Caliper mounting: radial; hydraulic inlet 1/8-27 NPT
- Included friction: BP10 pads
- Wheel-diameter guide: 17 inches; actual wheel must pass the manufacturer clearance template
- Supported spindles: Wilwood standard-height ProSpindle 830-10832 or two-inch-drop ProSpindle 830-9807; spindles sold separately
- Included hub patterns: 5 x 4.50 inches (5 x 114.3 mm) and 5 x 4.75 inches (5 x 120.65 mm); 1/2-20 wheel studs
- Published OE hub offset: +0.68 inch per side; account for outward wheel movement

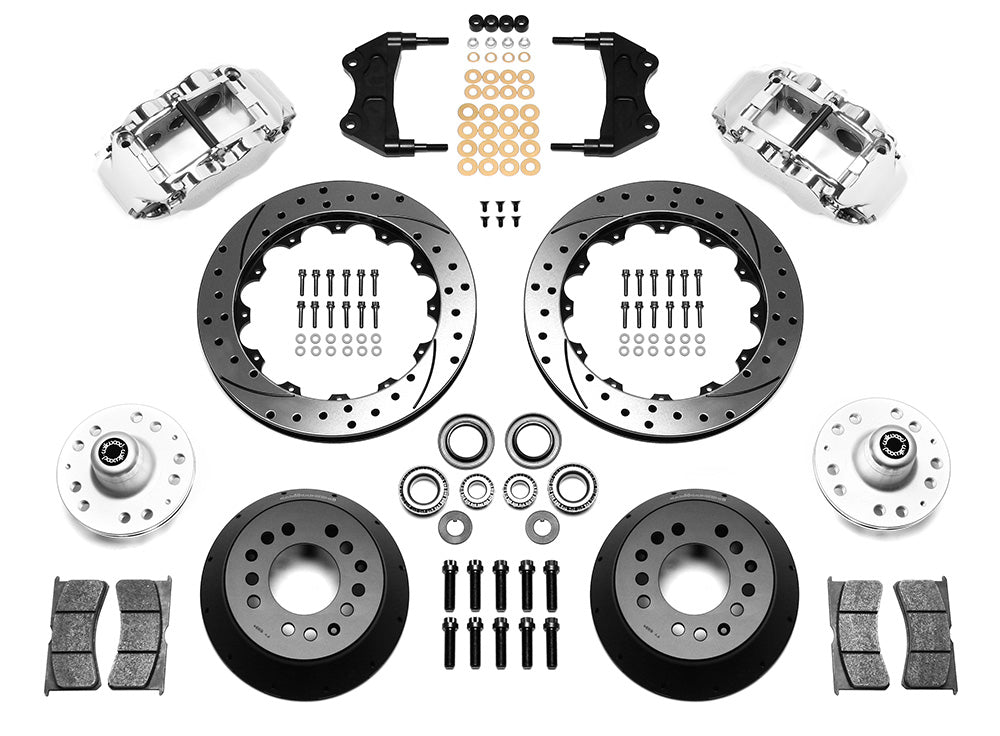

- Included: hubs, bearings, seals, dust caps and brake mounting hardware; separate rotor hats included
- Not included: spindles, master cylinder, booster or brake flexlines
- Rotor ventilation: 48 curved vanes
- Position and package: front brake and hub kit; one kit services both sides
- Calipers: Forged Narrow Superlite 6R, 6 pistons, forged aluminum bodies with stainless-steel pistons
- Finish: Polish
Fitment & Compatibility
Use only the supported ProSpindle arrangement and follow the height-specific bracket procedure. The kit does not establish vehicle fit from a chassis name alone, and the actual wheel must clear the rotor, caliper and hub assembly. Compatible spindle part numbers are 830-10832 for standard height and 830-9807 for the two-inch drop. The published +0.68-inch hub offset is per side and must be included in the wheel/fender clearance assessment.
Compare the intended wheel with the complete clearance diagram, allowing for the caliper’s radial and spoke envelope. Brake lines are separate; original rubber hoses do not adapt directly. Select the correct 1/8-27 NPT caliper connection and flexline length, and check for interference through suspension travel and full steering movement.
Wilwood kit specifications · Manufacturer installation instructions and wheel-clearance diagram.
With over 20 years of experience, PMB Performance can help match the brake package to the actual suspension and wheel arrangement. Provide the installed hardware details when fitment is uncertain.
