Product details

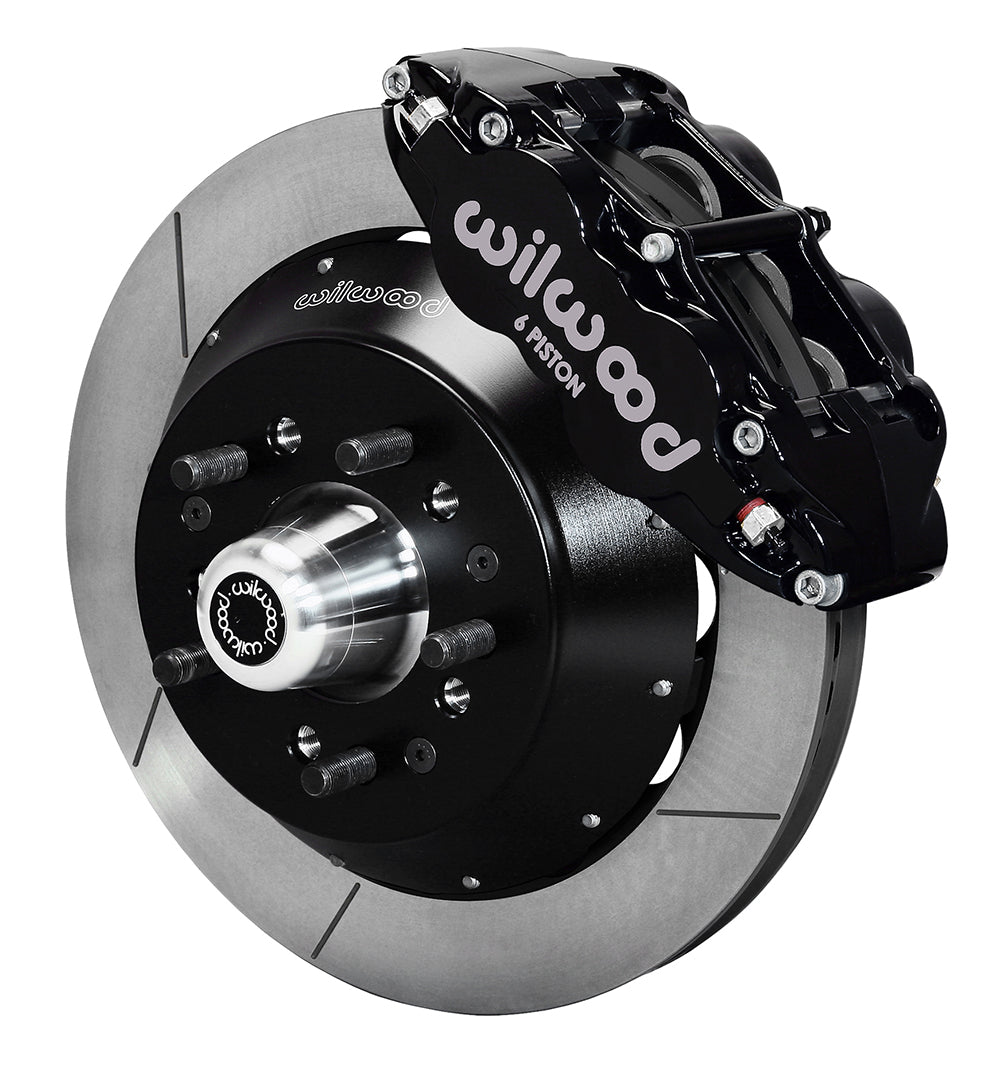

The black Narrow Superlite 6R calipers in this front kit clamp 12.88-inch GT slotted rotors. The ProSpindle hub-and-hat assembly provides the required mounting geometry, with a published outward hub offset that must be considered alongside wheel and fender clearance. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected as parts of a complete, compatible brake system.
Technical Details
- Manufacturer part number: 140-9919
- Calipers: Forged Narrow Superlite 6R, 6 pistons, forged aluminum bodies with stainless-steel pistons
- Finish: Black Powder Coat
- Rotors: 12.88 x 1.10 inches, vented Spec-37 iron; GT Slotted faces
- Caliper mounting: radial; hydraulic inlet 1/8-27 NPT
- Included friction: BP10 pads
- Wheel-diameter guide: 17 inches; actual wheel must pass the manufacturer clearance template
- Supported spindles: Wilwood standard-height ProSpindle 830-10832 or two-inch-drop ProSpindle 830-9807; spindles sold separately
- Included hub patterns: 5 x 4.50 inches (5 x 114.3 mm) and 5 x 4.75 inches (5 x 120.65 mm); 1/2-20 wheel studs
- Published OE hub offset: +0.68 inch per side; account for outward wheel movement

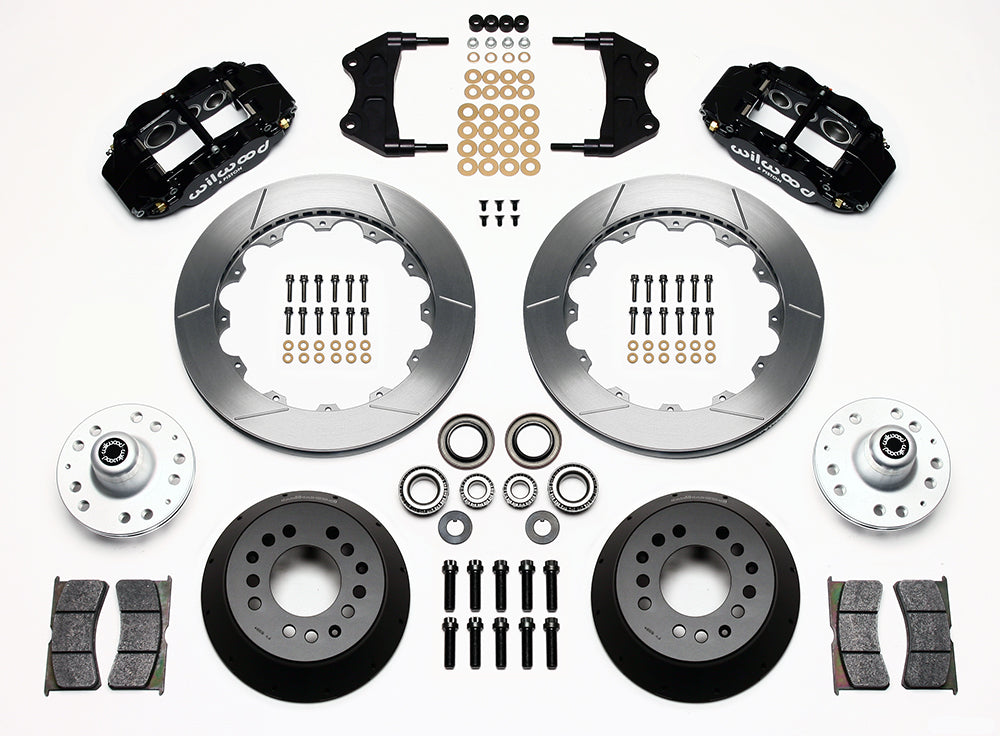

- Included: hubs, bearings, seals, dust caps and brake mounting hardware; separate rotor hats included
- Not included: spindles, master cylinder, booster or brake flexlines
- Rotor ventilation: 48 curved vanes
- Position and package: front brake and hub kit; one kit services both sides
Fitment & Compatibility
Both supported ProSpindle heights are covered, but their bracket and steering-arm assembly steps differ. Identify the spindle first, then use the corresponding installation figures; a similar-looking original spindle is not an automatic substitute. Compatible spindle part numbers are 830-10832 for standard height and 830-9807 for the two-inch drop. The published +0.68-inch hub offset is per side and must be included in the wheel/fender clearance assessment.
Compare the intended wheel with the complete clearance diagram, allowing for the caliper’s radial and spoke envelope. Brake lines are separate; original rubber hoses do not adapt directly. Select the correct 1/8-27 NPT caliper connection and flexline length, and check for interference through suspension travel and full steering movement.
Wilwood kit specifications · Manufacturer installation instructions and wheel-clearance diagram.
PMB Performance has over 20 years of experience working through brake fitment. Contact us with the vehicle’s actual brake hardware and wheel measurements if you need assistance selecting the correct package.
