Product details

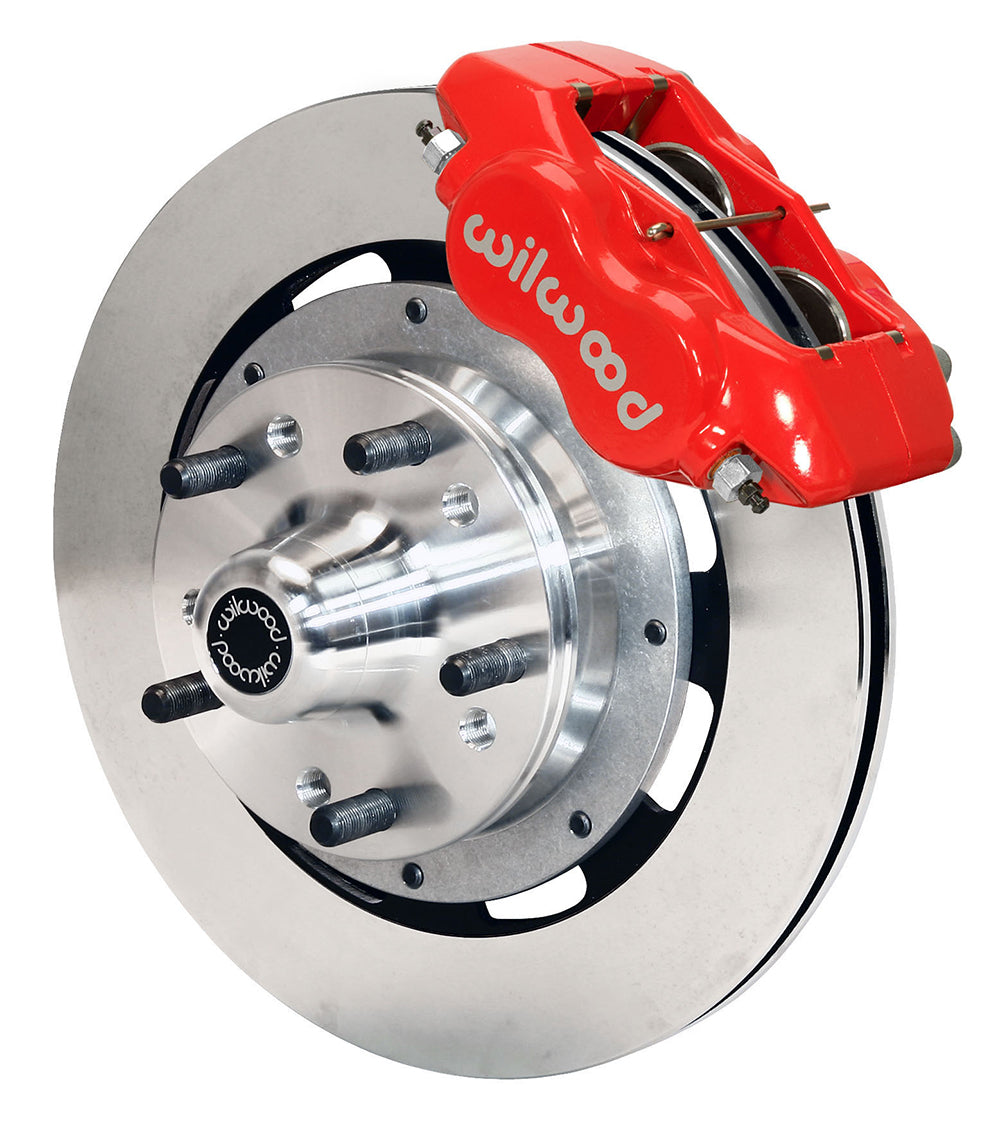

Plain-face 12.19-inch rotors are matched with red Forged Dynalite calipers in this front hub kit. It is built for the supported Wilwood ProSpindles, with the caliper brackets and steering-arm hardware assembled according to the selected spindle height. The brake-system manufacturer Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc brake systems, covering motorsport, street-performance and specialized needs with calipers, brake rotors, master cylinders, valves, fittings and brake lines. Component compatibility must be assessed across the whole installation.
Technical Details
- Manufacturer part number: 140-9918-R
- Calipers: Forged Dynalite Internal, 4 pistons, forged aluminum bodies with stainless-steel pistons
- Finish: Red Powder Coat
- Rotors: 12.19 x 0.81 inches, vented iron; Plain Face faces
- Caliper mounting: lug; hydraulic inlet 1/8-27 NPT
- Included friction: BP10 pads
- Wheel-diameter guide: 15 inches; actual wheel must pass the manufacturer clearance template
- Supported spindles: Wilwood standard-height ProSpindle 830-10832 or two-inch-drop ProSpindle 830-9807; spindles sold separately
- Included hub patterns: 5 x 4.50 inches (5 x 114.3 mm) and 5 x 4.75 inches (5 x 120.65 mm); 1/2-20 wheel studs
- Published OE hub offset: +0.10 inch per side; account for outward wheel movement

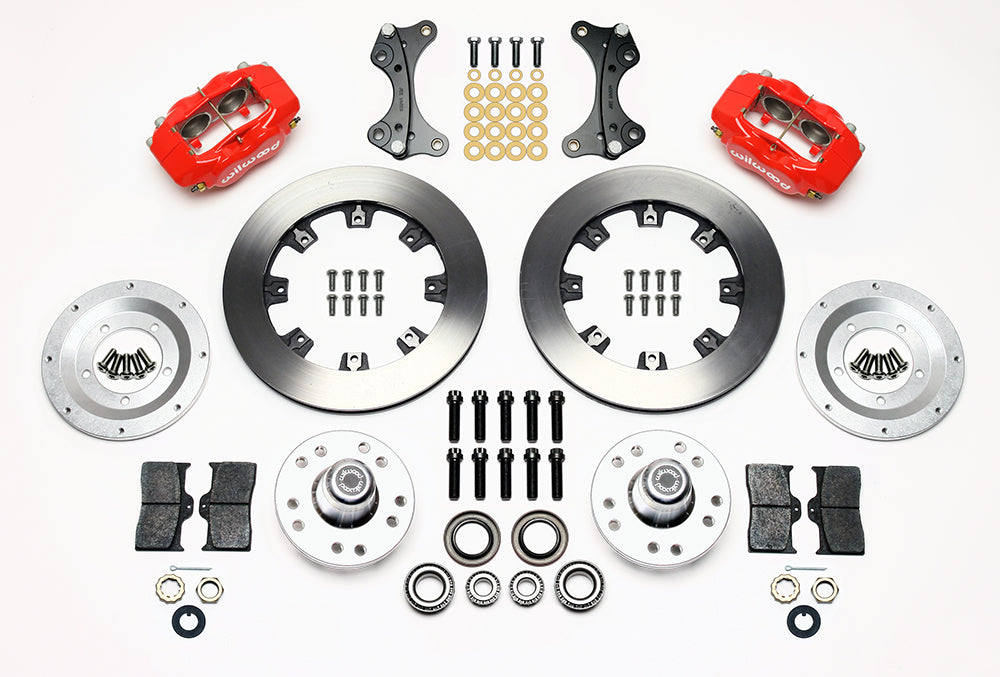

- Included: hubs, bearings, seals, dust caps and brake mounting hardware
- Not included: spindles, master cylinder, booster or brake flexlines
- Position and package: front brake and hub kit; one kit services both sides
Fitment & Compatibility
If the wheel center overhangs the hub face, Wilwood requires the separate 6.60-inch-diameter x 0.20-inch steel spacer 300-11961. For stamped-steel wheels that do not overhang the hub, the instructions recommend the 6.15-inch x 0.09-inch hub shield 300-10716. Verify wheel support, lug engagement and the complete wheel-clearance template. OE rubber hoses do not adapt directly; fit correctly routed, compatible braided flexlines.
The installed ProSpindle governs the mounting procedure. Verify its height, steering-arm orientation and available wheel space; the supplied dual-pattern hubs do not make this a universal front brake conversion. Compatible spindle part numbers are 830-10832 for standard height and 830-9807 for the two-inch drop. The published +0.10-inch hub offset is per side and must be included in the wheel/fender clearance assessment.
Wilwood kit specifications · Manufacturer installation instructions and wheel-clearance diagram.
For help planning the installation, PMB Performance draws on more than 20 years of experience with brake components. Send the relevant spindle, rear-axle and wheel specifications for a compatibility review.
