Product details

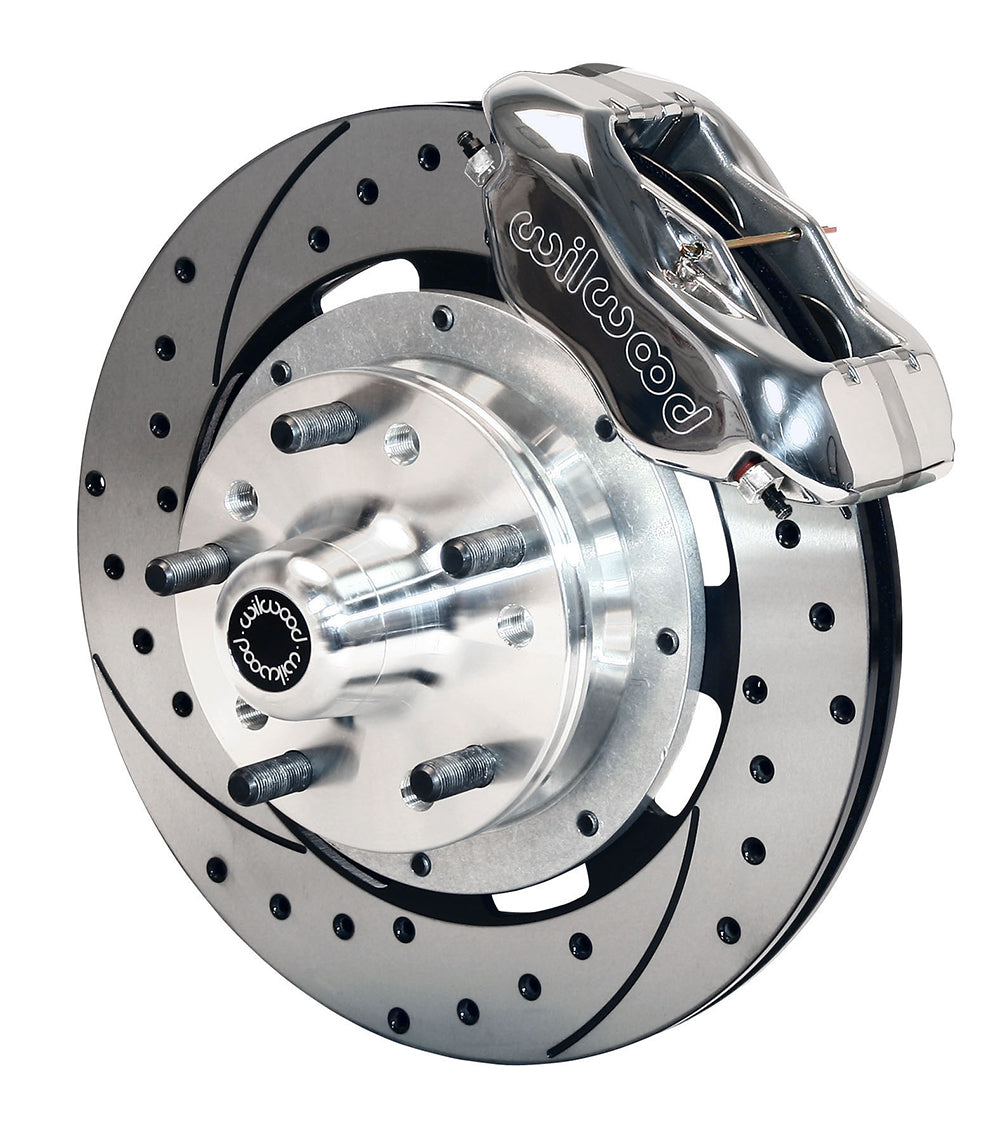

The polished calipers distinguish this 12.19-inch Dynalite front-brake package for Wilwood ProSpindles. SRP rotor faces are drilled and slotted, and the included hub components need to be assembled with the correct stud pattern and spindle-specific bracket layout. Street-performance cars, motorsport vehicles and specialized applications are served by Wilwood Engineering’s disc brake systems. Founded by Bill Wood in 1977 and based in Camarillo, California, the company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines. Correct selection starts with the complete brake system.
Technical Details
- Manufacturer part number: 140-9918-DP
- Not included: spindles, master cylinder, booster or brake flexlines
- Position and package: front brake and hub kit; one kit services both sides
- Calipers: Forged Dynalite Internal, 4 pistons, forged aluminum bodies with stainless-steel pistons
- Finish: Polish
- Rotors: 12.19 x 0.81 inches, vented iron; SRP Drilled & Slotted faces
- Caliper mounting: lug; hydraulic inlet 1/8-27 NPT
- Included friction: BP10 pads
- Wheel-diameter guide: 15 inches; actual wheel must pass the manufacturer clearance template
- Supported spindles: Wilwood standard-height ProSpindle 830-10832 or two-inch-drop ProSpindle 830-9807; spindles sold separately
- Included hub patterns: 5 x 4.50 inches (5 x 114.3 mm) and 5 x 4.75 inches (5 x 120.65 mm); 1/2-20 wheel studs
- Published OE hub offset: +0.10 inch per side; account for outward wheel movement

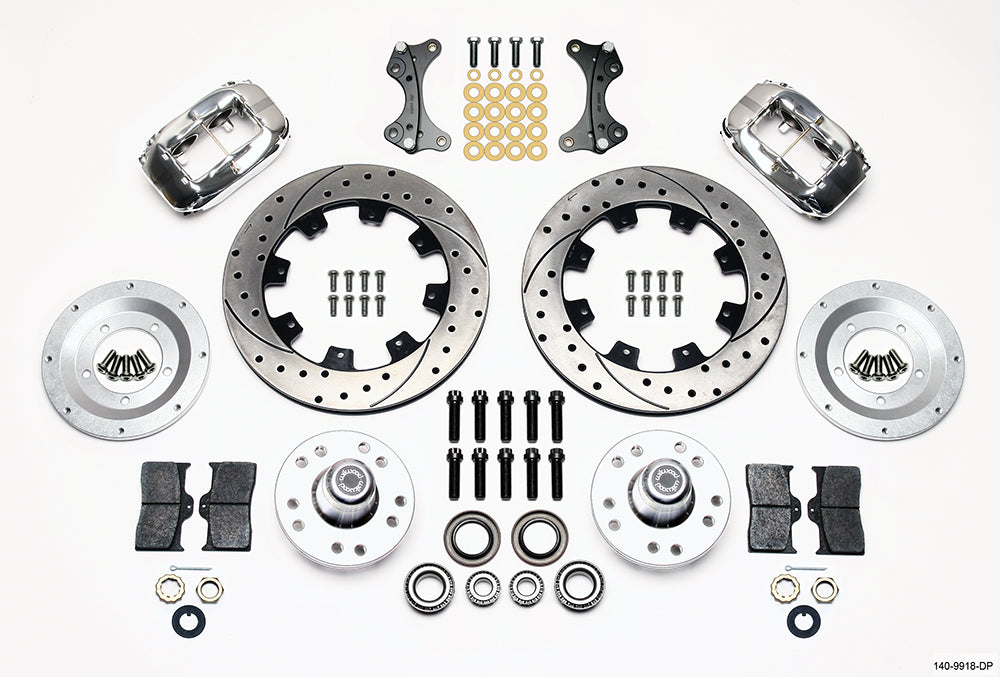

- Included: hubs, bearings, seals, dust caps and brake mounting hardware
Fitment & Compatibility
If the wheel center overhangs the hub face, Wilwood requires the separate 6.60-inch-diameter x 0.20-inch steel spacer 300-11961. For stamped-steel wheels that do not overhang the hub, the instructions recommend the 6.15-inch x 0.09-inch hub shield 300-10716. Verify wheel support, lug engagement and the complete wheel-clearance template. OE rubber hoses do not adapt directly; fit correctly routed, compatible braided flexlines.
Use only the supported ProSpindle arrangement and follow the height-specific bracket procedure. The kit does not establish vehicle fit from a chassis name alone, and the actual wheel must clear the rotor, caliper and hub assembly. Compatible spindle part numbers are 830-10832 for standard height and 830-9807 for the two-inch drop. The published +0.10-inch hub offset is per side and must be included in the wheel/fender clearance assessment.
Wilwood kit specifications · Manufacturer installation instructions and wheel-clearance diagram.
With over 20 years of experience, PMB Performance can help match the brake package to the actual suspension and wheel arrangement. Provide the installed hardware details when fitment is uncertain.
