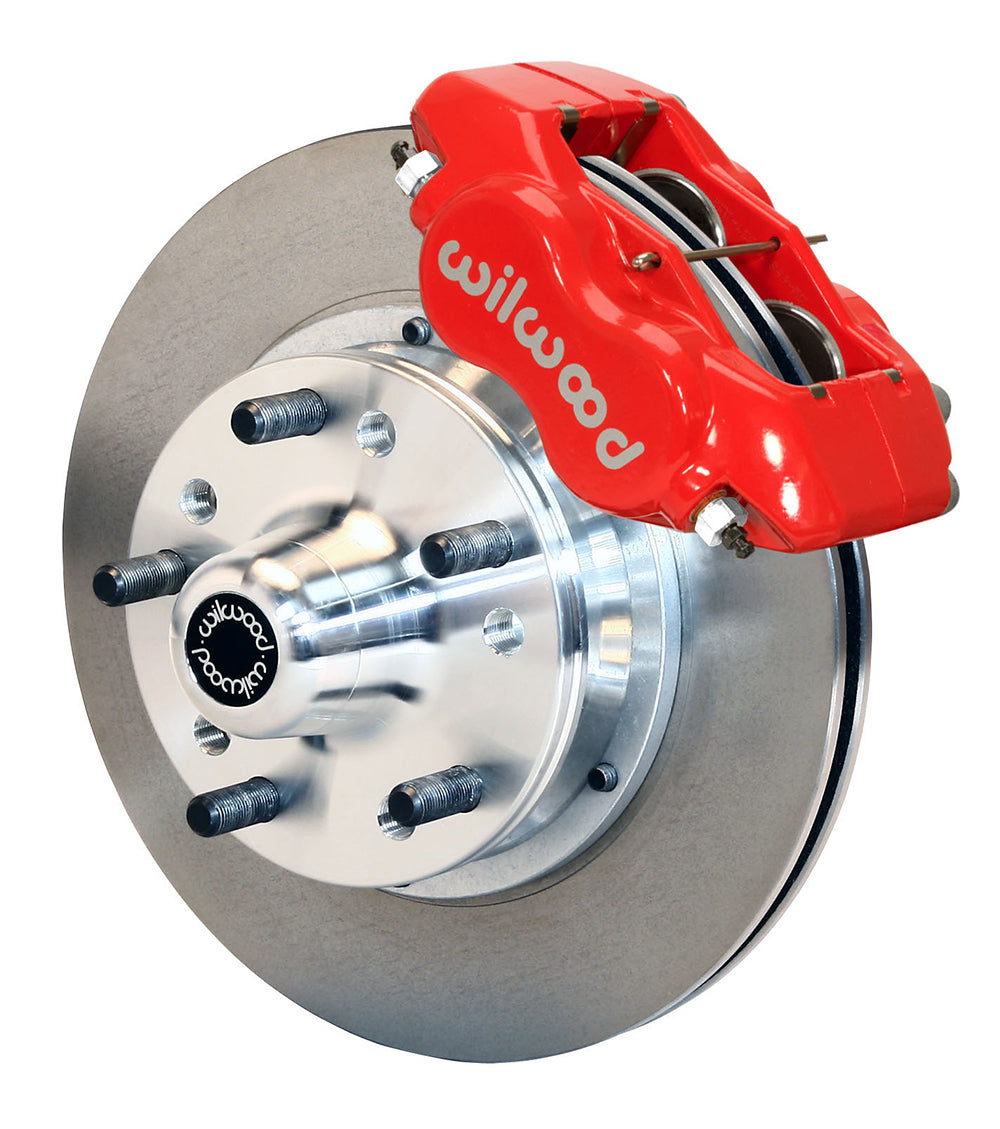

Wilwood Front Red Dynalite Brakes, 11-Inch Plain-Rotor Hub Kit for ProSpindle

This red Dynalite kit uses plain-face 11-inch rotors for the Wilwood ProSpindle front-brake arrangement. The four-piston calipers are lug mounted, and the included hubs accept either of the specified five-lug patterns without changing the spindle requirement. Wilwood Engineering, based in Camarillo, California, was founded in 1977 by Bill Wood. It designs and manufactures disc brake systems for specialized, motorsport and street-performance applications, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines. These parts should be selected together to meet the complete brake system’s requirements.

Technical Details

• Manufacturer part number: 140-9917-R
• Included hub patterns: 5 x 4.50 inches (5 x 114.3 mm) and 5 x 4.75 inches (5 x 120.65 mm); 1/2-20 wheel studs
• Published OE hub offset: +0.10 inch per side; account for outward wheel movement

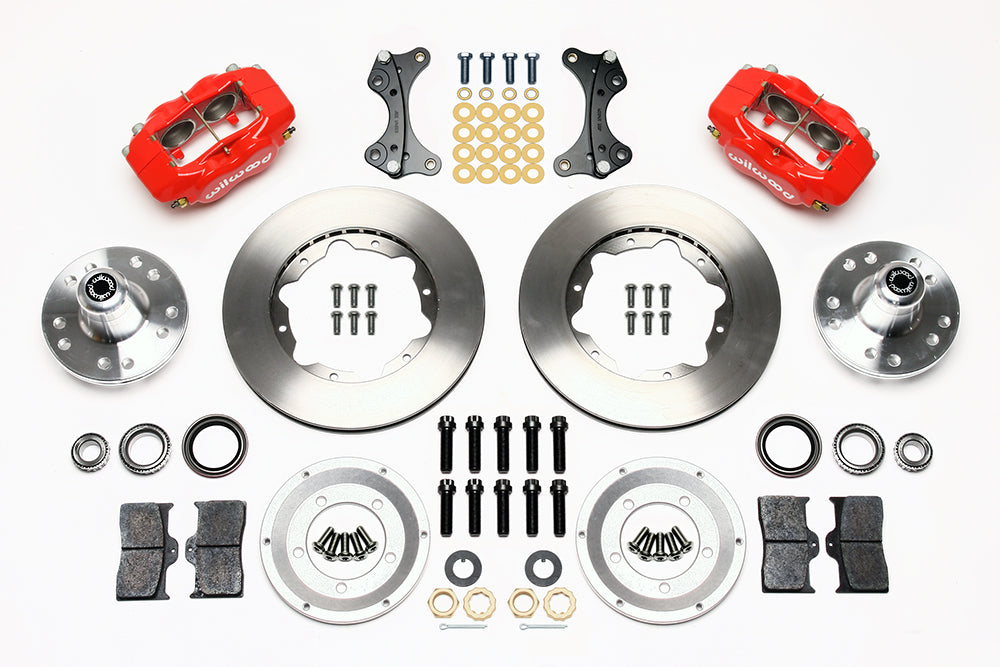

• Included: hubs, bearings, seals, dust caps and brake mounting hardware
• Not included: spindles, master cylinder, booster or brake flexlines
• Position and package: front brake and hub kit; one kit services both sides
• Calipers: Forged Dynalite Internal, 4 pistons, forged aluminum bodies with stainless-steel pistons
• Finish: Red Powder Coat
• Rotors: 11.00 x 0.81 inches, vented iron; Plain Face faces
• Caliper mounting: lug; hydraulic inlet 1/8-27 NPT
• Included friction: BP10 pads
• Wheel-diameter guide: 14 inches; actual wheel must pass the manufacturer clearance template
• Supported spindles: Wilwood standard-height ProSpindle 830-10832 or two-inch-drop ProSpindle 830-9807; spindles sold separately

Fitment & Compatibility

The installed ProSpindle governs the mounting procedure. Verify its height, steering-arm orientation and available wheel space; the supplied dual-pattern hubs do not make this a universal front brake conversion. Compatible spindle part numbers are 830-10832 for standard height and 830-9807 for the two-inch drop. The published +0.10-inch hub offset is per side and must be included in the wheel/fender clearance assessment.

If the wheel center overhangs the hub face, Wilwood requires the separate 6.60-inch-diameter x 0.20-inch steel spacer 300-11961. For stamped-steel wheels that do not overhang the hub, the instructions recommend the 6.15-inch x 0.09-inch hub shield 300-10716. Verify wheel support, lug engagement and the complete wheel-clearance template. OE rubber hoses do not adapt directly; fit correctly routed, compatible braided flexlines.

Wilwood kit specifications · Manufacturer installation instructions and wheel-clearance diagram.

For help planning the installation, PMB Performance draws on more than 20 years of experience with brake components. Send the relevant spindle, rear-axle and wheel specifications for a compatibility review.
