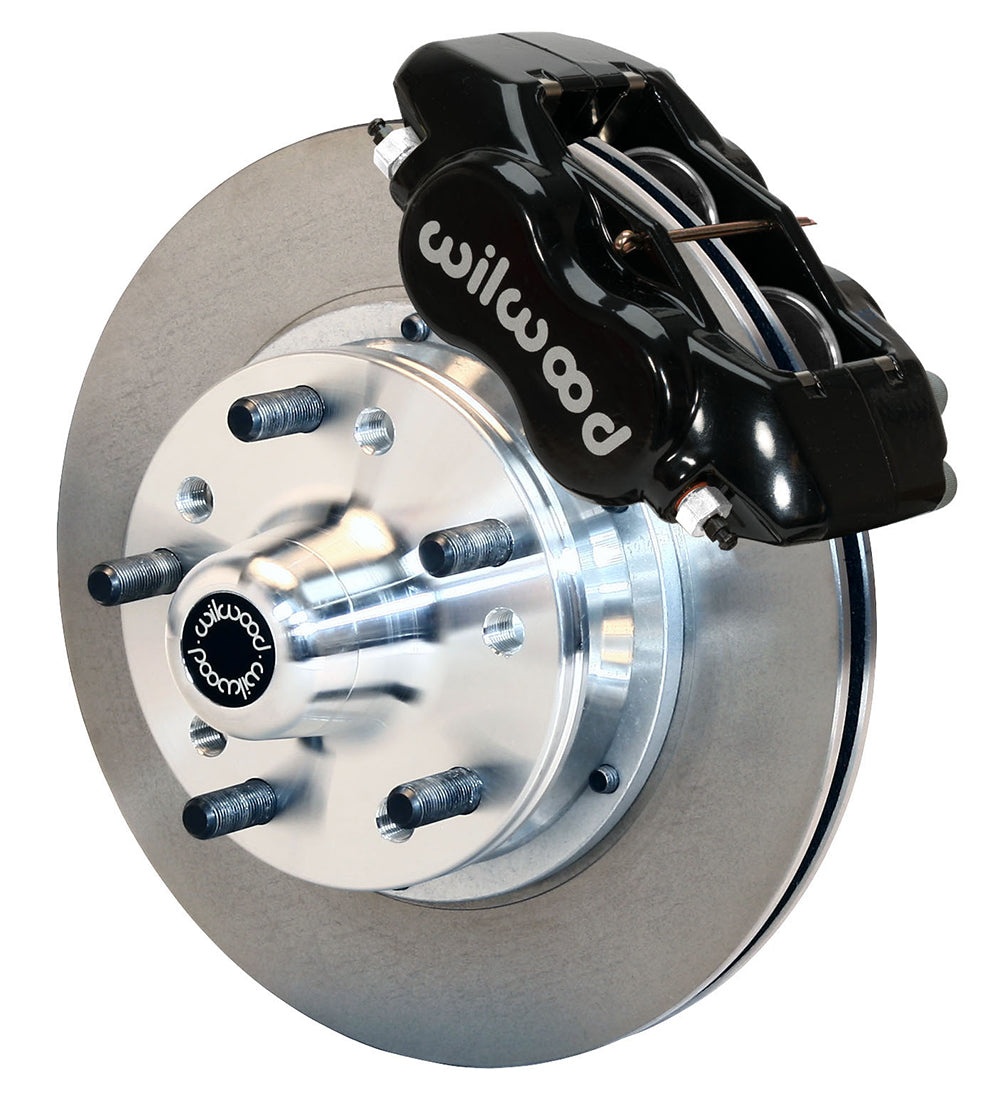

Wilwood Front Dynalite ProSpindle Hub Kit, Black Calipers and 11-Inch Plain Rotors

This front hub kit builds an 11-inch plain-rotor brake package around Wilwood ProSpindles. Black Forged Dynalite four-piston calipers, BP10 pads and dual-pattern hubs are supplied, with the spindle itself selected separately for the chassis. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems, with calipers and brake rotors complemented by master cylinders, valves, fittings and brake lines. That range supports specialized applications as well as motorsport and street-performance vehicles; the entire brake system determines component selection.

Technical Details

• Manufacturer part number: 140-9917
• Caliper mounting: lug; hydraulic inlet 1/8-27 NPT
• Included friction: BP10 pads
• Wheel-diameter guide: 14 inches; actual wheel must pass the manufacturer clearance template
• Supported spindles: Wilwood standard-height ProSpindle 830-10832 or two-inch-drop ProSpindle 830-9807; spindles sold separately
• Included hub patterns: 5 x 4.50 inches (5 x 114.3 mm) and 5 x 4.75 inches (5 x 120.65 mm); 1/2-20 wheel studs
• Published OE hub offset: +0.10 inch per side; account for outward wheel movement

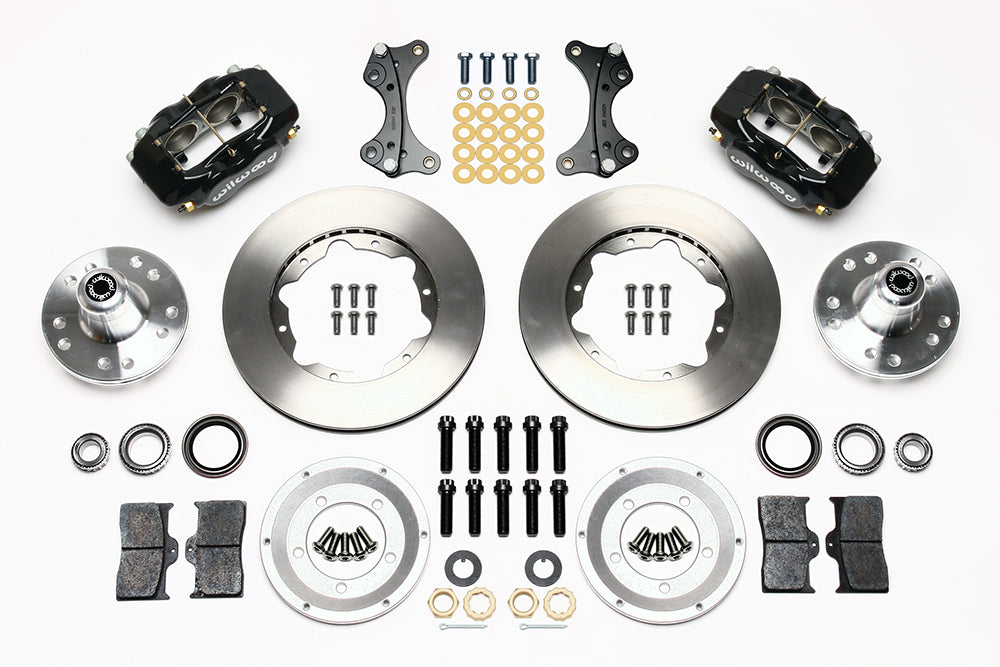

• Included: hubs, bearings, seals, dust caps and brake mounting hardware
• Not included: spindles, master cylinder, booster or brake flexlines
• Position and package: front brake and hub kit; one kit services both sides
• Calipers: Forged Dynalite Internal, 4 pistons, forged aluminum bodies with stainless-steel pistons
• Finish: Black Powder Coat
• Rotors: 11.00 x 0.81 inches, vented iron; Plain Face faces

Fitment & Compatibility

Both supported ProSpindle heights are covered, but their bracket and steering-arm assembly steps differ. Identify the spindle first, then use the corresponding installation figures; a similar-looking original spindle is not an automatic substitute. Compatible spindle part numbers are 830-10832 for standard height and 830-9807 for the two-inch drop. The published +0.10-inch hub offset is per side and must be included in the wheel/fender clearance assessment.

If the wheel center overhangs the hub face, Wilwood requires the separate 6.60-inch-diameter x 0.20-inch steel spacer 300-11961. For stamped-steel wheels that do not overhang the hub, the instructions recommend the 6.15-inch x 0.09-inch hub shield 300-10716. Verify wheel support, lug engagement and the complete wheel-clearance template. OE rubber hoses do not adapt directly; fit correctly routed, compatible braided flexlines.

Wilwood kit specifications · Manufacturer installation instructions and wheel-clearance diagram.

PMB Performance has over 20 years of experience working through brake fitment. Contact us with the vehicle’s actual brake hardware and wheel measurements if you need assistance selecting the correct package.
