Wilwood Rear GM 1500 AERO4 Kit 2000–2007, Red Calipers with 14.25-Inch Drilled/Slotted Rotors

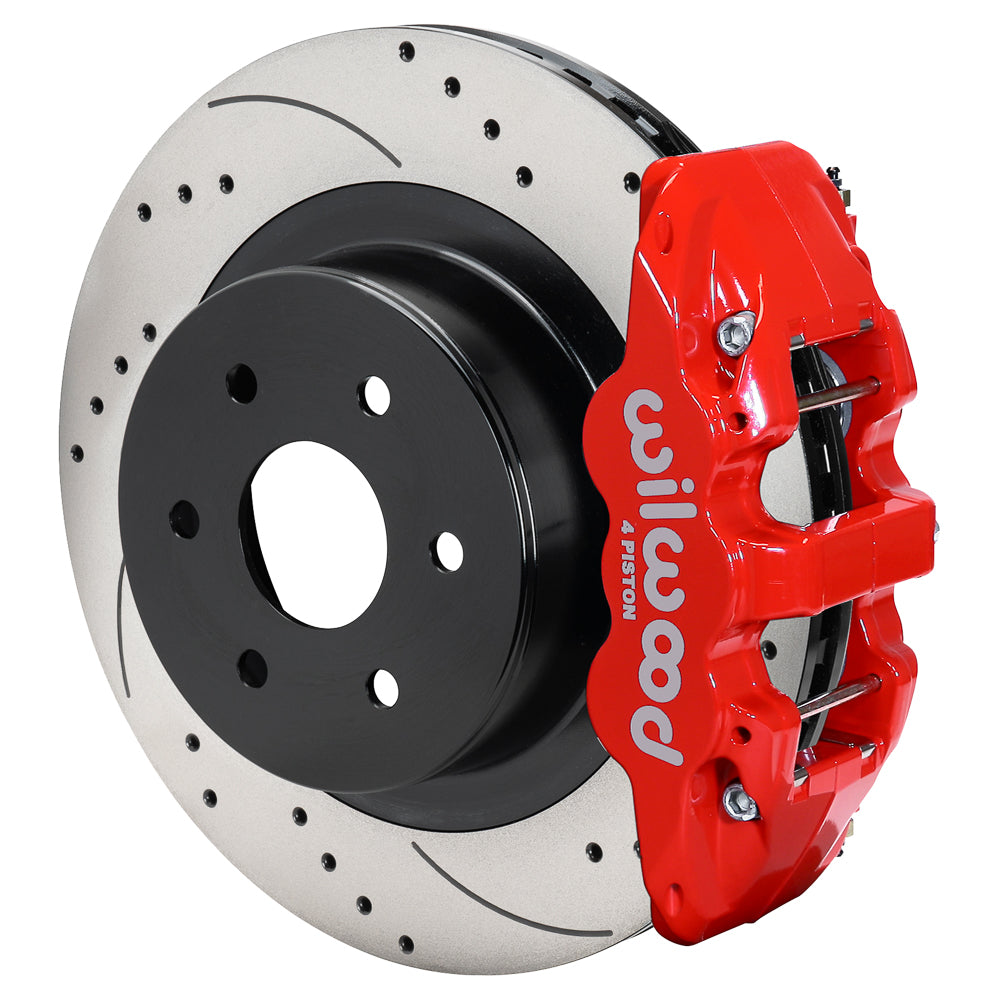

Red AERO4 calipers are paired with 14.25-inch SRP drilled-and-slotted rotors in this rear service-brake package. Fitment is restricted to the listed GM 1500 configurations with factory dual-piston rear discs, and the existing parking brake remains part of the installation. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form Wilwood Engineering’s disc brake range. Bill Wood founded the Camarillo, California company in 1977; it designs and manufactures systems for motorsport, street-performance and specialized applications. Matching the component to the rest of the brake package is fundamental to selection.

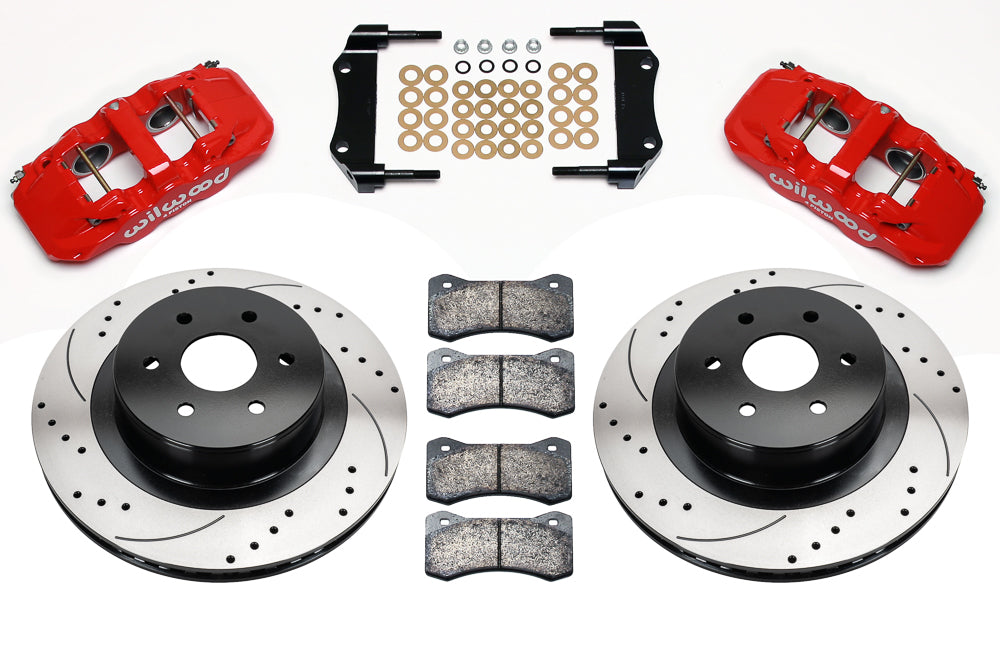

Technical Details

• Manufacturer part number: 140-9838-DR
• Finish: Red Powder Coat
• Rotors: 14.25 x 1.25 inches, vented iron; SRP Drilled & Slotted faces
• Caliper mounting: radial; hydraulic inlet 1/8-27 NPT
• Included friction: BP20 pads
• Wheel-diameter guide: 18 inches; actual wheel must pass the manufacturer clearance template
• Application: OE rear discs with dual-piston factory calipers and the specified six-lug axle arrangement
• Rotor-hat wheel-stud clearance pattern: 6 x 5.5 inches (6 x 139.7 mm); this does not convert the vehicle’s hub bolt pattern
• Hat stud-hole clearance: approximately 0.63 inch; not a wheel-stud thread specification
• Existing OE hub and parking-brake mechanism retained; mounting hardware included
• Not included: replacement hubs, spindles, master cylinder, booster or brake flexlines
• Position and package: rear service-brake kit; one kit services both sides
• Calipers: AERO4, 4 pistons, forged aluminum bodies with stainless-steel pistons

Fitment & Compatibility

Use the table below for the exact GM 1500 truck or SUV, year and brake-option combination. Listed applications span selected 2000–2007 vehicles, including restrictions for 2000 new-body models, Denali exclusions and 2007 Classic-body trucks. The OE rear dual-piston disc-brake requirement applies throughout; model name or six-lug wheels alone do not establish fitment. These are rear service brakes for the original dual-piston rear-disc arrangement. Retain the existing parking-brake shoes and mechanism in serviceable condition, and verify that the wheel clears the red caliper and the larger rotor throughout rotation.

Brake flexlines are separate. The current kit page references rear hose kits 220-9886 and 220-11196, while installation sheet DS570 references 220-8999 and 220-11196 with year guidance. Confirm the correct rear hose kit with Wilwood for the actual vehicle and brake assembly before ordering the lines.

Wilwood kit specifications · Manufacturer installation instructions and wheel-clearance diagram.

PMB Performance brings 20+ years of experience to brake selection. The spindle or axle configuration, wheel dimensions and hydraulic layout give us the information needed to review an application.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. For OE rears with dual piston calipers.
2. This is a rear service-brake kit. Front brake-kit flexline references do not identify the hoses required for this rear installation.
3. Line kit included (manufacturer): None
4. Rear flexlines are sold separately. Manufacturer product-page and DS570 hose references differ; confirm the correct rear hose kit for the exact vehicle and brake assembly.
5. Verify the specific model-year and body-style application, OE dual-piston rear discs and rear hose requirements before installation.
