Wilwood Rear AERO4 Brake Kit for Selected GM 1500 Trucks/SUVs 2000–2007, Black Calipers and 14.25-Inch Slotted Rotors

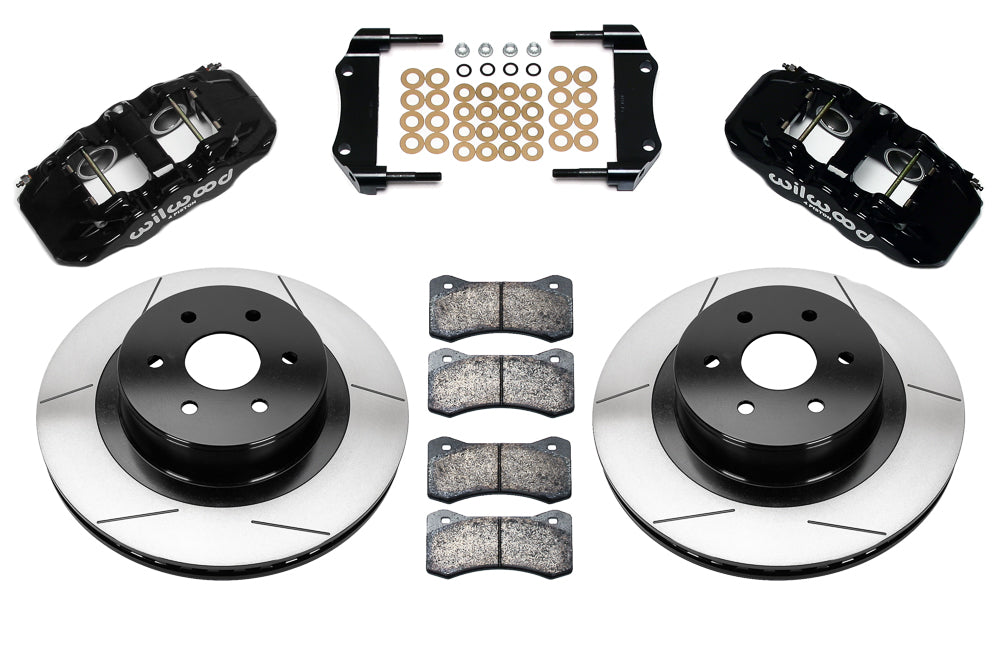

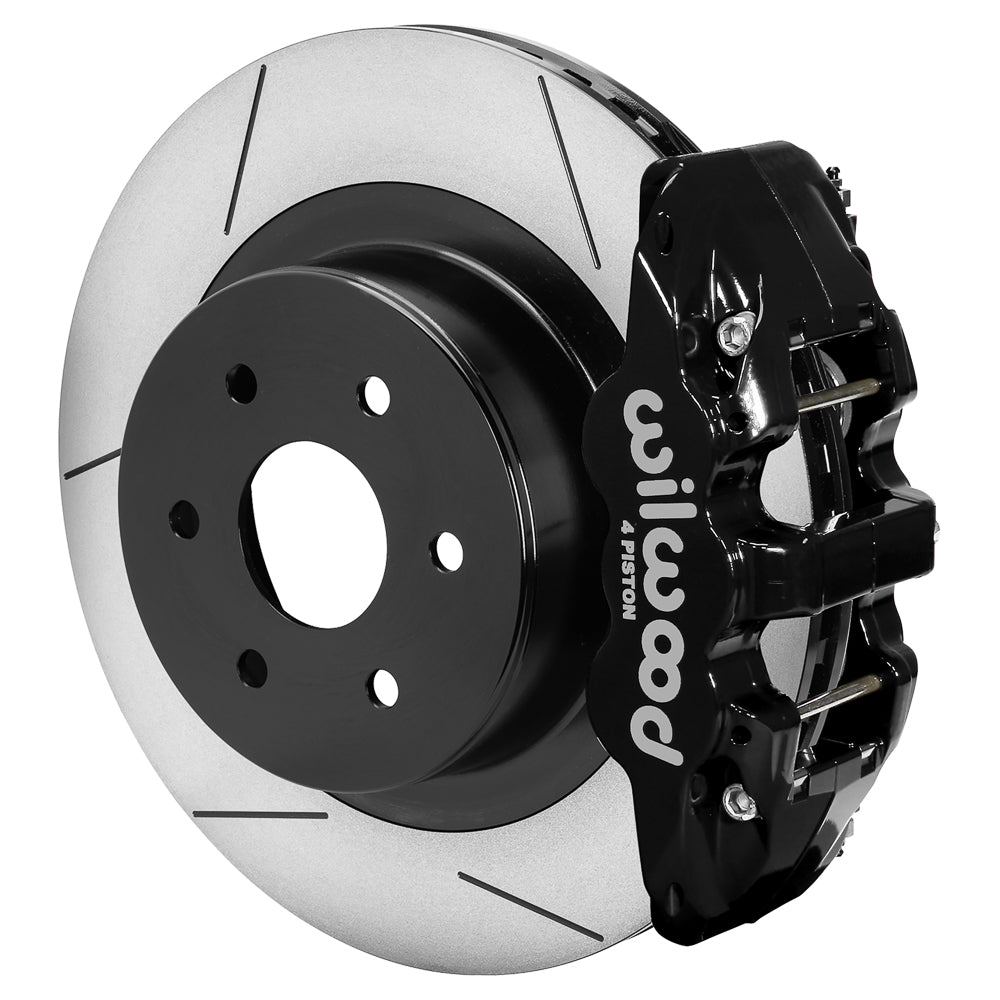

This rear AERO4 kit replaces the service brakes on the listed six-lug GM 1500 trucks and SUVs equipped with OE dual-piston rear calipers. Black four-piston calipers and 14.25-inch GT slotted rotors work with the retained factory parking-brake assembly. The manufacturer is Wilwood Engineering, established in 1977 by Bill Wood and based in Camarillo, California. Its design and manufacturing work covers disc brake systems and components—calipers, brake rotors, master cylinders, valves, fittings and brake lines—for street-performance, motorsport and specialized applications. Selection must account for how those components operate together.

Technical Details

• Manufacturer part number: 140-9838
• Position and package: rear service-brake kit; one kit services both sides
• Calipers: AERO4, 4 pistons, forged aluminum bodies with stainless-steel pistons
• Finish: Black Powder Coat
• Rotors: 14.25 x 1.25 inches, vented iron; GT Slotted faces
• Caliper mounting: radial; hydraulic inlet 1/8-27 NPT
• Included friction: BP20 pads
• Wheel-diameter guide: 18 inches; actual wheel must pass the manufacturer clearance template
• Application: OE rear discs with dual-piston factory calipers and the specified six-lug axle arrangement
• Rotor-hat wheel-stud clearance pattern: 6 x 5.5 inches (6 x 139.7 mm); this does not convert the vehicle’s hub bolt pattern
• Hat stud-hole clearance: approximately 0.63 inch; not a wheel-stud thread specification
• Existing OE hub and parking-brake mechanism retained; mounting hardware included
• Not included: replacement hubs, spindles, master cylinder, booster or brake flexlines

Fitment & Compatibility

Use the table below for the exact GM 1500 truck or SUV, year and brake-option combination. Listed applications span selected 2000–2007 vehicles, including restrictions for 2000 new-body models, Denali exclusions and 2007 Classic-body trucks. The OE rear dual-piston disc-brake requirement applies throughout; model name or six-lug wheels alone do not establish fitment. Check the original rear caliper configuration before committing to the larger rotor. The kit retains the OE parking-brake assembly, so inspect and adjust that mechanism as part of the conversion rather than assuming a new parking brake is included.

Brake flexlines are separate. The current kit page references rear hose kits 220-9886 and 220-11196, while installation sheet DS570 references 220-8999 and 220-11196 with year guidance. Confirm the correct rear hose kit with Wilwood for the actual vehicle and brake assembly before ordering the lines.

Wilwood kit specifications · Manufacturer installation instructions and wheel-clearance diagram.

PMB Performance has more than 20 years of brake-system experience. Share the spindle or rear-brake configuration and wheel details if you need help confirming this kit before ordering.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. For OE rears with dual piston calipers.
2. This is a rear service-brake kit. Front brake-kit flexline references do not identify the hoses required for this rear installation.
3. Line kit included (manufacturer): None
4. Rear flexlines are sold separately. Manufacturer product-page and DS570 hose references differ; confirm the correct rear hose kit for the exact vehicle and brake assembly.
5. Verify the specific model-year and body-style application, OE dual-piston rear discs and rear hose requirements before installation.
