Product details

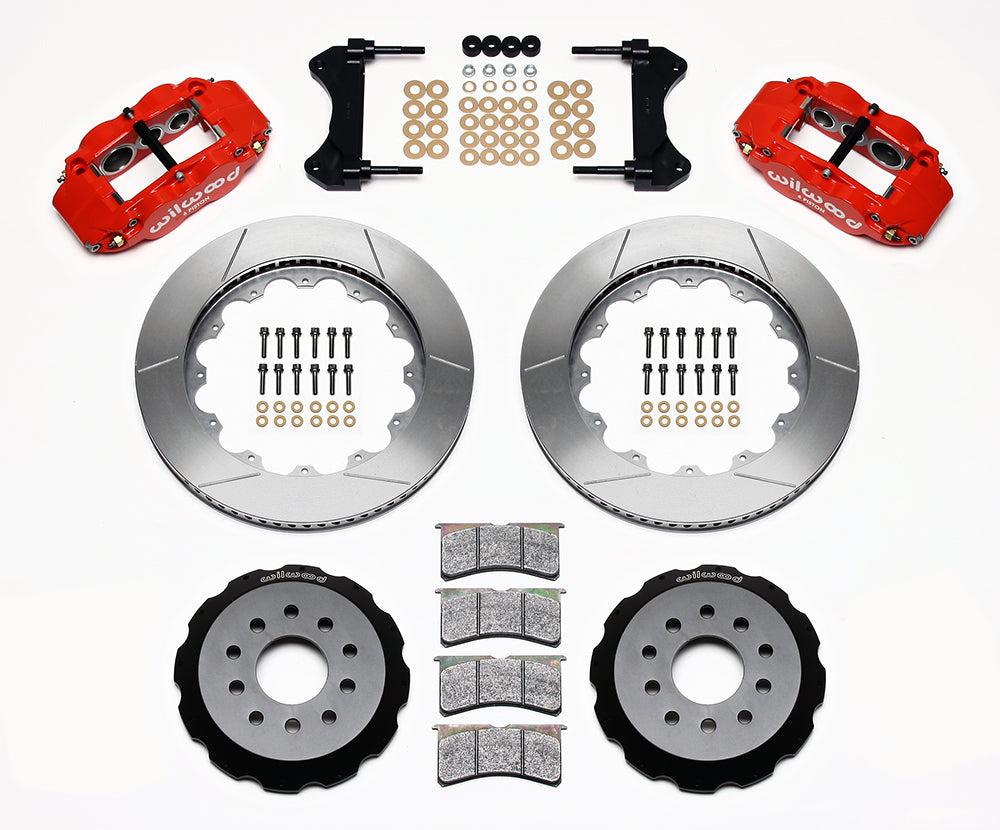

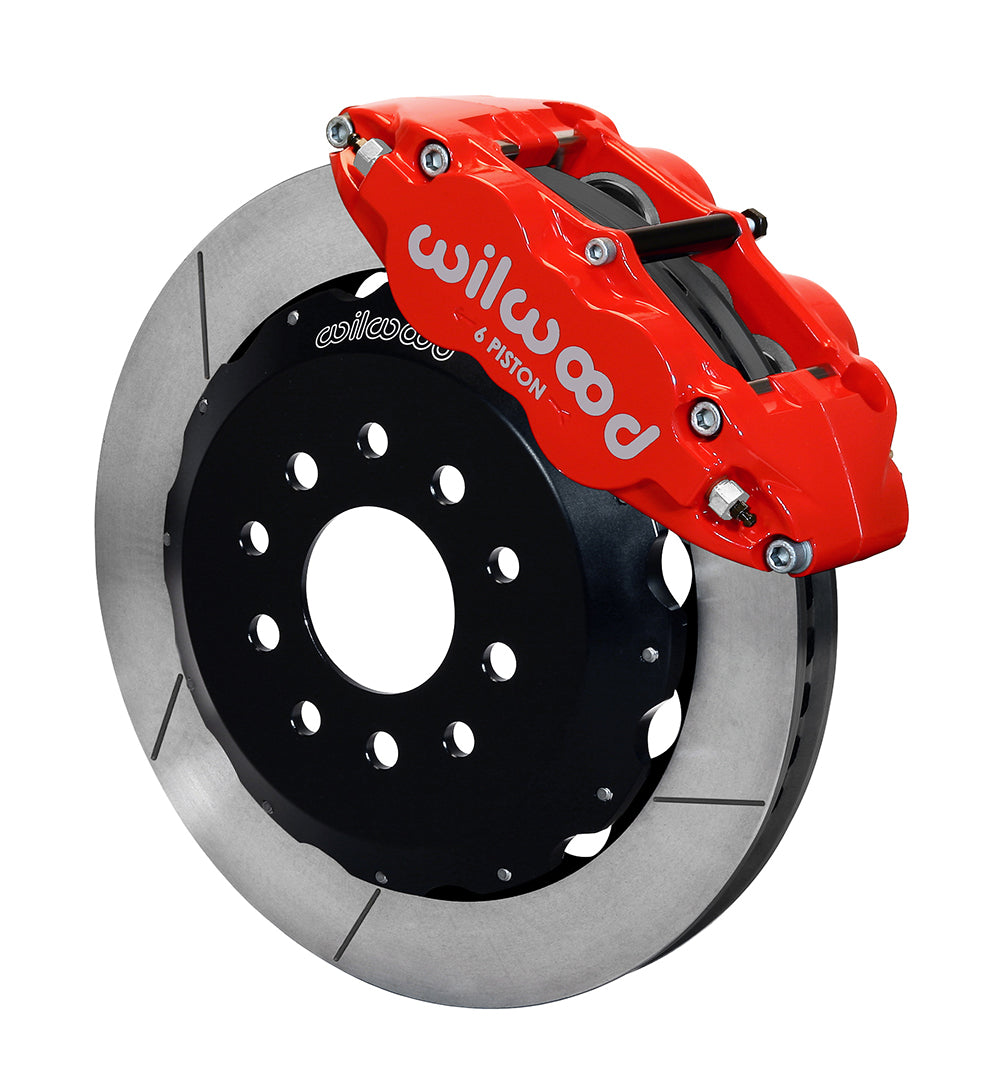

GT slotted rotor faces and red Superlite calipers distinguish this 14-inch Camaro/Firebird front package. Its 72-curved-vane rings, BP-10 pads and application brackets require the documented later F-body spindle and sufficient wheel clearance. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. The complete braking arrangement determines which individual components are appropriate.
Technical Details
Calipers and friction components
- Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.62 / 1.12 / 1.12 in
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: GT Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: aluminum; Black E-Coat; 0.880-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Hat wheel-stud clearance holes: 0.560 / 0.520 in, corresponding to the listed hat patterns
Kit contents and separate parts
- Manufacturer part number: 140-9834-R
- Supply: one kit with brake components for both sides of the front axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Separate hose kit application reference: 220-6746; verify the vehicle connections and routing
Fitment & Compatibility
This 14-inch front package requires the later F-body spindle with original twin-piston caliper mounting. Confirm the 1998–2002 Camaro/Firebird application or the specifically converted 1993–1997 Camaro entry in the table below. Factory early single-piston spindles are excluded; DS-567 identifies the required later castings as 18023021 and 18023022. The kit retains the matching hubs. Check the larger rotor envelope and fit the separate 220-6746 braided front hoses with routing clear of suspension and wheels. Nominal minimum wheel diameter: 18 in; 457.2 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance has supported brake and restoration projects for more than 20 years. Share the vehicle and installed hardware with us for help selecting a compatible package.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1993-1997 | Chevrolet | Camaro | w/ conversion to 1998-2002 F-Body spindles. Disc Rear. | Disc | Disc | Front Kit | 1, 2, 3 |
| 1993-1997 | Chevrolet | Camaro | w/ conversion to 1998-2002 F-Body spindles. Drum Rear. | Disc | Drum | Front Kit | 1, 2, 3 |
| 1998-2002 | Chevrolet | Camaro | Disc Brake Rear | Disc | Disc | Front Kit | 1, 2, 3 |
| 1998-2002 | Pontiac | Firebird | All | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- 14" Rotor
- Line kit included (manufacturer): None
- Front line-kit reference: 220-6746
