Product details

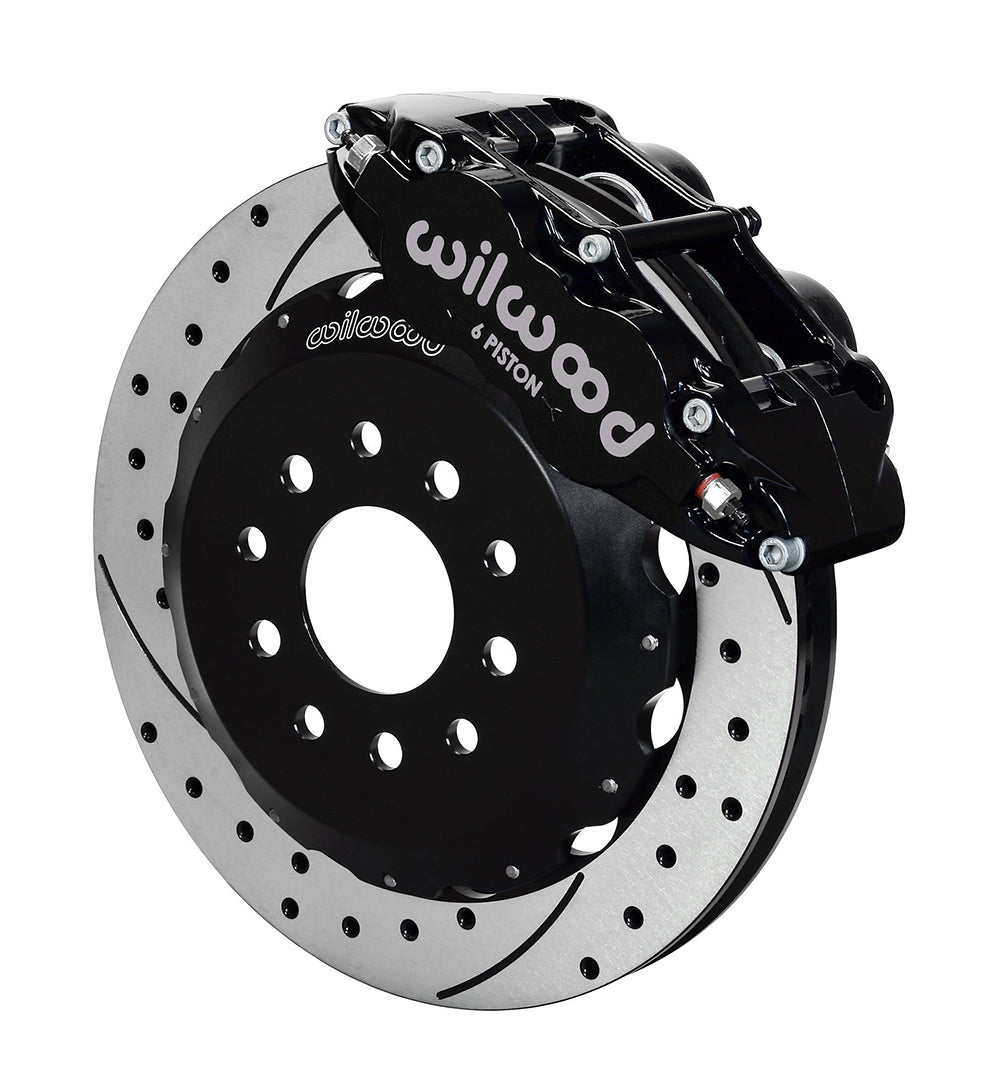

This black-caliper F-body kit pairs six-piston Superlites with 14.00-inch SRP rotors. It requires the later front spindle specified in the guide; a 1993–1997 Camaro must first receive the documented spindle conversion. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among the disc brake systems and components Wilwood Engineering designs and manufactures. The Camarillo, California company was founded by Bill Wood in 1977 and supports motorsport, street-performance and specialized applications. Select the individual parts around the requirements of the entire braking system.
Technical Details

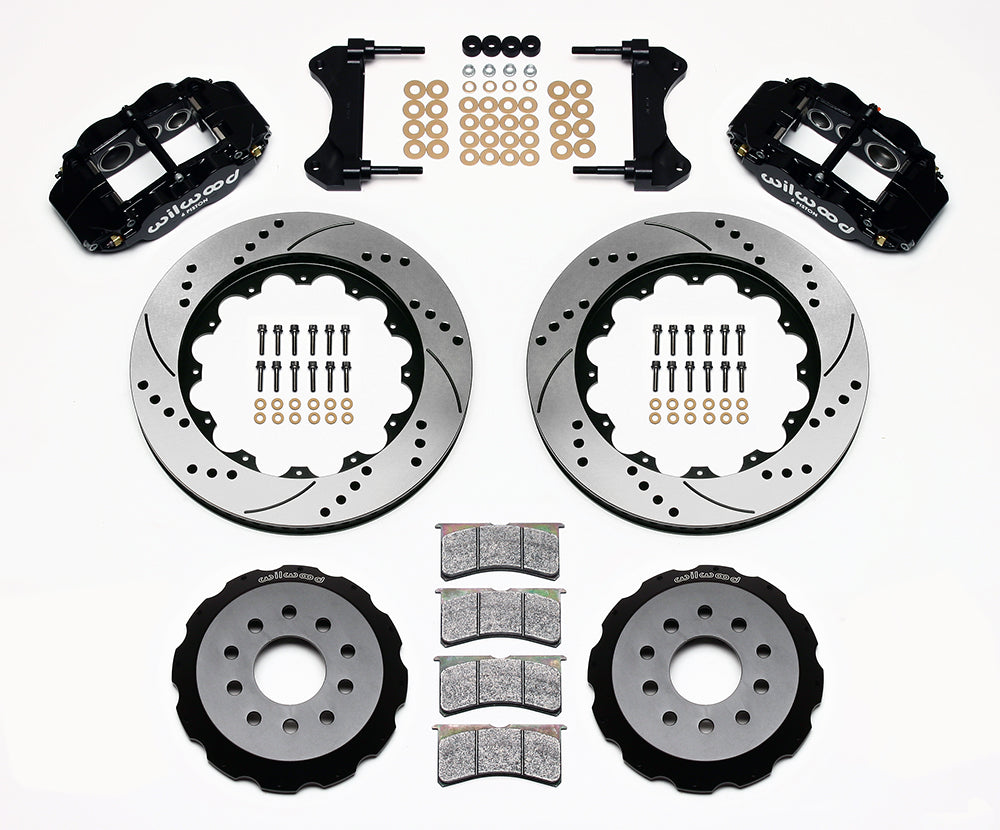

Kit contents and separate parts
- Manufacturer part number: 140-9834-D
- Supply: one kit with brake components for both sides of the front axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Separate hose kit application reference: 220-6746; verify the vehicle connections and routing
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: aluminum; Black E-Coat; 0.880-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Hat wheel-stud clearance holes: 0.560 / 0.520 in, corresponding to the listed hat patterns
Calipers and friction components
- Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.62 / 1.12 / 1.12 in
Fitment & Compatibility
This 14-inch front package requires the later F-body spindle with original twin-piston caliper mounting. Confirm the 1998–2002 Camaro/Firebird application or the specifically converted 1993–1997 Camaro entry in the table below. Factory early single-piston spindles are excluded; DS-567 identifies the required later castings as 18023021 and 18023022. The kit retains the matching hubs. Check the larger rotor envelope and fit the separate 220-6746 braided front hoses with routing clear of suspension and wheels. Nominal minimum wheel diameter: 18 in; 457.2 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
For help matching the axle, spindle and brake components, contact PMB Performance. Our team brings over 20 years of experience in brakes and vehicle restoration.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1993-1997 | Chevrolet | Camaro | w/ conversion to 1998-2002 F-Body spindles. Disc Rear. | Disc | Disc | Front Kit | 1, 2, 3 |
| 1993-1997 | Chevrolet | Camaro | w/ conversion to 1998-2002 F-Body spindles. Drum Rear. | Disc | Drum | Front Kit | 1, 2, 3 |
| 1998-2002 | Chevrolet | Camaro | Disc Brake Rear | Disc | Disc | Front Kit | 1, 2, 3 |
| 1998-2002 | Pontiac | Firebird | All | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- 14" Rotor
- Line kit included (manufacturer): None
- Front line-kit reference: 220-6746
