Product details

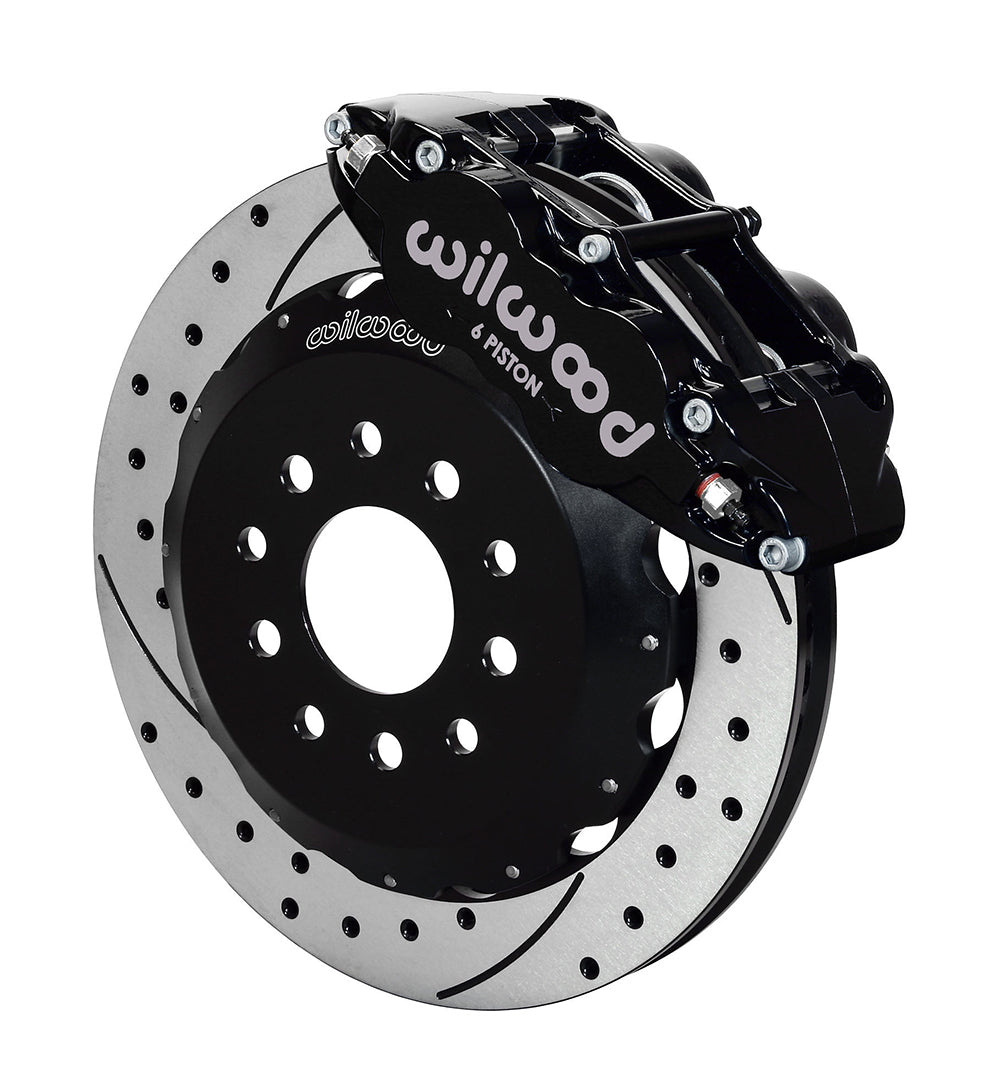

This black-caliper F-body front kit uses SRP drilled and slotted rotors with aluminum hats. Its brackets fit the later spindle originally used with twin-piston calipers, making spindle identity essential on a converted earlier car. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood, its range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines. Component selection must account for the requirements of the complete brake system.
Technical Details
Calipers and friction components
- Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

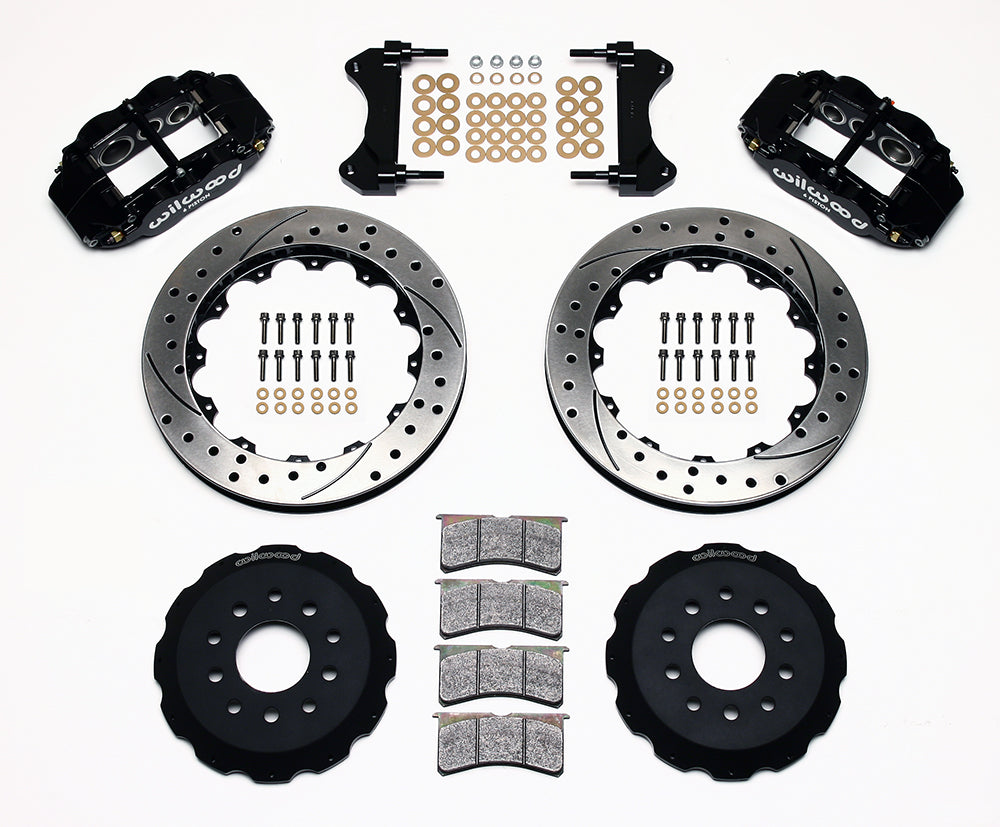

Kit contents and separate parts
- Manufacturer part number: 140-9833-D
- Supply: one kit with brake components for both sides of the front axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Separate hose kit application reference: 220-6746; verify the vehicle connections and routing
Rotors and mounting dimensions
- Rotors: 13.06 in; 331.72 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 48 curved
- Hats: aluminum; Black E-Coat; 0.880-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Hat wheel-stud clearance holes: 0.560 / 0.520 in, corresponding to the listed hat patterns
Fitment & Compatibility
Fits the 1998–2002 Camaro/Firebird front spindles originally equipped with twin-piston calipers. DS-566 identifies castings 18023021 and 18023022. Original 1993–1997 single-piston spindles do not fit; the earlier Camaro rows in the table below require conversion to the later F-body spindle. Retain the compatible hubs, confirm wheel clearance and select separate 220-6746 front flexlines. Check all year, original rear-brake and conversion qualifications in the table before ordering. Nominal minimum wheel diameter: 17 in; 431.8 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Our team at PMB Performance draws on 20+ years of brake and restoration work. We can help check the mounting requirements and component choices for your build.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1993-1997 | Chevrolet | Camaro | w/ conversion to 1998-2002 F-Body spindles. Disc Rear. | Disc | Disc | Front Kit | 1, 2 |
| 1993-1997 | Chevrolet | Camaro | w/ conversion to 1998-2002 F-Body spindles. Drum Rear. | Disc | Drum | Front Kit | 1, 2 |
| 1998-2002 | Chevrolet | Camaro | Disc Brake Rear | Disc | Disc | Front Kit | 1, 2 |
| 1998-2002 | Pontiac | Firebird | All | Disc | Disc | Front Kit | 1, 2 |
Application Notes
- Line kit included (manufacturer): None
- Front line-kit reference: 220-6746
