Product details

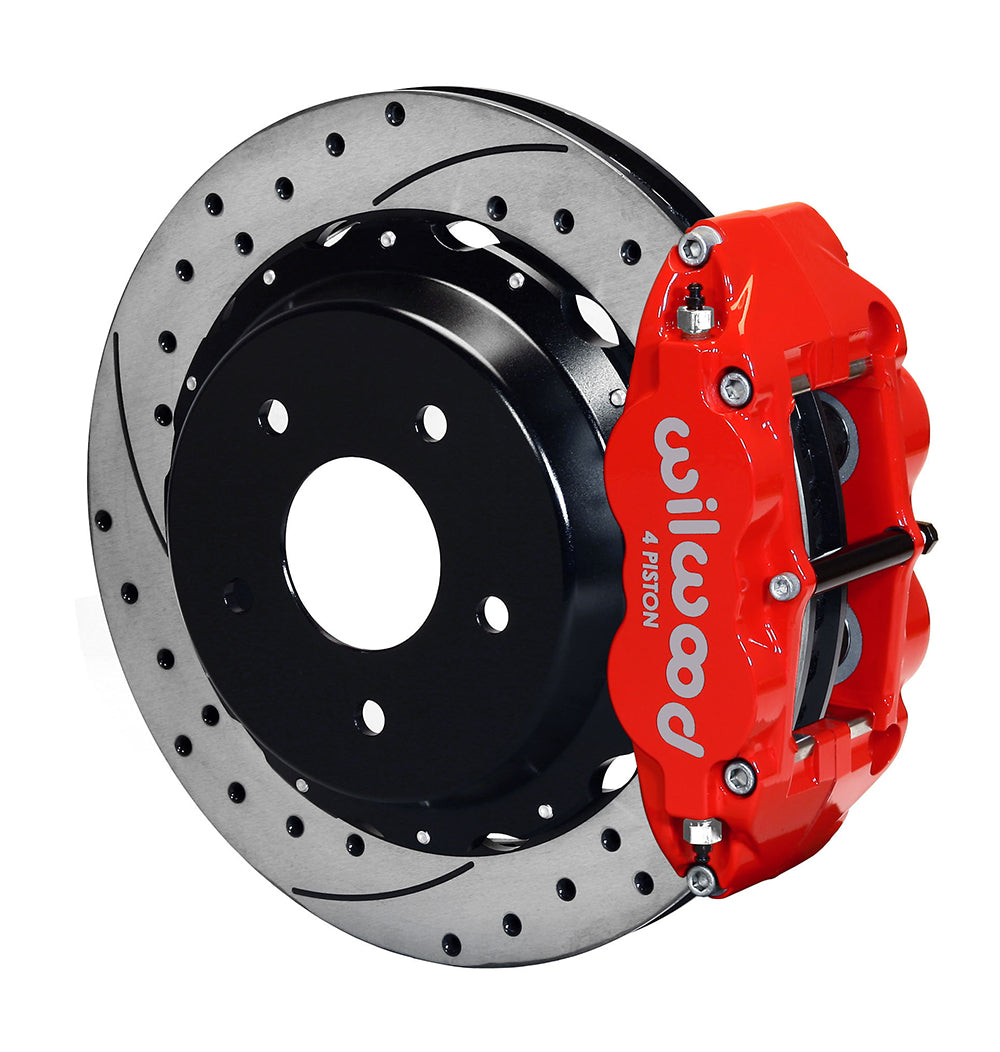

Red Superlite calipers pair with SRP rotor rings in this 1998–2002 F-body rear package. The 12.88 x 1.10-inch assembly retains the OE internal parking brake instead of supplying separate shoes and cables. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among the disc brake systems and components Wilwood Engineering designs and manufactures. The Camarillo, California company was founded by Bill Wood in 1977 and supports motorsport, street-performance and specialized applications. Each part must be selected to work with the complete brake system and its requirements.
Technical Details

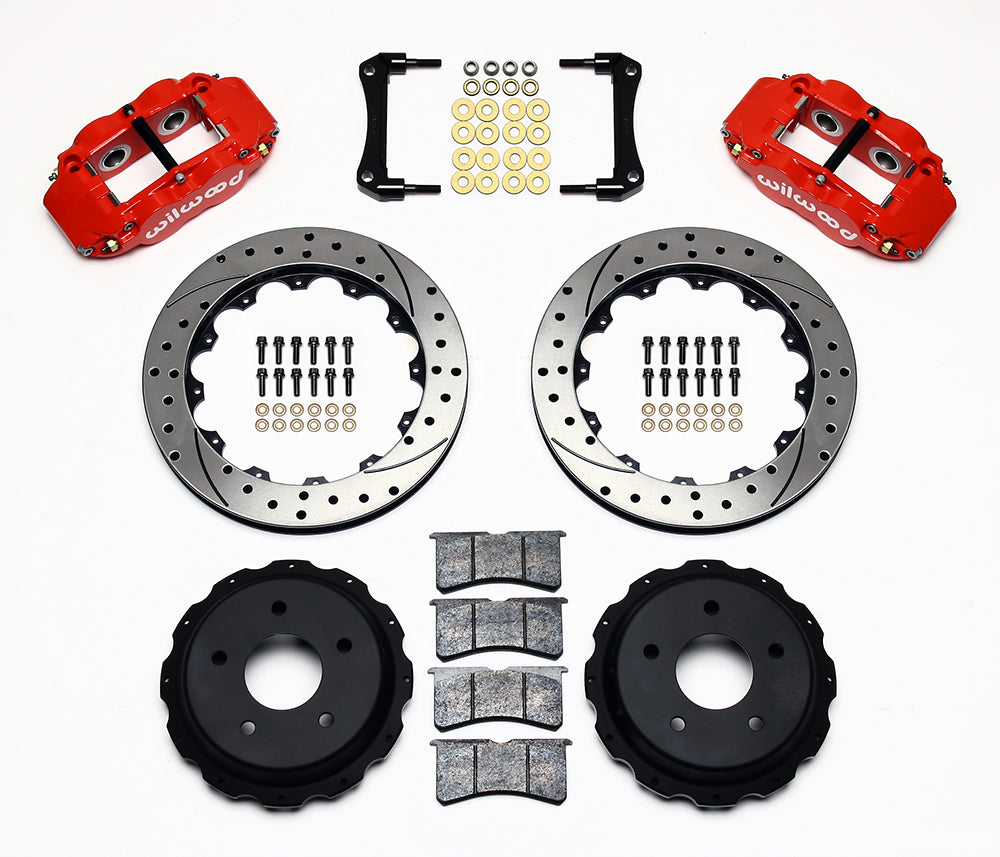

Kit contents and separate parts
- Manufacturer part number: 140-9830-DR
- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Axle offset: 2.75 in; 69.85 mm
- Retains the OE parking brake and uses 1.320-inch-offset aluminum rotor hats.
- Separate hose kit application reference: 220-9882; verify the vehicle connections and routing
Rotors and mounting dimensions
- Rotors: 12.88 in; 327.15 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 48 curved
- Hats: aluminum; Black E-Coat; 1.320-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.75 in; 5 x 120.65 mm
- Hat wheel-stud clearance holes: 0.520 in, corresponding to the listed hat patterns
Calipers and friction components
- Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.12 / 1.12 in
Fitment & Compatibility
The table below covers the 1998–2002 Camaro and Firebird rear applications. Match the original axle and 2.75-inch offset, retaining the factory internal parking-brake mechanism. Aluminum hats fit the existing five-lug axle arrangement; they do not supply replacement hubs or axle shafts. Inspect the parking hardware and check DS-561 for the wheel envelope and caliper alignment. Hydraulic hoses are separate; the exact kit page lists 220-9882 for these rear applications, and the connections and routing should be verified on the vehicle. Nominal minimum wheel diameter: 17 in; 431.8 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
For help matching the axle, spindle and brake components, contact PMB Performance. Our team brings over 20 years of experience in brakes and vehicle restoration.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1998-2002 | Chevrolet | Camaro | Disc Brake Rear | Disc | Disc | Rear Kit | 1, 2 |
| 1998-2002 | Pontiac | Firebird | All | Disc | Disc | Rear Kit | 1, 2 |
Application Notes
- Line kit included (manufacturer): None
- Rear line-kit reference: 220-9882
