Product details

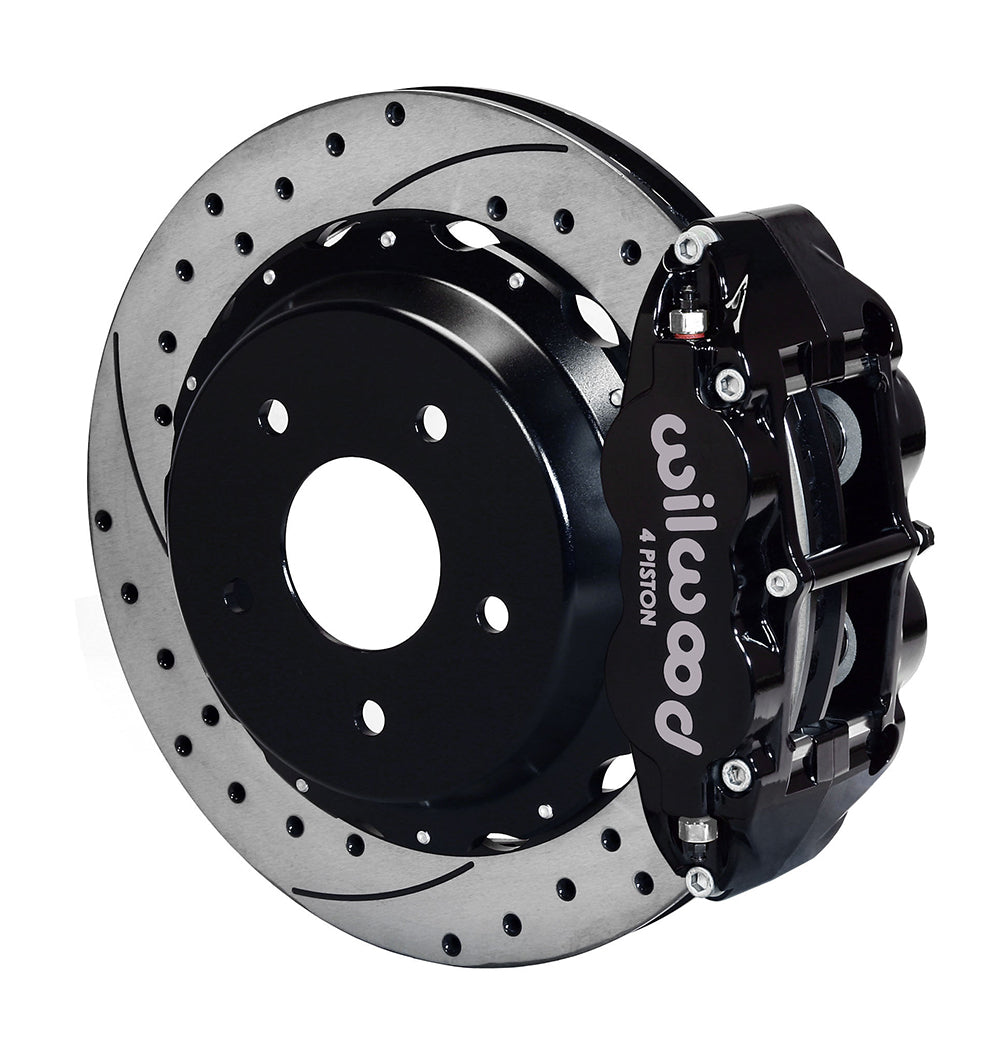

Drilled and slotted 12.88-inch rotors distinguish this black-caliper Camaro/Firebird rear kit. The new service brakes use the original axle and parking mechanism, with aluminum hats and brackets supplying the required mounting geometry. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. The complete braking arrangement determines which individual components are appropriate.
Technical Details
Calipers and friction components
- Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.12 / 1.12 in
Rotors and mounting dimensions
- Rotors: 12.88 in; 327.15 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 48 curved
- Hats: aluminum; Black E-Coat; 1.320-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.75 in; 5 x 120.65 mm
- Hat wheel-stud clearance holes: 0.520 in, corresponding to the listed hat patterns

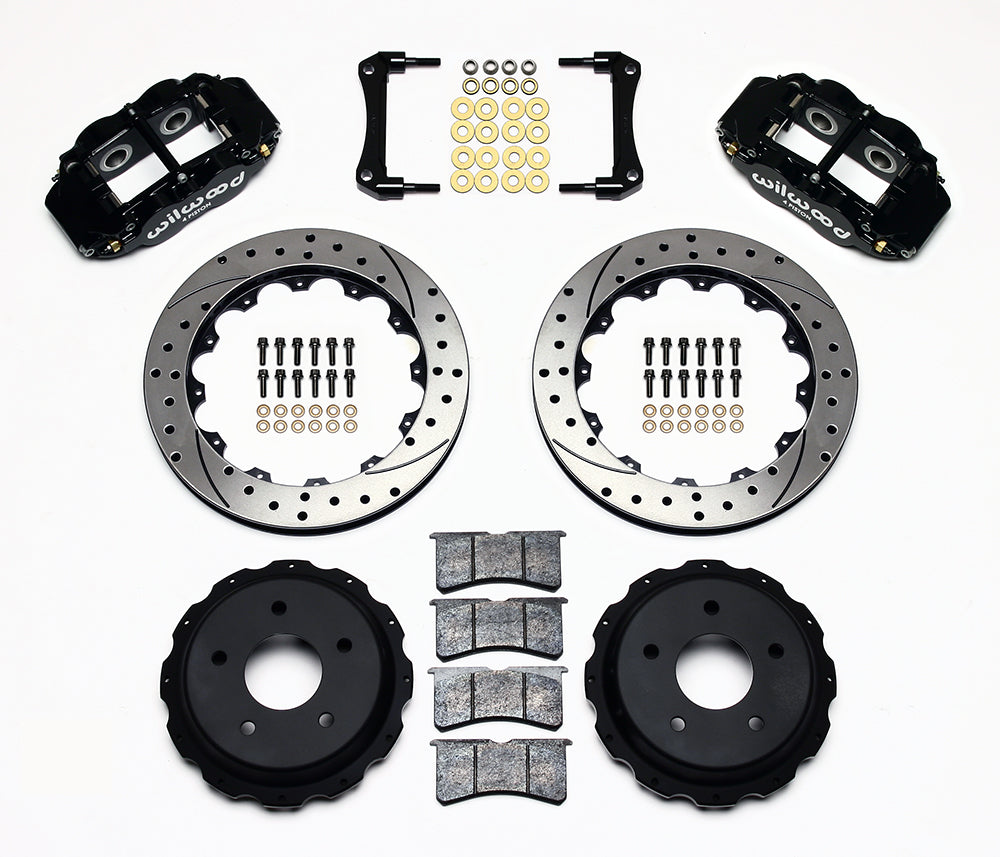

Kit contents and separate parts
- Manufacturer part number: 140-9830-D
- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Axle offset: 2.75 in; 69.85 mm
- Retains the OE parking brake and uses 1.320-inch-offset aluminum rotor hats.
- Separate hose kit application reference: 220-9882; verify the vehicle connections and routing
Fitment & Compatibility
The table below covers the 1998–2002 Camaro and Firebird rear applications. Match the original axle and 2.75-inch offset, retaining the factory internal parking-brake mechanism. Aluminum hats fit the existing five-lug axle arrangement; they do not supply replacement hubs or axle shafts. Inspect the parking hardware and check DS-561 for the wheel envelope and caliper alignment. Hydraulic hoses are separate; the exact kit page lists 220-9882 for these rear applications, and the connections and routing should be verified on the vehicle. Nominal minimum wheel diameter: 17 in; 431.8 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance has supported brake and restoration projects for more than 20 years. Share the vehicle and installed hardware with us for help selecting a compatible package.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1998-2002 | Chevrolet | Camaro | Disc Brake Rear | Disc | Disc | Rear Kit | 1, 2 |
| 1998-2002 | Pontiac | Firebird | All | Disc | Disc | Rear Kit | 1, 2 |
Application Notes
- Line kit included (manufacturer): None
- Rear line-kit reference: 220-9882
