Wilwood Front Brake Package: 1962–1972 Dodge / Plymouth B- and E-Body Drum Spindles, Red FDLI, 12.19-inch Plain Rotors

Plain vented rotors and red four-piston calipers provide this Mopar front conversion. Its included aluminum hubs, bearings and 1/2-20 studs support the new brakes on the specified original B/E-body drum spindles. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. It designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, with calipers, brake rotors, master cylinders, valves, fittings and brake lines in its range. Select the individual parts around the requirements of the entire braking system.

Technical Details

Kit contents and separate parts

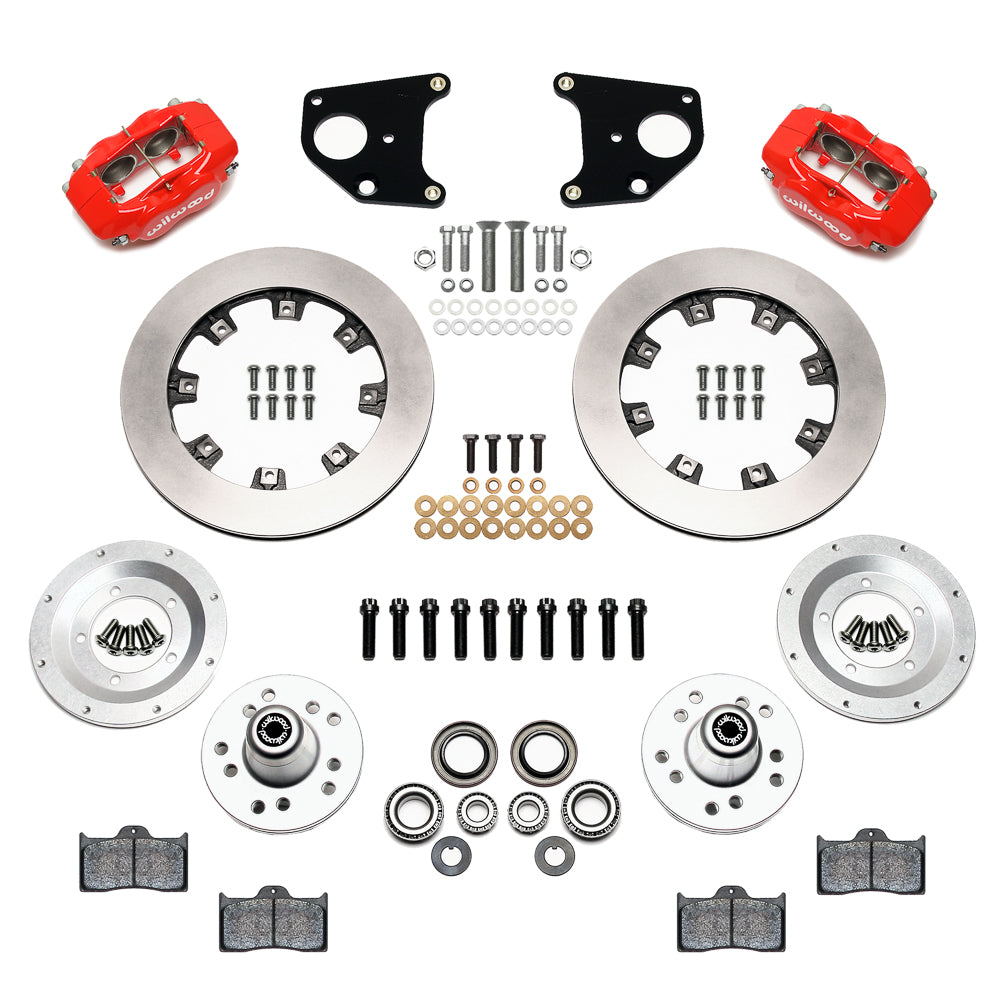

• Manufacturer part number: 140-9828-R
• Supply: one kit with brake components for both sides of the front axle
• Mounting hardware: included
• Hubs: included with bearings and seals
• Spindles, master cylinder and brake booster: not included
• Hydraulic hoses: not included
• Aluminum hubs, bearings, seals and 1/2-20 wheel studs included.

Calipers and friction components

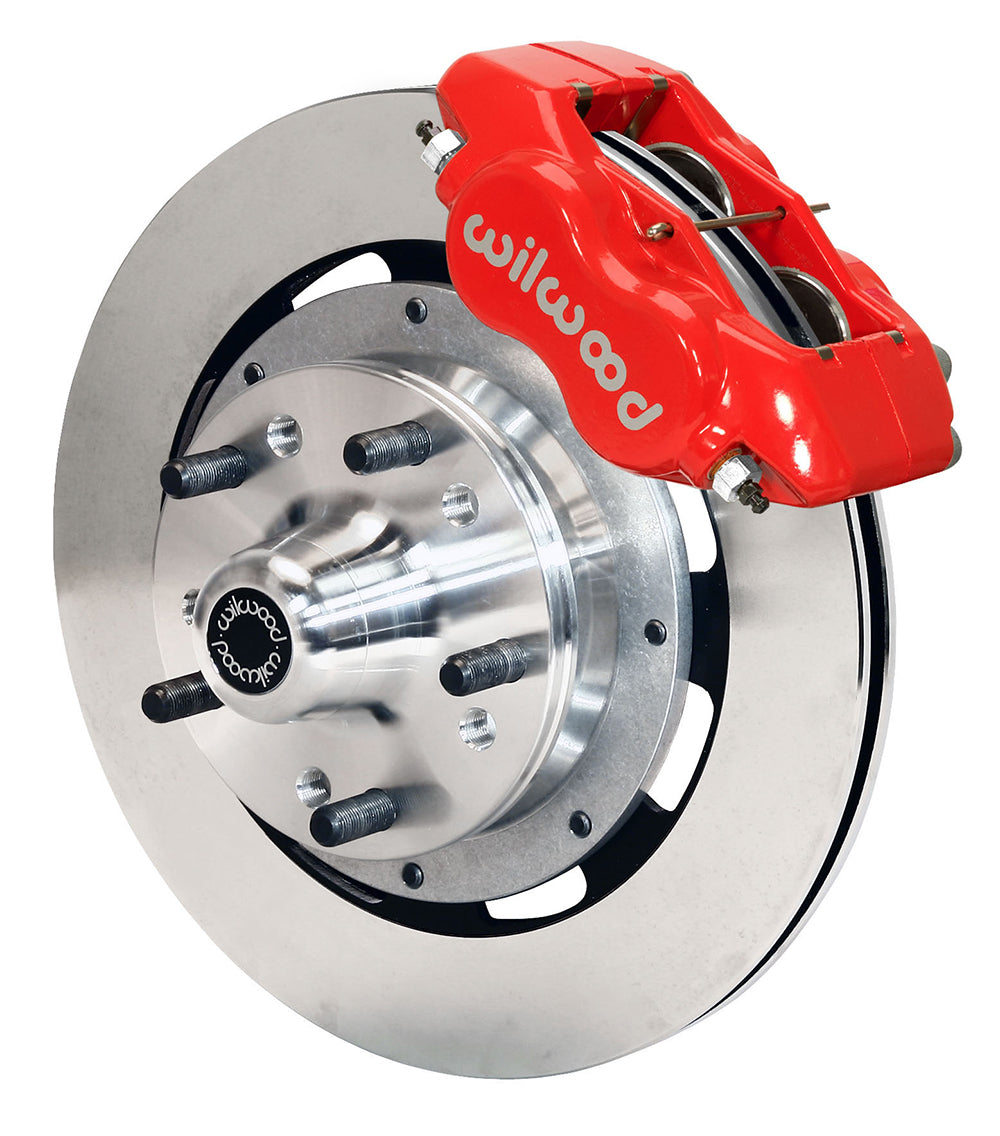

• Calipers: Forged Dynalite Internal; 4 pistons per caliper
• Caliper finish: Red Powder Coat
• Body construction: Forged aluminum
• Piston material: stainless
• Caliper mounting: lug
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.75 / 1.75 in

Rotors and mounting dimensions

• Rotors: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
• Friction faces: Plain Face
• Rotor finish: Plain
• Internal vanes: 32 straight
• Supplied hub wheel-stud patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel studs: 1/2-20 thread; supplied with the hubs

Fitment & Compatibility

For the original drum-brake spindle applications identified in the table below, including the specified Dodge and Plymouth B/E-body models. Confirm the actual year and spindle rather than substituting a later Chrysler disc spindle. DS-568 shows removal of the drum backing plates and installation of the new brackets, hubs and bearings. Select the wheel-matching hub pattern and check the 15-inch wheel template; some wheels of that diameter will not clear. The wheel contact surfaces must seat completely on the hub face. If any contact surface overhangs the hub face, DS-568 requires a separate 300-11961 steel spacer, 6.60 inches in diameter and 0.20 inch thick, between wheel and hub. Stamped steel wheels that do not overhang should use the separate 300-10716 hub shield, 6.15 inches in diameter and 0.09 inch thick, to protect the hub face. Hydraulic hoses are separate. If also changing to a two-bolt master cylinder, the listed four-bolt mounting adaptation is a separate installation requirement. Nominal minimum wheel diameter: 15 in; 381 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.

Installation documents

• Installation instructions

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance offers parts-selection support backed by more than 20 years in brake systems and restoration. Let us help review the details of your vehicle and installation.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
3. A separately selected two-bolt master cylinder requires the appropriate adapter for the vehicle's four-bolt mounting. The master cylinder and adapter are not included; the referenced adapter is not supplied by Wilwood.
4. This is a front service-brake kit. Select any rear parking-brake cable separately for the vehicle's actual rear brake system.
5. Line kit included (manufacturer): None
6. Front line-kit reference: 220-8307
