Wilwood Front FDLI Brake Upgrade for 1962–1972 Dodge / Plymouth B- and E-Body Drum Spindles, Black - Drilled/Slotted Rotors, 12.19-inch Diameter

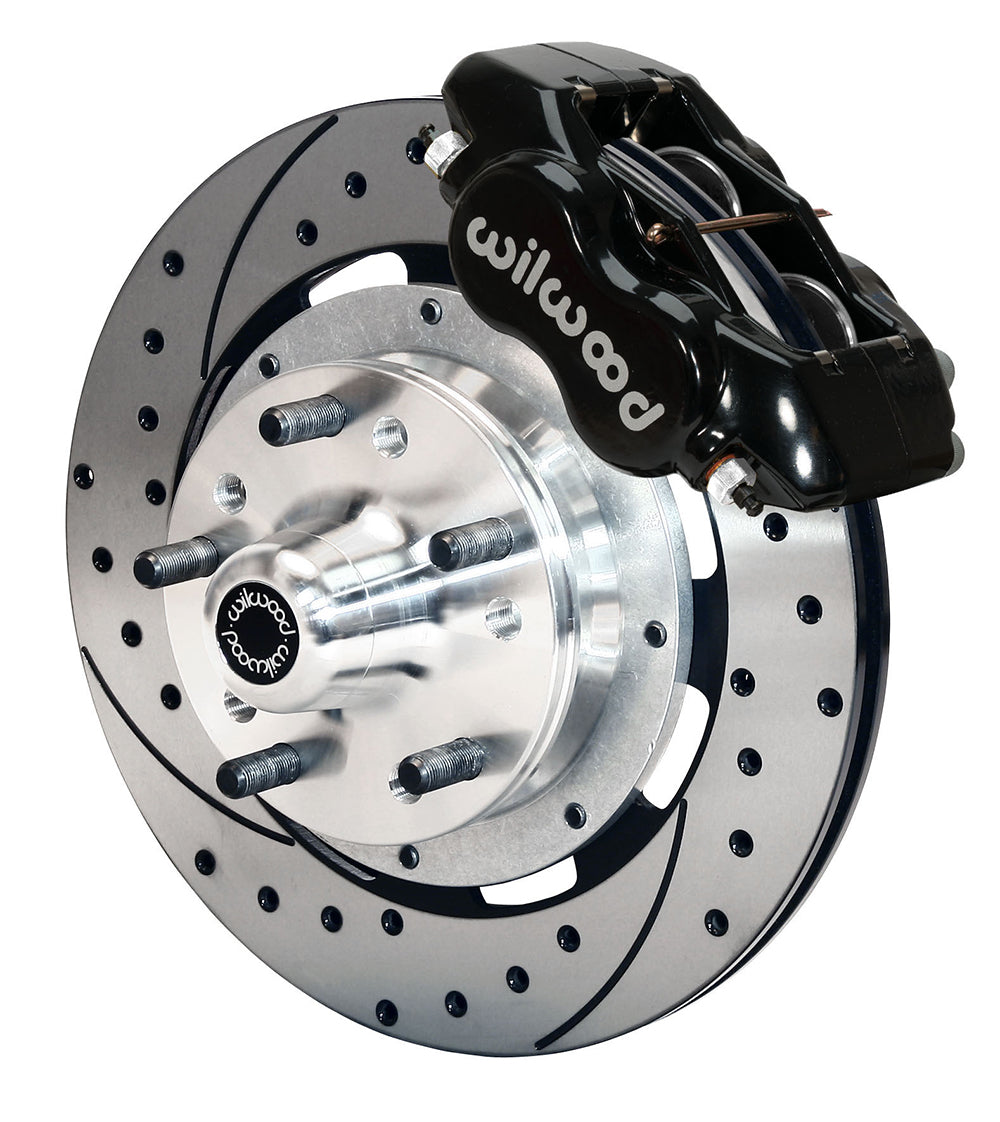

This black-caliper Mopar front conversion uses SRP drilled and slotted rotors on the supplied hub assembly. Four-piston FDLI calipers, brackets, bearings and studs are configured for the listed 1962–1972 drum-spindle applications. Wilwood Engineering designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977; its Camarillo, California operation serves motorsport, street-performance and specialized applications. The requirements of the complete brake system govern the choice of individual components.

Technical Details

Rotors and mounting dimensions

• Rotors: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
• Friction faces: SRP Drilled & Slotted
• Rotor finish: Black Electro Coat
• Internal vanes: 32 straight
• Supplied hub wheel-stud patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel studs: 1/2-20 thread; supplied with the hubs

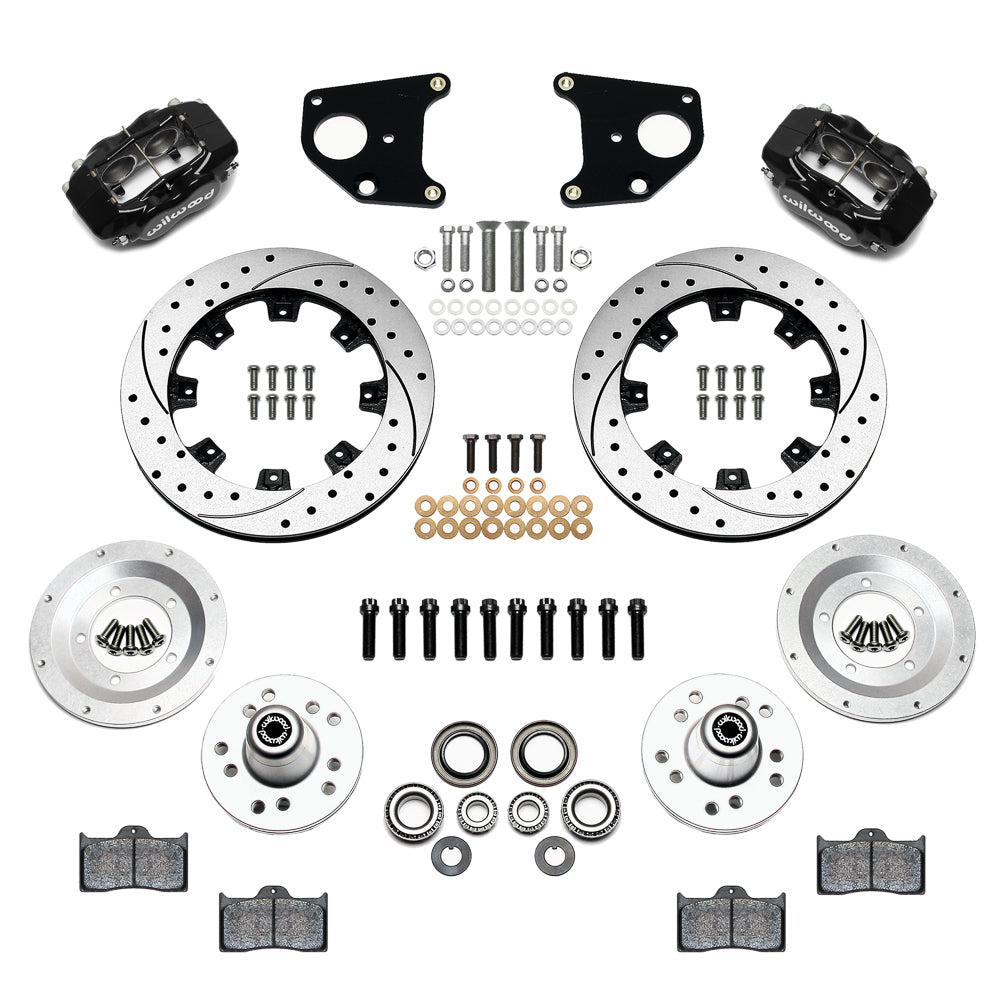

Kit contents and separate parts

• Manufacturer part number: 140-9828-D
• Supply: one kit with brake components for both sides of the front axle
• Mounting hardware: included
• Hubs: included with bearings and seals
• Spindles, master cylinder and brake booster: not included
• Hydraulic hoses: not included
• Aluminum hubs, bearings, seals and 1/2-20 wheel studs included.

Calipers and friction components

• Calipers: Forged Dynalite Internal; 4 pistons per caliper
• Caliper finish: Black Powder Coat
• Body construction: Forged aluminum
• Piston material: stainless
• Caliper mounting: lug
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.75 / 1.75 in

Fitment & Compatibility

For the original drum-brake spindle applications identified in the table below, including the specified Dodge and Plymouth B/E-body models. Confirm the actual year and spindle rather than substituting a later Chrysler disc spindle. DS-568 shows removal of the drum backing plates and installation of the new brackets, hubs and bearings. Select the wheel-matching hub pattern and check the 15-inch wheel template; some wheels of that diameter will not clear. The wheel contact surfaces must seat completely on the hub face. If any contact surface overhangs the hub face, DS-568 requires a separate 300-11961 steel spacer, 6.60 inches in diameter and 0.20 inch thick, between wheel and hub. Stamped steel wheels that do not overhang should use the separate 300-10716 hub shield, 6.15 inches in diameter and 0.09 inch thick, to protect the hub face. Hydraulic hoses are separate. If also changing to a two-bolt master cylinder, the listed four-bolt mounting adaptation is a separate installation requirement. Nominal minimum wheel diameter: 15 in; 381 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.

Installation documents

• Installation instructions
