Wilwood Front System for Mustang II (1974–1978), Pinto (1974–1980) and Bobcat (1975–1980), OE Disc Spindles: 14.00-inch Drilled/Slotted Rotors with Polished FNSL6R

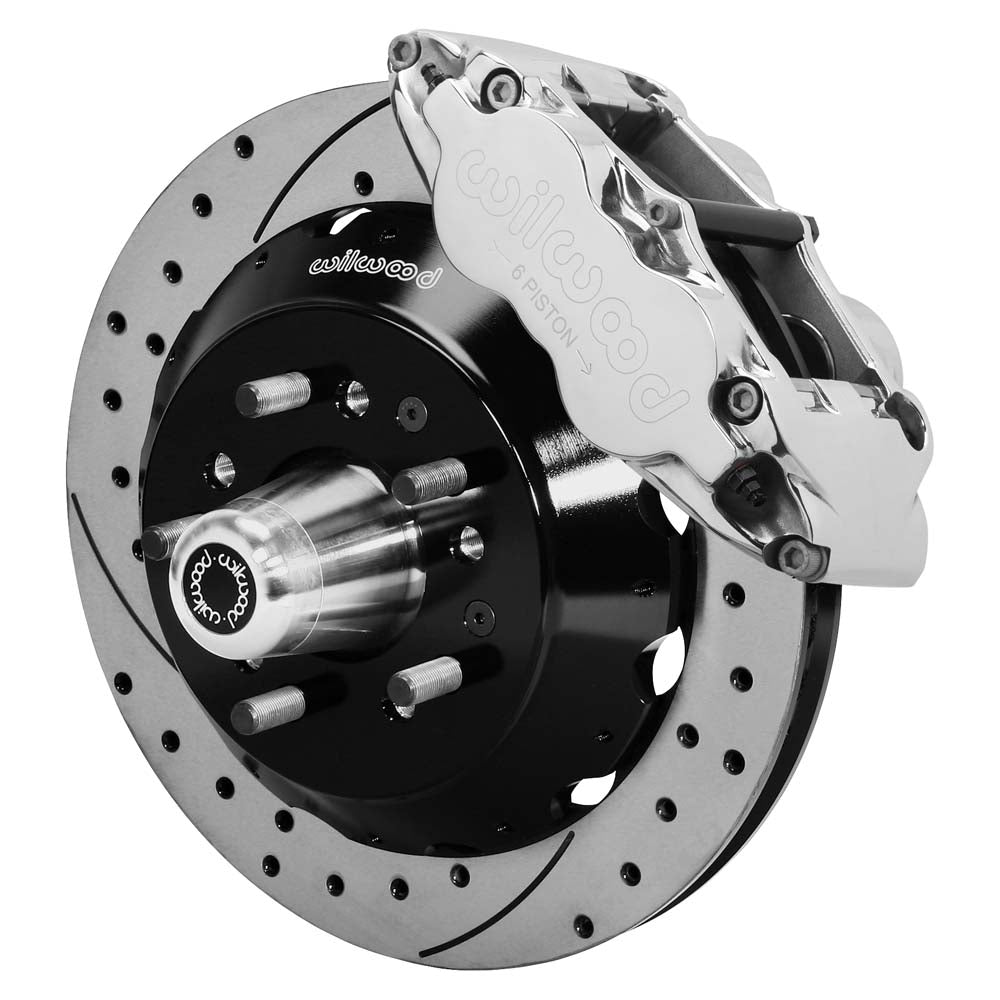

Polished six-piston calipers and 14-inch SRP rings form this front brake-and-hub system. The supplied hubs use 1/2-20 wheel studs and selectable five-lug patterns for the compatible Mustang II, Pinto and Bobcat installations. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. It designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, with calipers, brake rotors, master cylinders, valves, fittings and brake lines in its range. Every component must suit the complete brake system in which it operates.

Technical Details

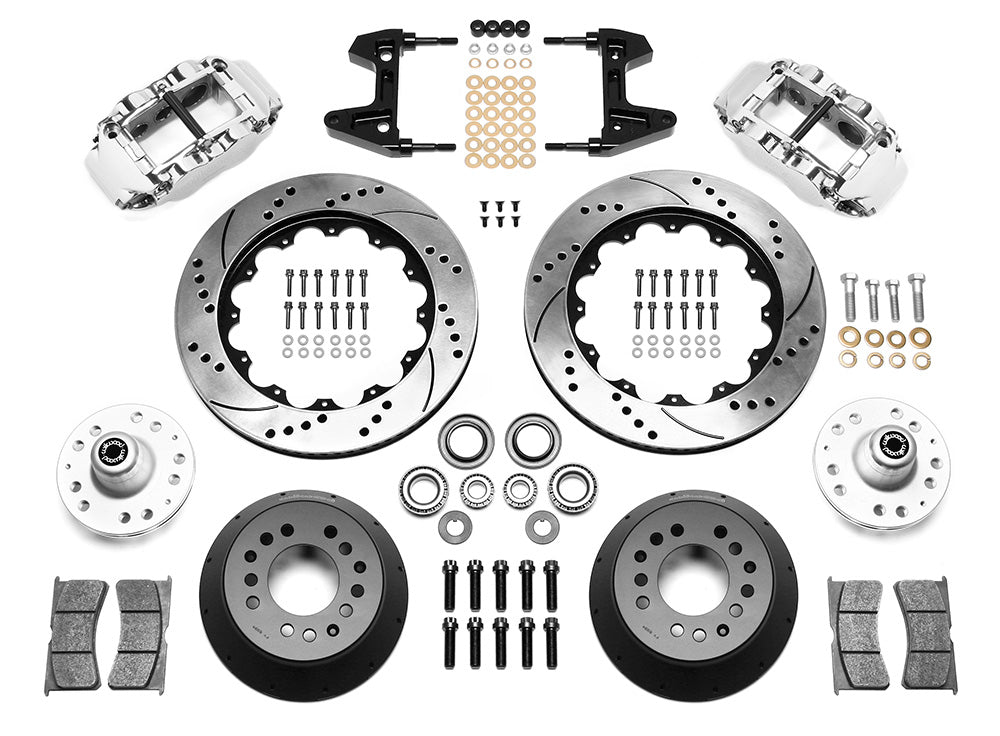

Kit contents and separate parts

• Manufacturer part number: 140-9802-DP
• Supply: one kit with brake components for both sides of the front axle
• Mounting hardware: included
• Hubs: included with bearings and seals
• Spindles, master cylinder and brake booster: not included
• Hydraulic hoses: not included
• Includes aluminum hubs, bearings, seals and 1/2-20 studs; choose 5 x 4.50 or 5 x 4.75-inch wheel pattern.

Calipers and friction components

• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper
• Caliper finish: Polished
• Body construction: Forged aluminum
• Piston material: stainless
• Caliper mounting: radial
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

Rotors and mounting dimensions

• Rotors: 14.00 in; 355.6 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
• Friction faces: SRP Drilled & Slotted
• Rotor finish: Black Electro Coat
• Internal vanes: 72 curved
• Hats: aluminum; Black E-Coat; 1.880-inch hat offset
• Supplied hub wheel-stud patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel studs: 1/2-20 thread; supplied with the hubs

Fitment & Compatibility

For the Mustang II 1974–1978, Pinto 1974–1980 and Bobcat 1975–1980 applications in the table below using original disc-brake spindles. This larger 14-inch assembly uses new aluminum hubs and the original compatible spindles. Install the included studs in the wheel-matching pattern and compare the DS-563 drawing with both wheel barrel and spokes. Brake hoses are not supplied: select the appropriate universal flexline length and fittings, including the listed 220-8307 option where its 18-inch length suits the installation. Nominal minimum wheel diameter: 18 in; 457.2 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.

Installation documents

• Installation instructions

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance offers parts-selection support backed by more than 20 years in brake systems and restoration. Let us help review the details of your vehicle and installation.

Vehicle Applications

Application Notes

1. 14" Rotor
2. Kit fits 74-80 Pinto / Mustang II original disc brake spindles only.
3. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
4. If a separate replacement master cylinder is installed, its pushrod may require modification. No master cylinder is included in this front brake kit.
5. This is a front service-brake kit. Select any rear parking-brake cable separately for the vehicle's actual rear brake system.
6. Line kit included (manufacturer): None
7. Front line-kit reference: 220-8307
