Product details

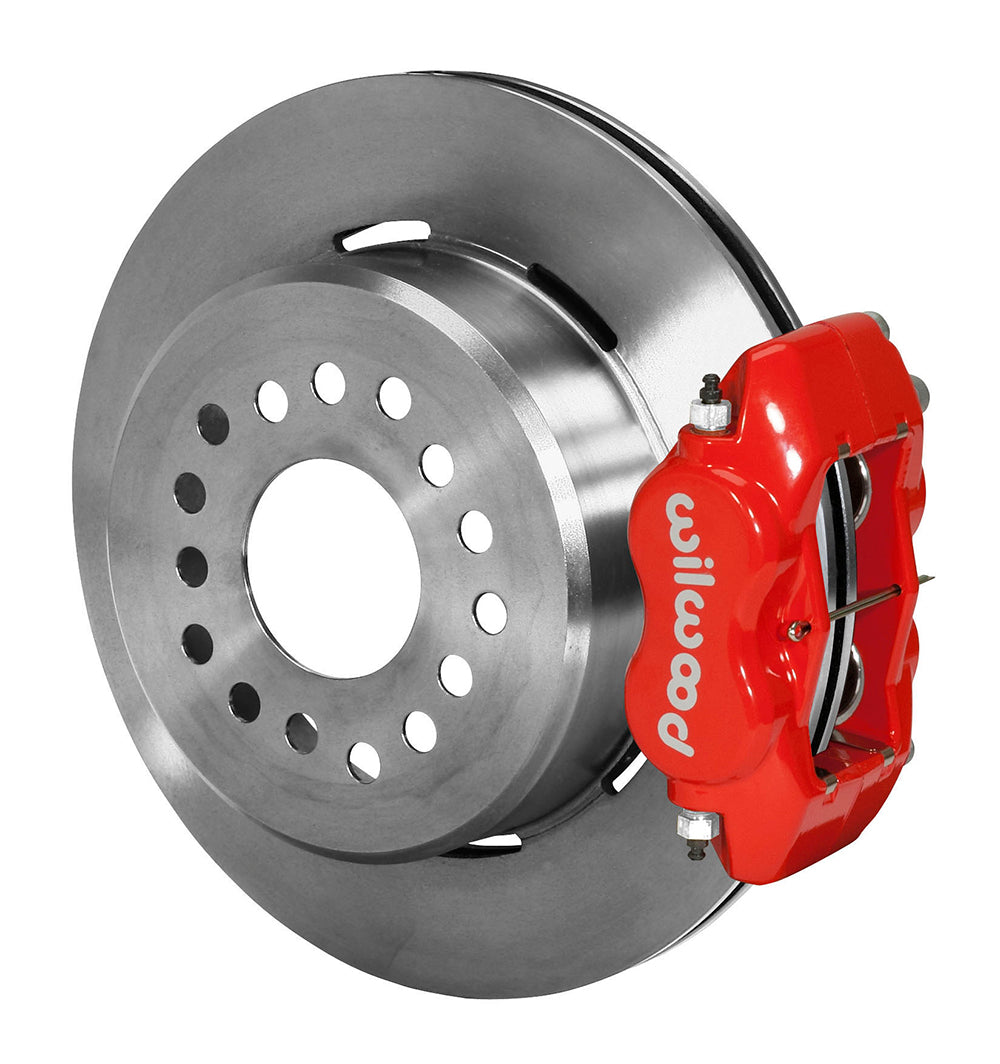

Plain vented rotors pair with red FDLI calipers in this new-style big-Ford rear package. Its forward caliper locations, supplied parking assemblies and axle-end geometry distinguish it from other kits sharing the same rotor diameter. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. The complete braking arrangement determines which individual components are appropriate.
Technical Details
Rotors and mounting dimensions
- Rotors: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
- Friction faces: Plain Face
- Rotor finish: Plain
- Internal vanes: 32 straight
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
Calipers and friction components
- Calipers: Forged Dynalite Internal; 4 pistons per caliper
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: lug
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.38 / 1.38 in

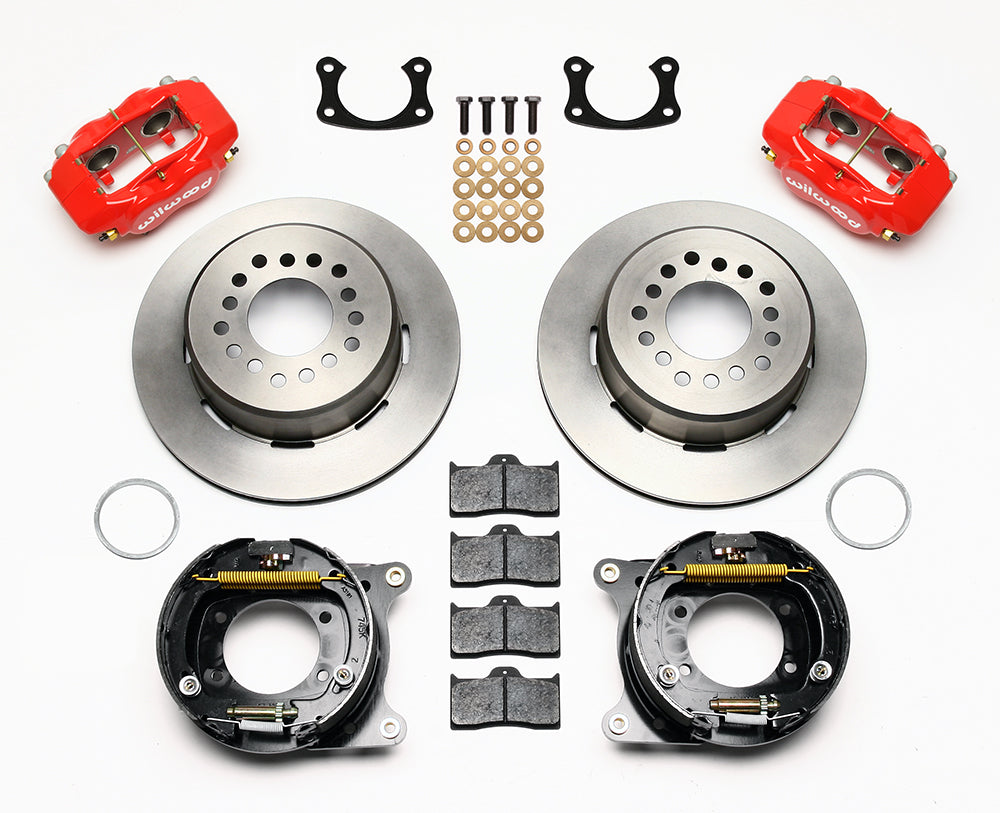

Kit contents and separate parts
- Manufacturer part number: 140-9791-R
- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Required axle housing end: Big Ford New Style
- Axle offset: 2.50 in; 63.5 mm
- Both calipers mount forward of the rear axle; internal drum parking assemblies are included.
Fitment & Compatibility
This rear-axle version places both service calipers ahead of the axle. It requires the new-style big-bearing Ford housing end and a 2.50-inch offset specified in DS-557; it is not the staggered-mount version. Confirm the actual installed axle dimensions for the Lincoln Town Car application in the table below, including bearing and flange clearance. The integrated drum parking system needs separately selected cables and clevises; universal kit 330-9371 is available. Hydraulic lines and fittings are also separate. Nominal minimum wheel diameter: 15 in; 381 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings more than 20 years of brake and restoration experience to parts selection. Contact us with the installed spindle or axle details for help matching this kit.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2, 3 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Kit contains front mount caliper brackets; calipers mount in front of axle.
- Line kit included (manufacturer): None
