Product details

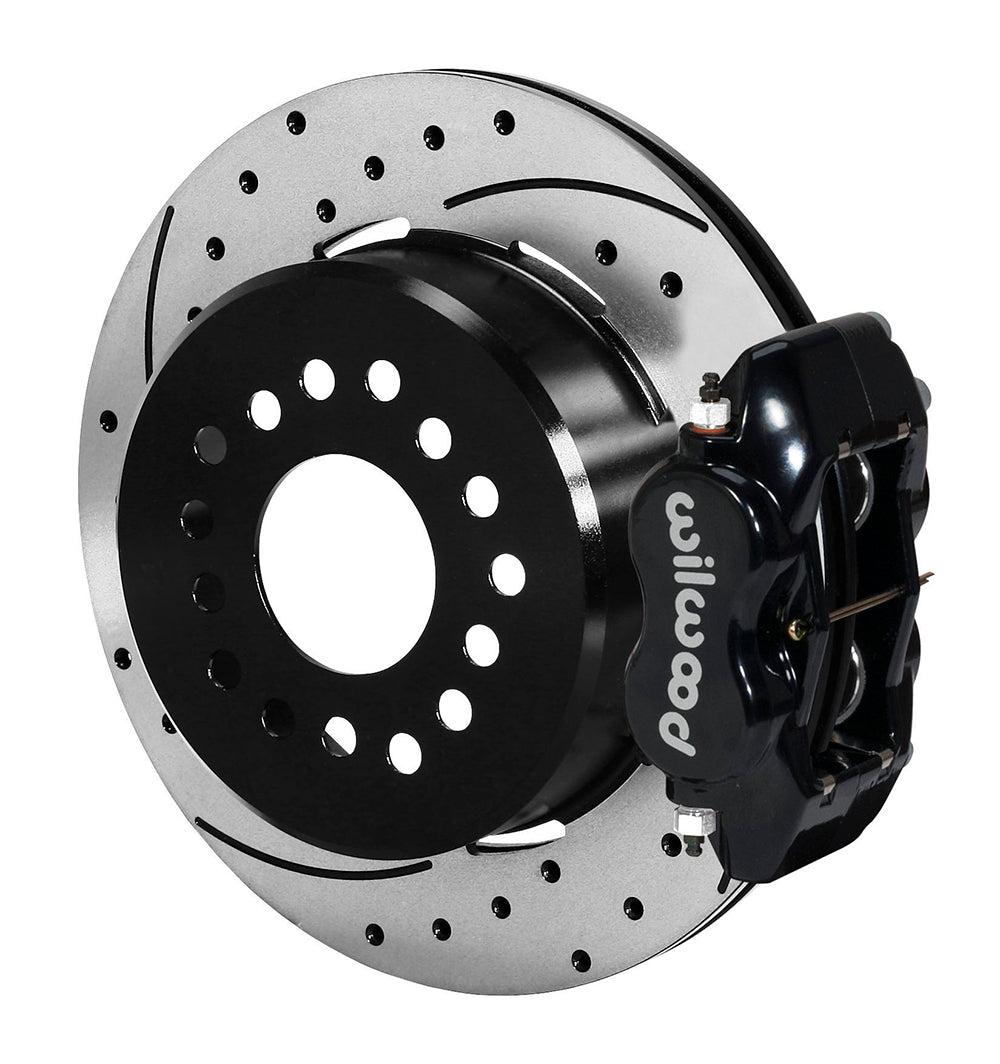

Black FDLI calipers and SRP drilled/slotted rotors form this forward-mount rear conversion. Both service calipers mount ahead of the axle on the specified new-style big-bearing Ford ends, with internal shoes providing the separate parking function. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Select the individual parts around the requirements of the entire braking system.
Technical Details
Calipers and friction components
- Calipers: Forged Dynalite Internal; 4 pistons per caliper
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: lug
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.38 / 1.38 in
Rotors and mounting dimensions
- Rotors: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 32 straight
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm

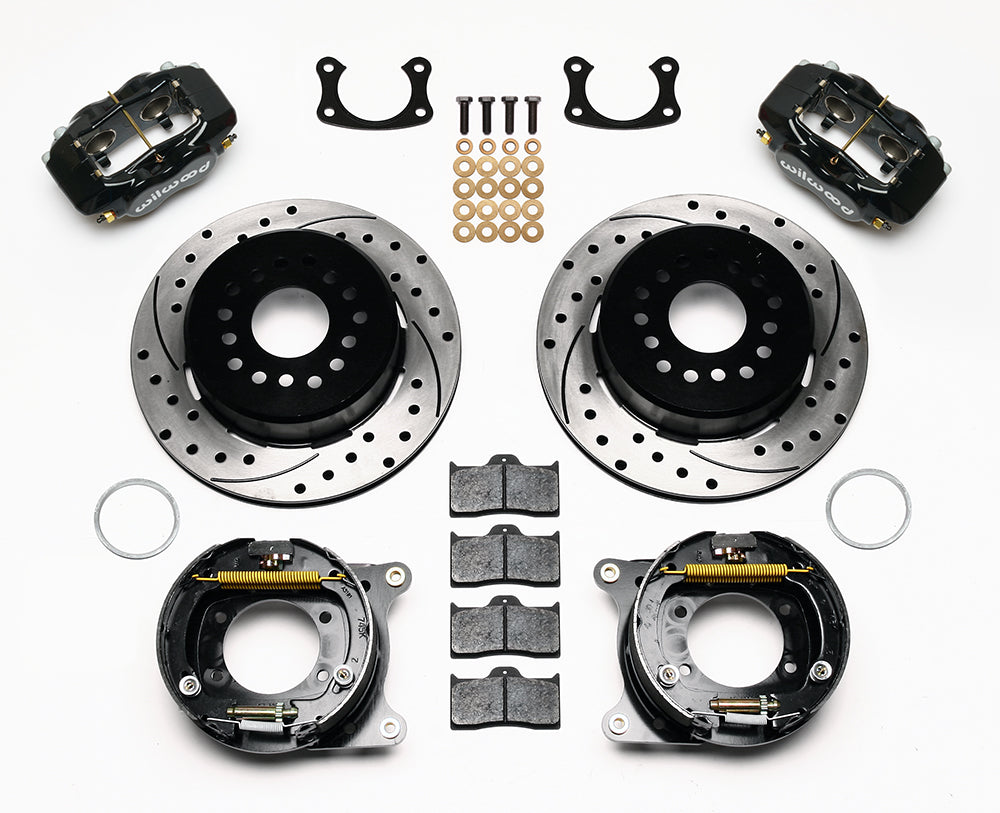

Kit contents and separate parts
- Manufacturer part number: 140-9791-D
- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Required axle housing end: Big Ford New Style
- Axle offset: 2.50 in; 63.5 mm
- Both calipers mount forward of the rear axle; internal drum parking assemblies are included.
Fitment & Compatibility
This rear-axle version places both service calipers ahead of the axle. It requires the new-style big-bearing Ford housing end and a 2.50-inch offset specified in DS-557; it is not the staggered-mount version. Confirm the actual installed axle dimensions for the Lincoln Town Car application in the table below, including bearing and flange clearance. The integrated drum parking system needs separately selected cables and clevises; universal kit 330-9371 is available. Hydraulic lines and fittings are also separate. Nominal minimum wheel diameter: 15 in; 381 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance has supported brake and restoration projects for more than 20 years. Share the vehicle and installed hardware with us for help selecting a compatible package.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2, 3 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Kit contains front mount caliper brackets; calipers mount in front of axle.
- Line kit included (manufacturer): None
