Product details

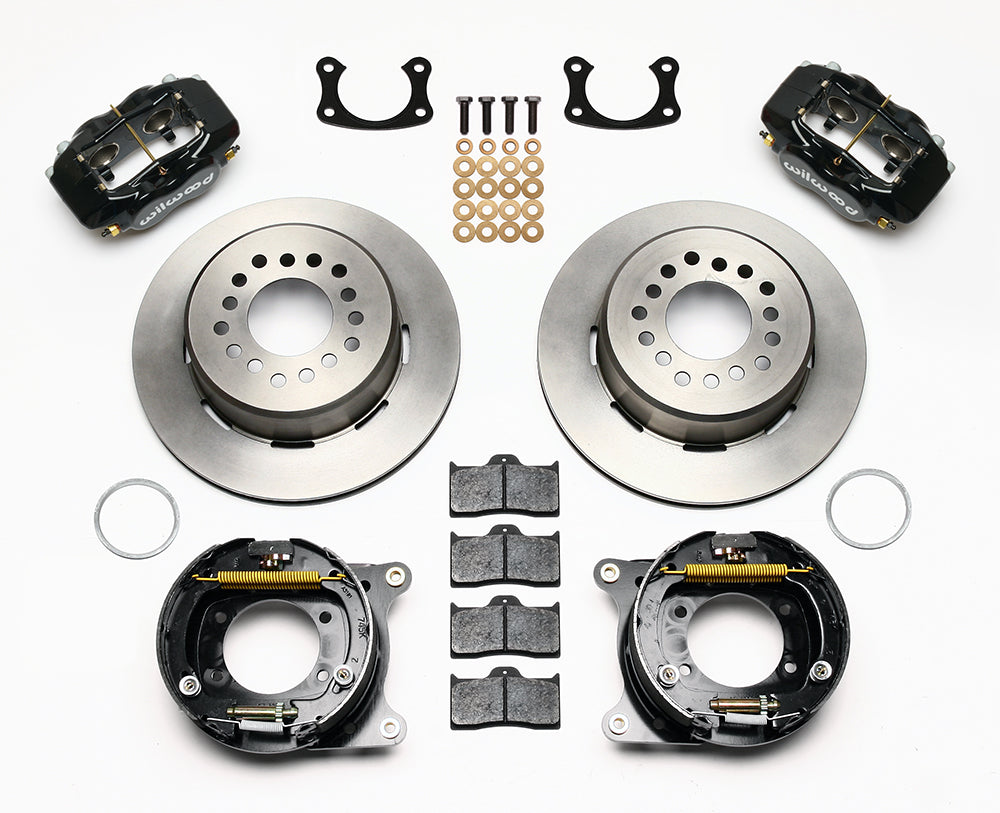

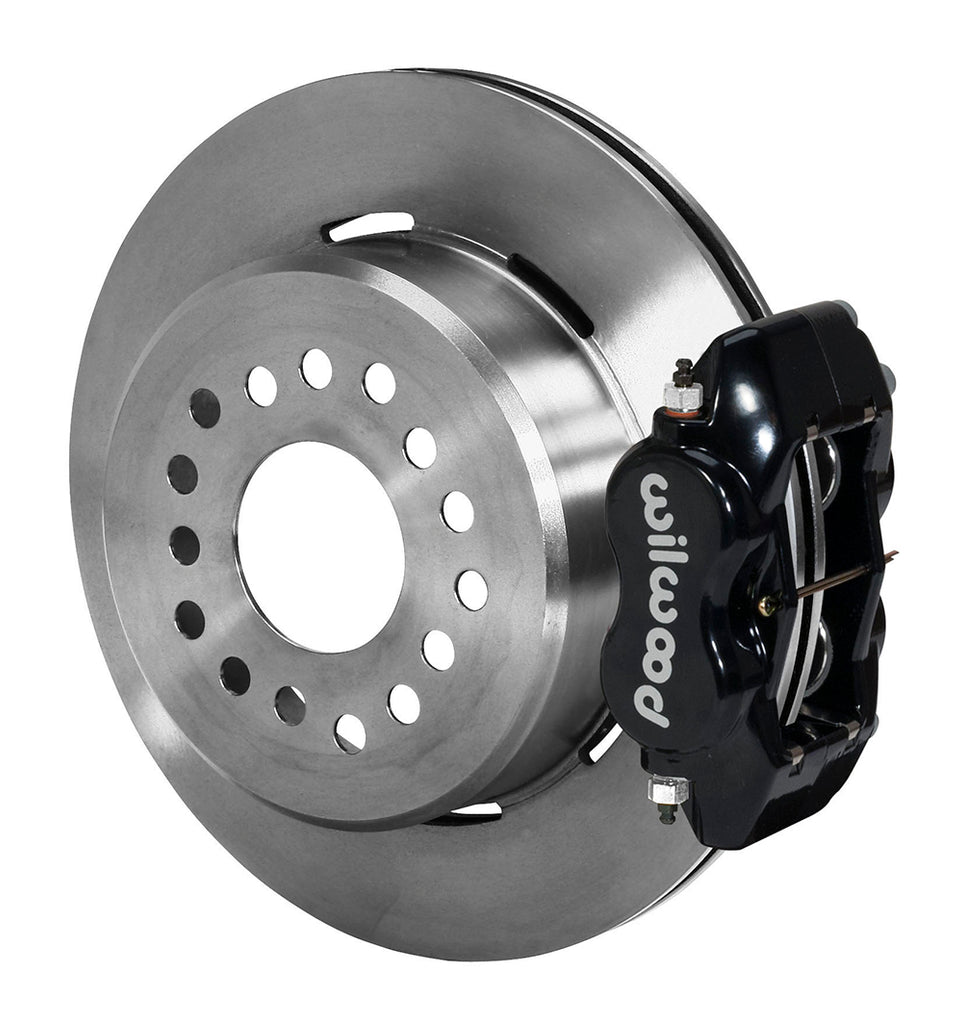

This big-Ford rear kit locates both black FDLI calipers forward of the axle, a meaningful difference from staggered-mount packages. Plain 12.19-inch rotor hats enclose the supplied internal parking shoes for the new-style 2.50-inch-offset arrangement. Wilwood Engineering designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977; its Camarillo, California operation serves motorsport, street-performance and specialized applications. Individual parts must match the complete brake system and its operating requirements.
Technical Details
Rotors and mounting dimensions
- Rotors: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
- Friction faces: Plain Face
- Rotor finish: Plain
- Internal vanes: 32 straight
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
Kit contents and separate parts
- Manufacturer part number: 140-9791
- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Required axle housing end: Big Ford New Style
- Axle offset: 2.50 in; 63.5 mm
- Both calipers mount forward of the rear axle; internal drum parking assemblies are included.
Calipers and friction components
- Calipers: Forged Dynalite Internal; 4 pistons per caliper
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: lug
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.38 / 1.38 in
Fitment & Compatibility
This rear-axle version places both service calipers ahead of the axle. It requires the new-style big-bearing Ford housing end and a 2.50-inch offset specified in DS-557; it is not the staggered-mount version. Confirm the actual installed axle dimensions for the Lincoln Town Car application in the table below, including bearing and flange clearance. The integrated drum parking system needs separately selected cables and clevises; universal kit 330-9371 is available. Hydraulic lines and fittings are also separate. Nominal minimum wheel diameter: 15 in; 381 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
With over 20 years of brake-system and restoration experience, PMB Performance can help you review the application, wheel clearance and remaining parts for the installation.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2, 3 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Kit contains front mount caliper brackets; calipers mount in front of axle.
- Line kit included (manufacturer): None
