Wilwood Front AERO6 Brake Kit for Selected 1999–2020 Six-Lug GM Trucks / SUVs with Iron Spindles - 14.25-inch Drilled/Slotted Rotors, Red

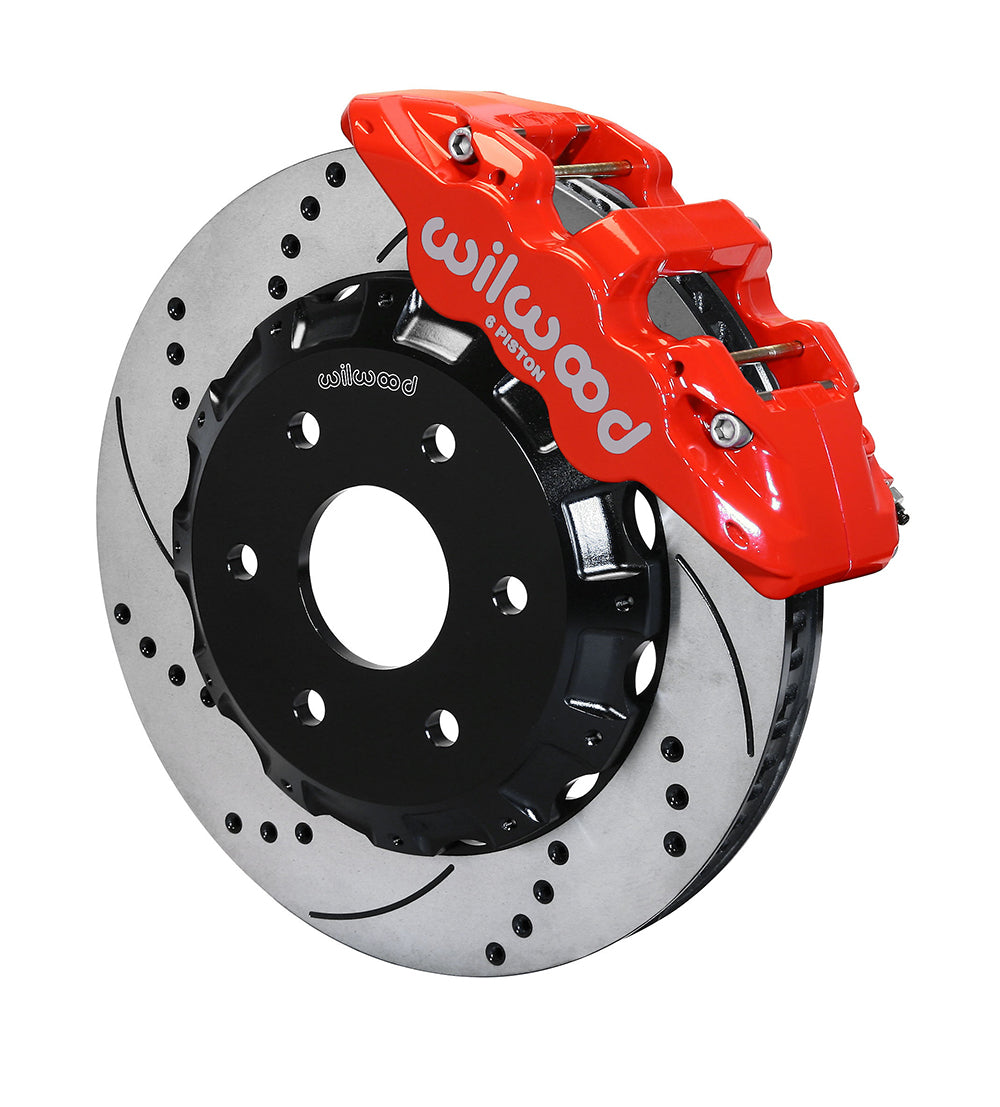

Red AERO6 calipers distinguish this SRP front brake package for the listed six-lug GM platforms. Aluminum hats hold the 14.25-inch rotor rings on the existing hubs, while spindle material and casting clearance determine bracket compatibility. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood, its range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines. Choose each component to match the complete system’s braking requirements.

Red AERO6 calipers and SRP drilled-and-slotted rotors make this the street-look version of the 14.25-inch truck kit. It ships with BP-10 pads. If the truck tows or works its brakes hard, look at 140-9789-R, which keeps the red calipers and uses GT slotted rotors with BP-20 pads. Confirm your truck has iron front spindles before ordering, because the brackets don't fit the aluminum spindle.

Technical Details

Calipers and friction components

• Calipers: AERO6; 6 pistons per caliper
• Caliper finish: Red Powder Coat
• Body construction: Forged aluminum
• Piston material: stainless
• Caliper mounting: radial
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.75 / 1.62 / 1.62 in

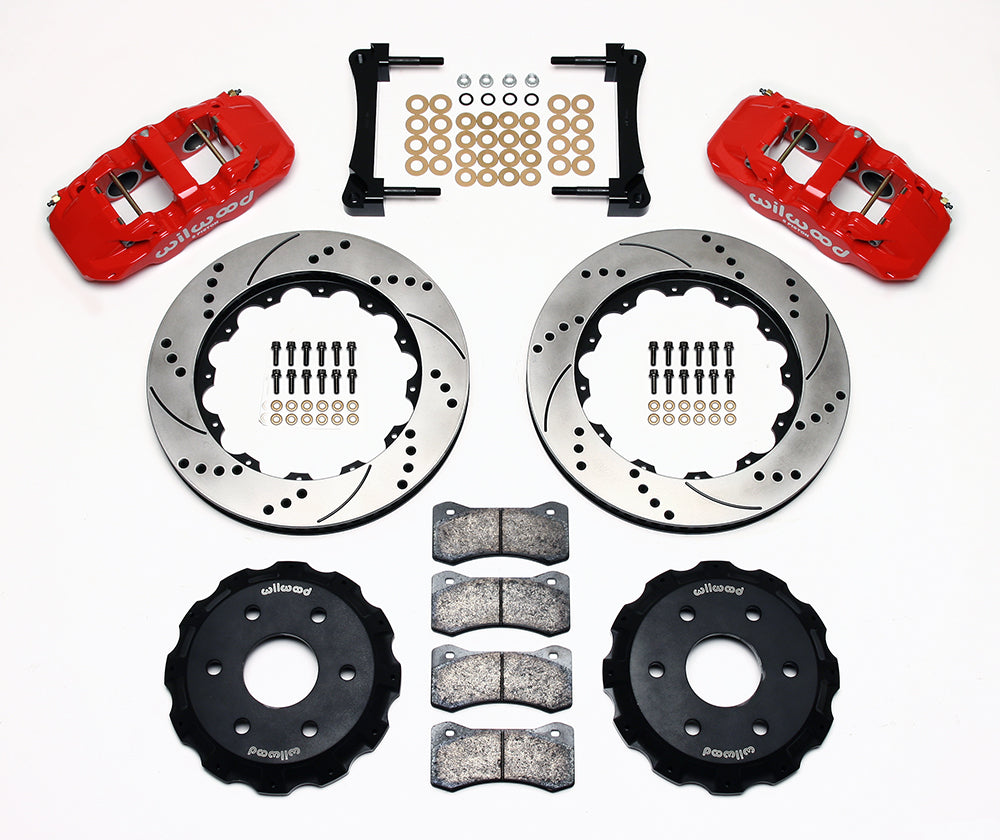

Kit contents and separate parts

• Manufacturer part number: 140-9789-DR
• Supply: one kit with brake components for both sides of the front axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Hydraulic hoses: not included
• Original six-lug hubs retained; front spindle material must be verified.

Rotors and mounting dimensions

• Rotors: 14.25 in; 361.95 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
• Friction faces: SRP Drilled & Slotted
• Rotor finish: Black Electro Coat
• Internal vanes: 72 curved
• Hats: aluminum; Black E-Coat; 0.810-inch hat offset
• Rotor/hat wheel-stud clearance patterns: 6 X 5.5 in; 6 X 139.7 mm
• Hat wheel-stud clearance holes: 0.630 in, corresponding to the listed hat patterns

Fitment & Compatibility

Requires factory cast-iron front uprights/spindles; it will not fit aluminum uprights. Check the Chevrolet, GMC and Cadillac entries and equipment details in the table below, including 2019 Silverado LD and Sierra Limited rather than the redesigned pickups. DS-569 describes the spindle casting clearance that may need modification for the bracket. Inspect that interface before starting work. The original hubs remain in use. Separate flexlines are 220-8998 for 1999–2006 and 220-10979 for 2007–2018 in the installation guide; verify later listed applications and hose routing. Nominal minimum wheel diameter: 18 in; 457.2 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.

Installation documents

• Installation instructions

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Our team at PMB Performance draws on 20+ years of brake and restoration work. We can help check the mounting requirements and component choices for your build.

Vehicle Applications

Application Notes

1. This kit will not fit vehicles equipped with aluminum spindles (uprights) and will only work with cast iron spindles. Please check your vehicle spindles before ordering or attempting installation.
2. For this 14.25-inch front kit, DS-569 specifies 220-8998 hoses for 1999–2006 applications. Verify fittings, routing and suspension travel.
3. Line kit included (manufacturer): None
4. Front line-kit reference: 220-8998, , 220-10979
5. 2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
6. For OE rears with dual piston calipers.
