Product details

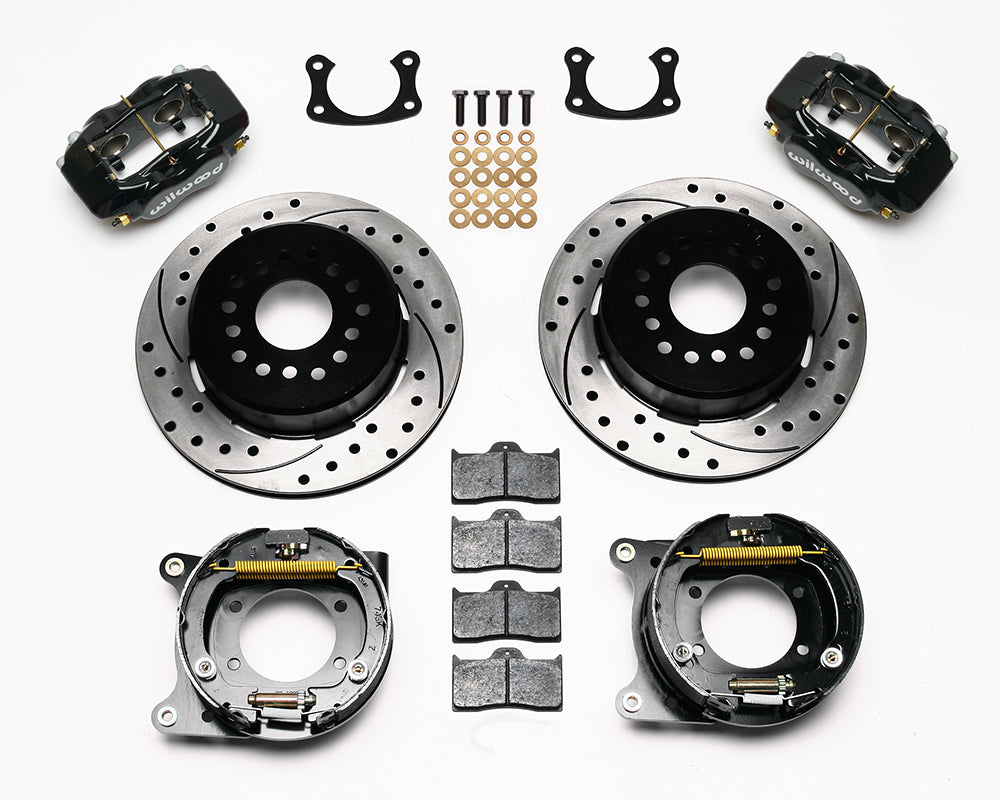

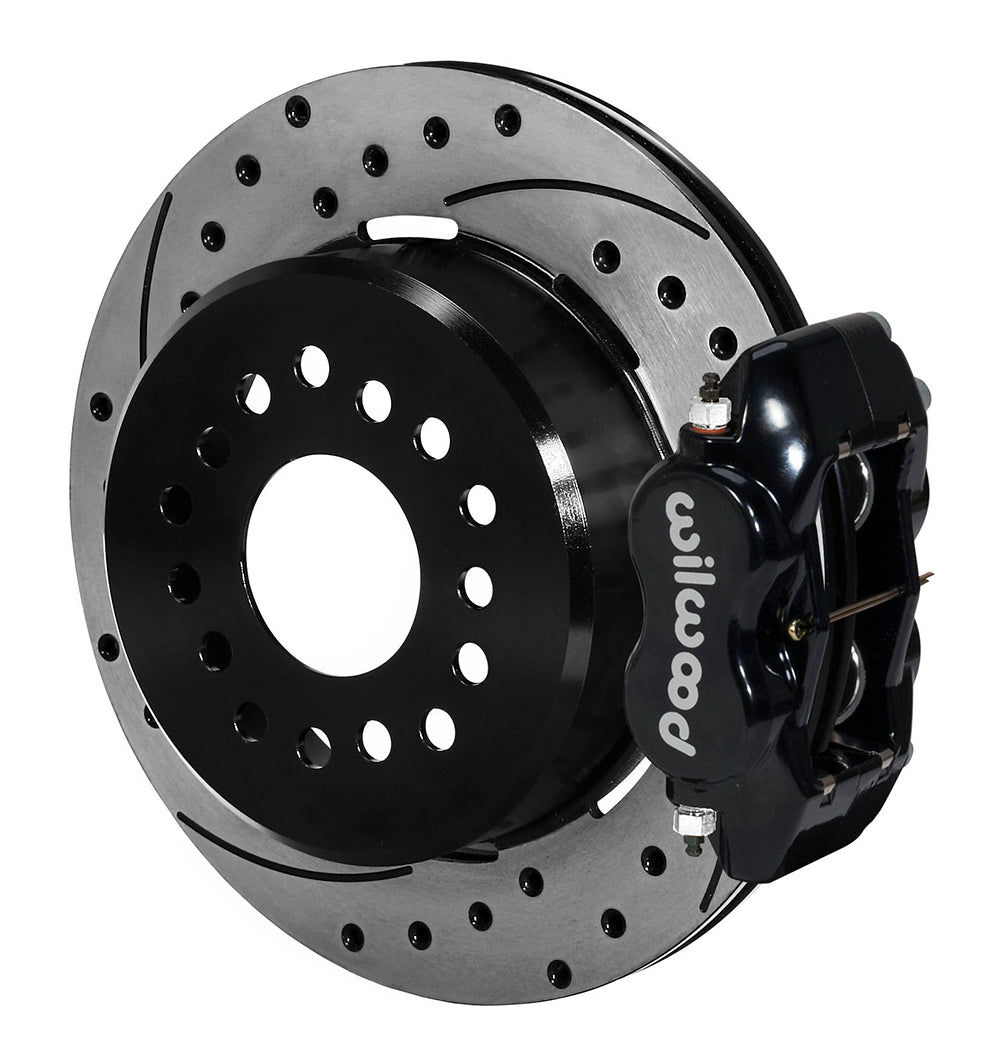

Drilled/slotted rotors and black calipers identify this staggered-mount Ford rear kit. Internal parking assemblies and bearing retainers accompany the service brakes for the new-style big-bearing housing end with a 2.50-inch axle offset. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines. The complete braking arrangement determines which individual components are appropriate.
Technical Details
Rotors and mounting dimensions
- Rotors: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 32 straight
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
Calipers and friction components
- Calipers: Forged Dynalite Internal; 4 pistons per caliper
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: lug
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.38 / 1.38 in
Kit contents and separate parts
- Manufacturer part number: 140-9560-D
- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Required axle housing end: Big Ford New Style
- Axle offset: 2.50 in; 63.5 mm
- New internal drum parking-brake assemblies and bearing retainers included.
Fitment & Compatibility
Match new-style big-bearing Ford housing ends and a 2.50-inch axle offset to DS-552. This staggered installation places the right caliper behind the axle and the left caliper in front to accommodate the intended shock arrangement. The Lincoln Town Car entry in the table below requires verification of the installed housing end and axle; model identification alone is insufficient. Confirm the bearing, rotor register, flange diameter and shock clearance. Internal parking shoes are supplied, while hoses, clevises and parking cables are separate; 330-9371 is the universal cable option. Nominal minimum wheel diameter: 15 in; 381 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings more than 20 years of brake and restoration experience to parts selection. Contact us with the installed spindle or axle details for help matching this kit.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2, 3 |
Application Notes
- Kit designed for staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is front mount.
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Line kit included (manufacturer): None
