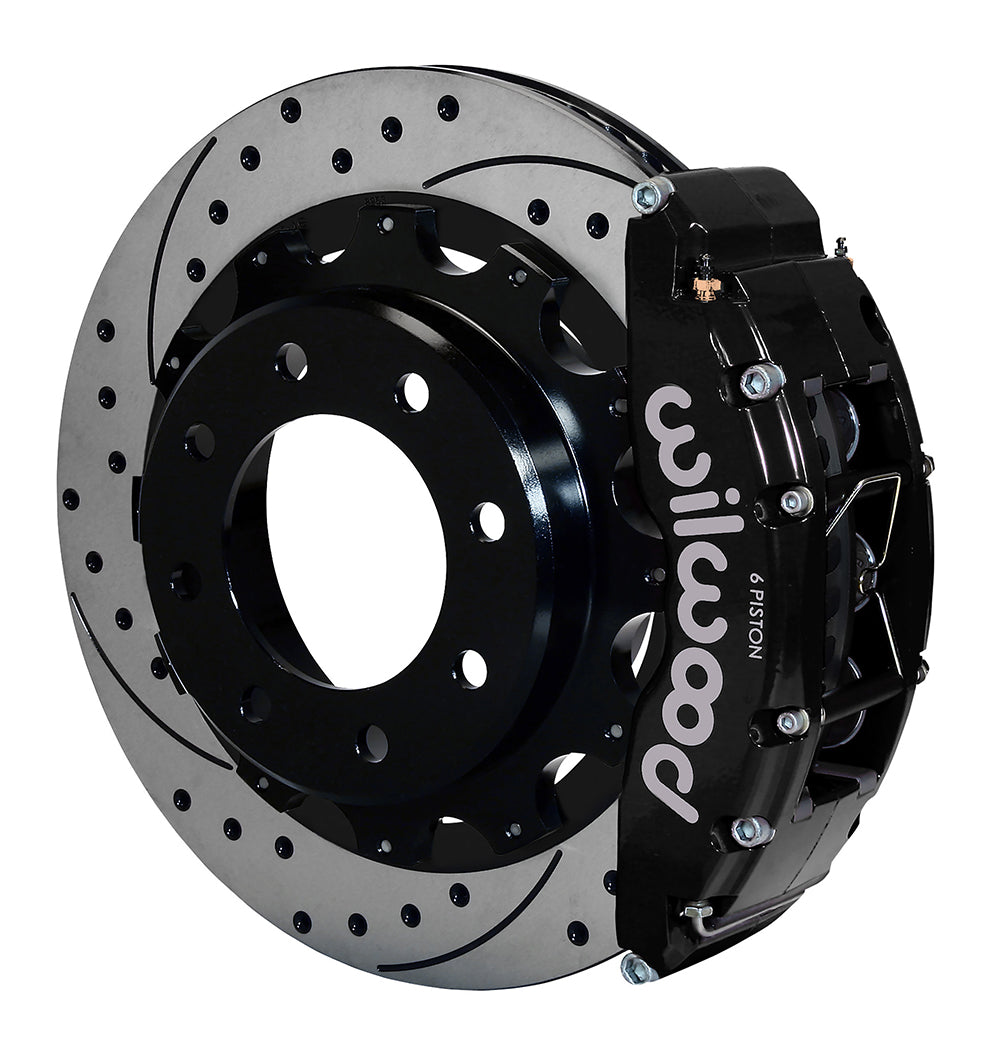

Black six-piston calipers pair with drilled/slotted rotors in this 4.84-inch-register rear package. The 16.00 x 1.38-inch rings bolt to iron parking hats configured for the specified GM eight-lug axle hardware. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood, its range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines. Select the individual parts around the requirements of the entire braking system.
Technical Details
Calipers and friction components
- Calipers: TC6; 6 pistons per caliper
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Piston material: stainless
- Caliper mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.75 / 1.38 / 1.38 in
Kit contents and separate parts
- Manufacturer part number: 140-9406-D

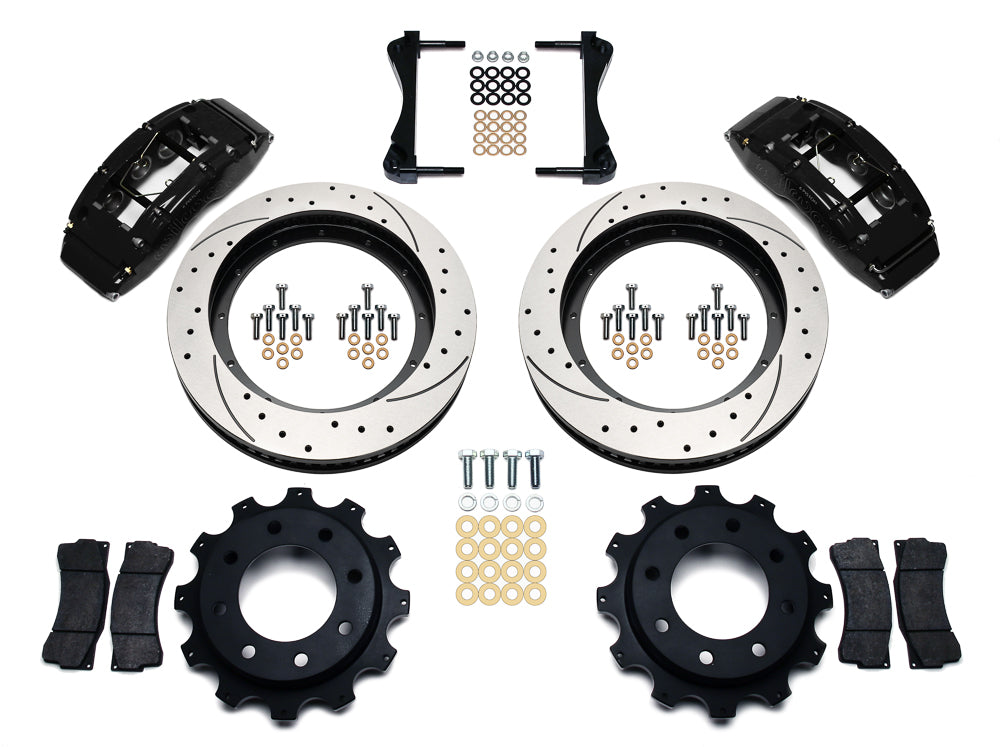

- Supply: one kit with brake components for both sides of the rear axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Hydraulic hoses: not included
- Rear hats retain OE parking-brake hardware and require the 4.84-inch register.
Rotors and mounting dimensions
- Rotors: 16.00 in; 406.4 mm diameter x 1.38 in; 35.05 mm thick; vented Iron
- Friction faces: SRP Drilled & Slotted
- Rotor finish: Black Electro Coat
- Internal vanes: 72 staggered
- Hats: iron; Black E-Coat; 1.910-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 8 x 6.5 in; 8 x 165.1 mm
- Hat wheel-stud clearance holes: 0.640 in, corresponding to the listed hat patterns
Fitment & Compatibility
Only axles with a 4.84-inch center register match these rear rotor hats. Use the table below to identify the listed Silverado/Sierra 2500 and 2500HD, 3500 single-rear-wheel, Avalanche 2500 and Suburban/Yukon XL 2500 configurations. Retain the factory parking mechanism and verify the eight-lug hub before installation. DS-560 lists separate rear hoses 220-9811 for 1999–2006 and 220-18649 for 2007–2011; later listed applications require connection and routing confirmation. A 4.63-inch axle register needs a different kit. Nominal minimum wheel diameter: 20 in; 508 mm. Compare the actual wheel barrel and spokes with the linked clearance drawing; diameter alone does not establish fit.
Installation documents
